Mounting technique

This product does not ship with mounting accessories. Only use commercially manufactured mounting accessories which meet the
product specifications.
• Use a professional technician to install the display.
• Mount the display to a solid wall or a stable horizontal surface.
• Chose a mounting point which will protect the display from environmental hazards such as heavy dust, insects, condensation and
other moisture, as well as strong electromagnetic fields.
• Install the display near an easily accessible AC power outlet.
• Use only properly-rated wall and stand mounting hardware that meets the product specifications. The warranty does not cover
damage caused by use of improperly-rated mounting hardware or from improper installation.
• After you remove the display from its carton and before you install it, always place the display front screen side down on a
clean, cushioned surface, to prevent damage to the screen surface.
• The mounting means should be strong enough to bear the weight of the display:
• For 55" displays, use only metric 6 (3.505 mm) screws; for 65", 75" and 86" displays, use only metric 8 (12 mm) screws
when you mount the display to a wall. Use spring washers to prevent the screws from coming loose.
• The mounting interface should comply with the UL1678 standard in North America.
• Maintain a distance of at least 2" (5 cm) between the display and the wall, if the display is installed against the wall; this
distance provides adequate ventilation.

Install the OPS PC module (Mondopad Ultra, Launch and Core/PC)

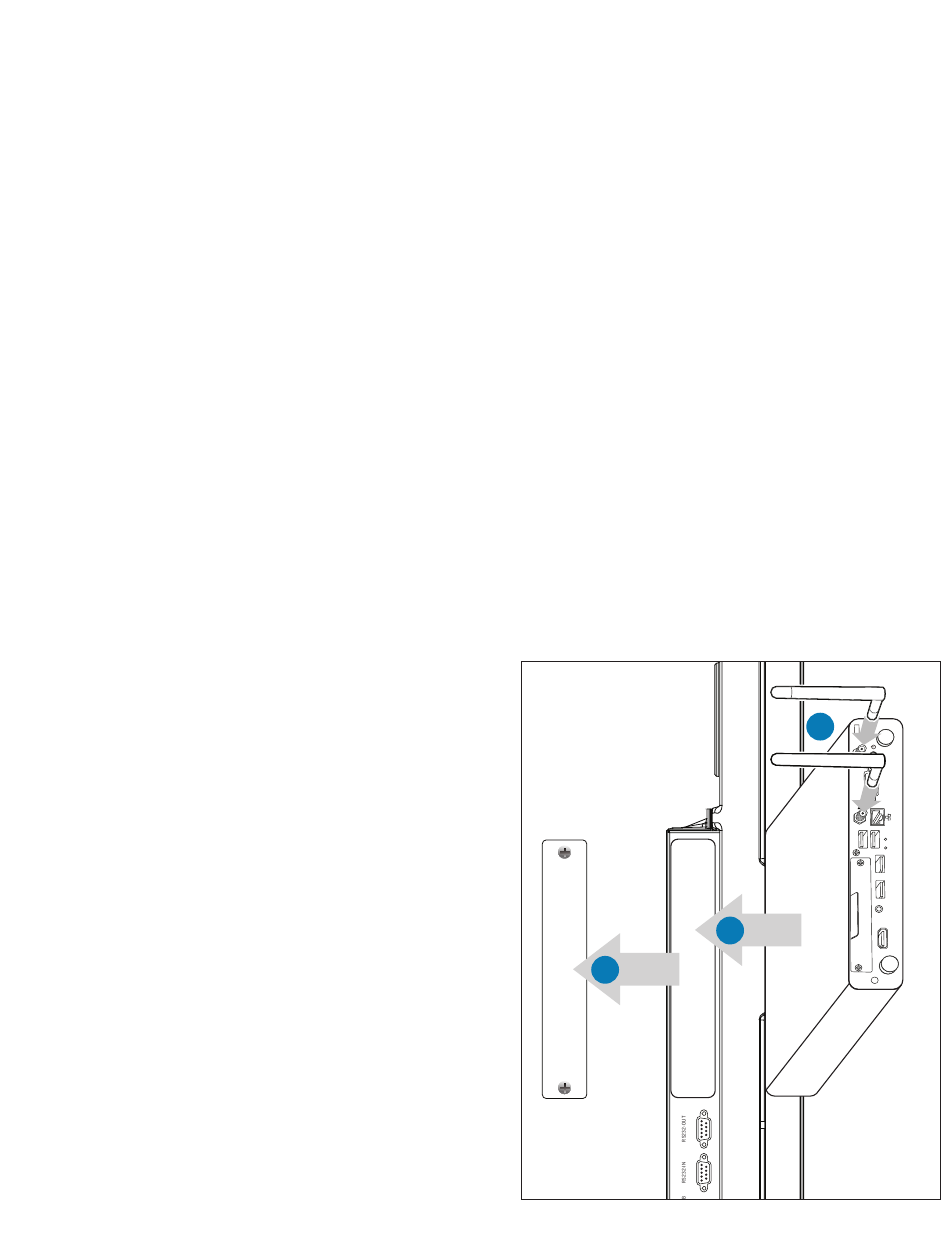

1) Remove the PC cover plate on the side panel by removing the two
screws (1).
2) Insert the PC into the slot with an orientation as shown in (2).
3) Attach the PC using the two screws you removed in step 1.
4) Install the two antennas (screw on) per (3).

SET UP

Page 9 Mondopad (Ultra, Launch, Core/PC, Core) and JTouch Hardware Guide
2
1
3
