Part Applications
• Round bars / handle bars / Highway Bars
• Diameters of 7⁄8in. - 1
⁄
3
16

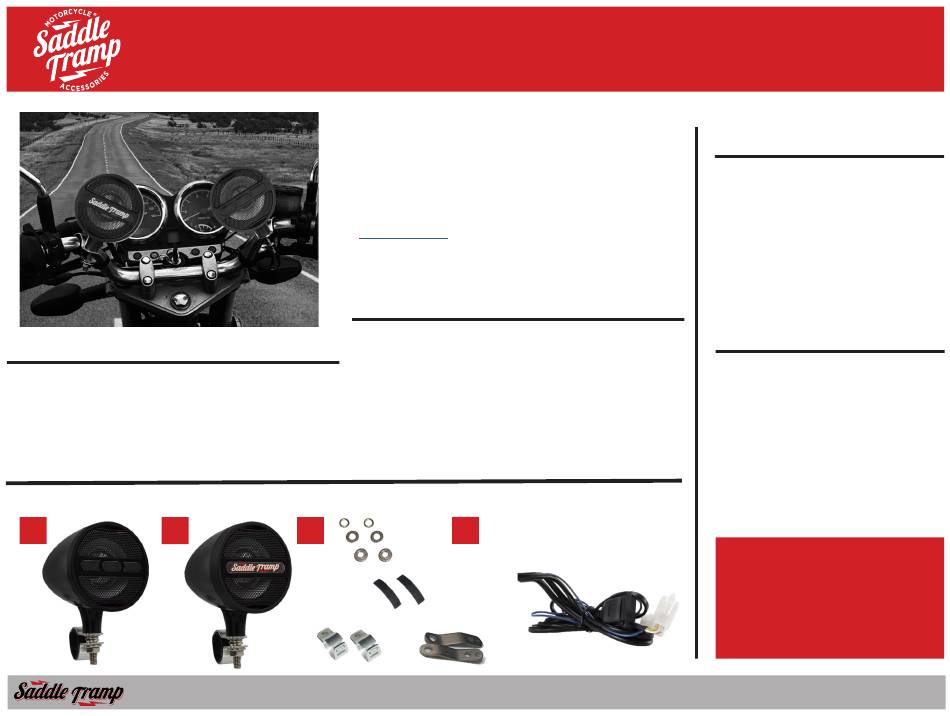

Part Components
A) Main Speaker B) Speaker pod C) Clamps, Mirror mounts, Nut, Washer, Rubber Strips
A
B
Motorcycle Accessories
Universal
Bluetooth Speakers
Visit
MetraPowerSports.com
date vehicle specific applications.
Product Features
• 3 in. Metal construction weather-proof speakers
• 20w x 2 Power output
• Bluetooth audio streaming
in. (22-30mm)
• FM Tuner
• USB supports Flash drive/MP3/ 1.0A charging
C
MetraPowerSports.com
Motorcycle Handlebar
for more detailed information about the product and up-to-
D
©COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
BC-BTHBSP
INSTALLATION INSTRUCTIONS
#MetraPowerSports
TABLE OF CONTENTS
Installation...................................................2
Wiring...........................................................3
Menu Operation.......................................4-6
Specifications...............................................7
TOOLS REQUIRED
• Wire stripper
• 13mm Wrench
• Tape
• Digital Multi-meter
• Cutter
Attention!
We recommended to disconnect
the vehicle battery prior to installation.
When testing the aftermarket equipment,
ensure that all factory equipment is connected
before cycling the key to ignition.
REV. 08/20/2019 INSTBC-BTHBS
Advertisement
Table of Contents
Related Manuals for Metra Electronics Saddle Tramp BC-BTHBSP
Summary of Contents for Metra Electronics Saddle Tramp BC-BTHBSP
- Page 1 Attention! We recommended to disconnect the vehicle battery prior to installation. When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Motorcycle Accessories MetraPowerSports.com ©COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 08/20/2019 INSTBC-BTHBS...
-
Page 2: Installation
INSTALLATION Bar Mounting • Use a 13mm socket or box wrench to remove the (2) nuts that hold the 2 piece clamps together. (Figure A) • Adjust the clamp for the appropriate bar diameter, place the rubber protection strip around the bar in the location you want to mount the clamps. -
Page 3: Wire Connections
INSTALLATION Wire Connections Red Wire • It is recommended to connect this wire to the vehicles +12v accessory or ignition circuit. Black Wire • It is recommended the this connect this wire to the chassis ground or the - negative terminal of the vehicles battery. Blue Wire •... -
Page 4: Operation
OPERATION On / Off Button Power • A short press of the on/off button ( ) and the BC-BTHBS will power on,it will announce the current source mode. i.e. FM, USB, Bluetoth. • A long press of the on/off button ( ) and the BC-BTHBS will power off, it will also announce it is powering off. - Page 5 OPERATION General Previous / Volume down |◄◄/VOL– FM mode | ◄◄ /VOL– • A Short press of seeks down to the next available channel. | ◄◄ /VOL– • Long press of key will reduce the volume. BT, USB mode | ◄◄ /VOL– •...
-
Page 6: Bluetooth Pairing
OPERATION Bluetooth Bluetooth Pairing • After the BC-BTHBSP is powered on, enter Bluetooth mode. • Open the Bluetooth menu of the device; search for BC-BTHBS and select. • The password for pairing is “0000”, after the pairing is successful, the BT- BTHBS will announce “DEVICE IS CONNECTED”;... -
Page 7: Specifications
SPECIFICATIONS Frequency range: 88.0 - 108.0 MHz Intermediate frequency: 10. 7 MHz SNR: 40dB Noise sensitivity ≤ 37dB MEDIA PLAYER SNR: 40dB Channel isolation (at 1 KHz): 23dB Harmonic distortion (at 1 KHz) ≤ 5% Frequency response: l00Hz - l0KHz ±6dB Power amplifier Output: Speaker output Speaker impedance: 4 - 8Ω... -
Page 8: Installation Instructions
Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra Recommends MECP certified technicians Motorcycle Accessories MetraPowerSports.com ©COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 08/20/2019 INSTBC-BTHBS...
