INSTALLATION INSTRUCTIONS FOR PART 99-9600
Harley-Davidson 1998-2013
KIT FEATURES
• ISO DIN radio provision
• Pre-wired ASWC-1 harness included
is sold seperately, for retention of handlebar controls)

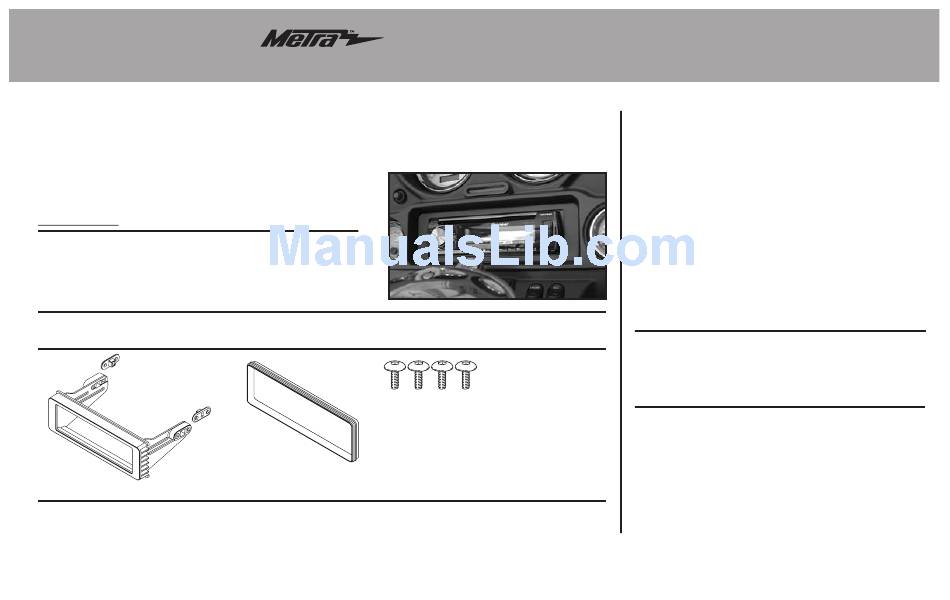

KIT COMPONENTS
• A) Radio housing • B) Rubber gasket • C) (4) 1/2" long button-head cap screws
• D) Harness (not shown)
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included
Antenna Adapter: • Not required
APPLICATIONS
(FL models with fairings)
99-9600
(Axxess ASWC-1
B
C
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench (T-25, T-27, 6mm or 3/16 hex)
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-9600
Summary of Contents for Metra Electronics 99-9600
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-9600 APPLICATIONS Harley-Davidson 1998-2013 (FL models with fairings) 99-9600 KIT FEATURES • ISO DIN radio provision • Pre-wired ASWC-1 harness included (Axxess ASWC-1 is sold seperately, for retention of handlebar controls) KIT COMPONENTS • A) Radio housing • B) Rubber gasket • C) (4) 1/2” long button-head cap screws TOOLS REQUIRED • D) Harness (not shown) • Panel removal tool • Phillips screwdriver • Socket wrench (T-25, T-27, 6mm or 3/16 hex) CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation.
- Page 2 99-9600 Fairing Disassembly FLH/Batwing models: 1. Cover the front fender. 2. Remove (2) T-27 Torx bolts from inner fairing (under mirrors) (Figure A, step 2) Step 4 3. Remove (2) T-27 Torx bolts from outer edges of inner fairing near the fork tubes (facing forward) (Figure A, step 3) 4. Remove (3) T-27 Torx bolts from bottom edge of windshield. (Figure A, step 4) NOTE: Windshield and fairing will be loose once these screws are removed. Use extreme caution not to damage fairing or windshield.
- Page 3 99-9600 Fairing Disassembly FLH/Batwing models: (cont.) 6. Lift away and unplug headlight to remove outer fairing. (Figure B) 7. Extract (2) 3/16” Allen bolts from each side of the radio housing. (Figure C) 8. Remove the factory radio. (Figure B) (Figure C)
- Page 4 99-9600 Fairing Disassembly Roadglide/Sharknose models 1. Loosen (6) T-25 Torx bolts from Step 1 Step 1 bottom, middle and top of left and right sides of the inner fairing. ( Figure A) (Figure A)
- Page 5 99-9600 Fairing Disassembly Roadglide/Sharknose models (cont.) 2. Use a 1/2” socket or box wrench to remove the (2) acorn nuts that hold each turn signal at the lower fairing. Let the signals hang loose. (Figure B) 3. Lift away the fairing, unplug the headlights and remove. 4. Remove (2) 3/16” Allen bolts from each side of the radio housing. (Figure C) (Figure B) (Figure C)
- Page 6 Kit Assembly 99-9600 ISO DIN radio provision 1. Slide the radio into radio housing Optional and secure with screws supplied spacers if with the radio. (Figure A) needed 2. Slide the rubber gasket over the front edge of the radio housing. (Figure A) 3. Insert the radio and kit assembly into the factory radio opening from the back side of the inner fairing. (Figure B) 4. Secure with the factory hardware, or the included button-head screws. (Figure B) 5. Locate the factory wiring harness (Figure A) (Figure B) and antenna plug in the dash. Metra recommends using the proper mating adapters. Use the included wiring harness. The AXXESS ASWC-1 interface is sold separately for retention of factory handlebar controls.
- Page 7 • The 12-pin harness is to be used in conjunction • Connect the White wire to the left front with the optional ASWC-1 (not included) to retain positive speaker output. steering wheel controls. If the ASWC-1 is not • Connect the White/Black wire to the left being used, disregard this harness. If it will be front negative speaker output. used, please refer to the ASWC-1 instructions for Connect Pink/White radio connections and programming. wire (99-9600) to the • Connect the Gray wire to the right front Pink/White wire from factory harness positive speaker output. Figure A • Connect the Gray/Black wire to the right front negative speaker output. (b) to the vehicle: • If the ASWC-1 (sold separately) is to be used, connect the Pink/White wire to the Pink/White wire from the vehicle. This wire...
