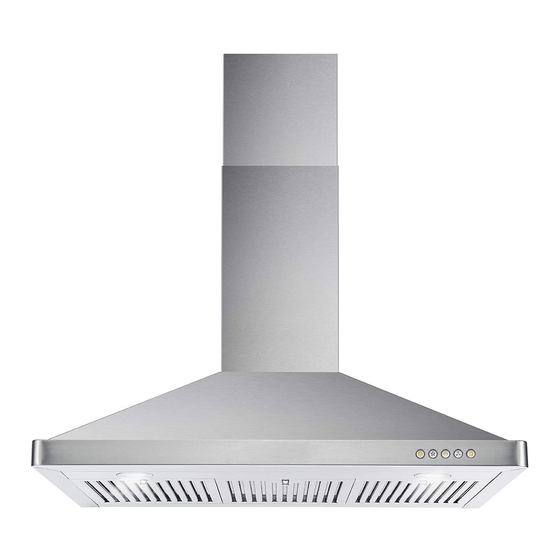

Cosmo COS-63175 Installation Manual & User Manual
Wall mount range hood
Hide thumbs
Also See for COS-63175:
- Installation instructions and use & care manual (38 pages) ,
- Installation manual & user manual (19 pages) ,
- Quick start manual (17 pages)
Advertisement
Quick Links

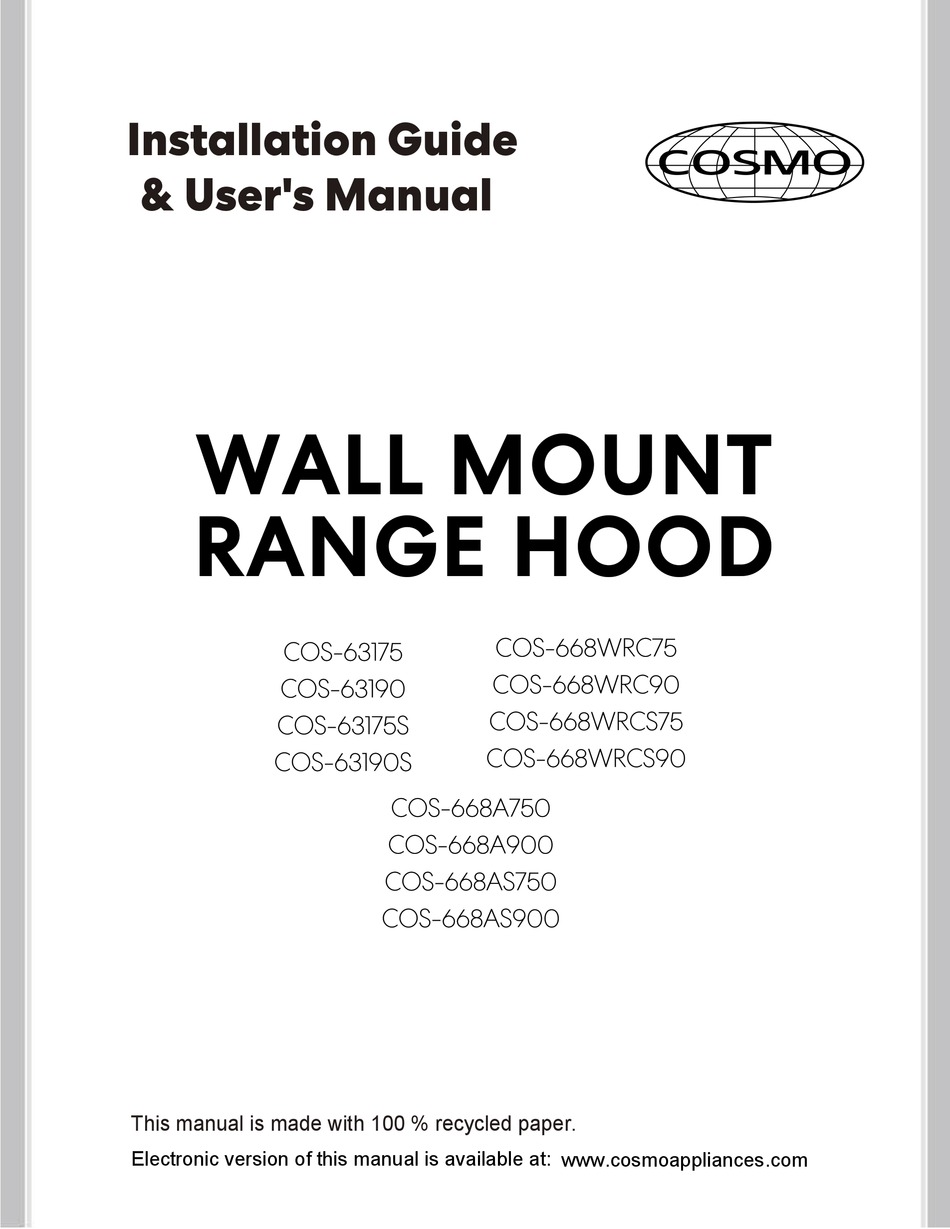

Installation Guide
& User's Manual
WALL MOUNT
RANGE HOOD
COS-668WRC75
COS-63175
COS-668WRC90
COS-63190
COS-668WRCS75
COS-63175S
COS-668WRCS90
COS-63190S
COS-668A750
COS-668A900
COS-668AS750
COS-668AS900
This manual is made with 100 % recycled paper.
Electronic version of this manual is available at: www.cosmoappliances.com
Advertisement
Related Manuals for Cosmo COS-63175
Summary of Contents for Cosmo COS-63175
- Page 1 Installation Guide & User's Manual WALL MOUNT RANGE HOOD COS-668WRC75 COS-63175 COS-668WRC90 COS-63190 COS-668WRCS75 COS-63175S COS-668WRCS90 COS-63190S COS-668A750 COS-668A900 COS-668AS750 COS-668AS900 This manual is made with 100 % recycled paper. Electronic version of this manual is available at: www.cosmoappliances.com...
- Page 3 SEE PAGE 13 FOR INSTRUCTIONS ON INSTALLING FILTERS...
- Page 4 burned. Always leave safety grills and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing. The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product.
- Page 5 SAFETY INSTRUCTIONS _______________________________________ 3 PARTS DIAGRAM ___________________________________________ 5-6 INSTALLATION REQUIREMENTS ________________________________ 7 PARTS LIST _________________________________________________ RANGE HOOD INSTALLATION _______________________________ 9-11 BAFFLE FILTER INSTALLATION ________________________________ 12 DUCTLESS CONVERSION FILTERS _____________________________ 13 INSTALLING THE OIL CUP _____________________________________ 14 PUSH BUTTON CONTROLS_____________________________________ 15 SOFT TOUCH CONTROLS ___________________________________ 16 MAINTENANCE ______________________________________________ 17 TROUBLESHOOTING _________________________________________ 18...
- Page 6 (Units with Glass Visor) 7" 7" 1. Top Chimney (Inner Chimney) 2. Bottom Chimney (Outer Chimney) 3. Exhaust Pipe 4. Core Unit 5. Tempered Glass 6. Grease Filters...
- Page 7 6.81" 6.89" 1. Top Chimney (Inner Chimney) 2. Bottom Chimney (Outer Chimney) 3. Exhaust Pipe 4. Core Unit 5. Grease Filters...
- Page 8 1. Do not install the range hood near open doors and windows to avoid reduced performance. (Fig.1) 2. Install the range hood directly above the cooktop. The optimal distance between the cooktop and lower edge of the range hood is 24" to 36". (Fig.2) Install at the height appropriate to your ceiling.
- Page 9 (outer chimney) (inner chimney) A. 11 pcs 2/8" x 1 3/8" Plastic Anchors B. 11 pcs 1/8" x 1 7/8" Screws (48mm) C. 4 pcs 1/8" x 3/8" Screws (35mm) D. Core Unit Bracket (Main Body) E. Outer Chimney Cover Bracket F.
- Page 10 WALL MOUNT RANGE HOOD INSTALLATION Preparing Your Wall / Mounting Instructions Place the range hood on the wall and mark the A. Find the Core Unit Bracket (D) that will hold position where you want to install. the back of the range hood. Mark the locations on the wall with a pencil or marker.
- Page 11 Locate the 6" round aluminum duct (F) and attach it to the top air outlet on the main body of the range hood with HVAC foil tape (not included). Make sure it is connected tightly. Place the bottom of Outer Chimney into Core Body's seating located near vent hole.
- Page 12 Extend the 6" Duct to the vent pipe of your building or outside. For optimal performance try to minimize bending of the duct. Mount outer chimney bracket (E) to the wall appropriate to the height of the outer chimney. Use the hooks on bracket to mount bottom chimney.
- Page 13 Press Button in and down...
- Page 14 Press the center of the filter firmly. While pressing firmly twist and lock into place. (see instructions) Charcoal Filter Model # : CFK1-TM See NEXT PAGE for Oil Cup installation instructions...
- Page 17 COS-668WRCS75, COS-668WRCS90 COS-668AS750, COS-668AS900 COS-63175S , COS-63190S Note: When Fan is ON + or - will increase or decrease fan speed.
- Page 19 My range hood is noisy A. Check inside the range hood for any loose debris and remove. If your range hood is still noisy after checking, please call 1-888-784-3108. A. The range hood and cooktop are too My range hood has far away from each other.
