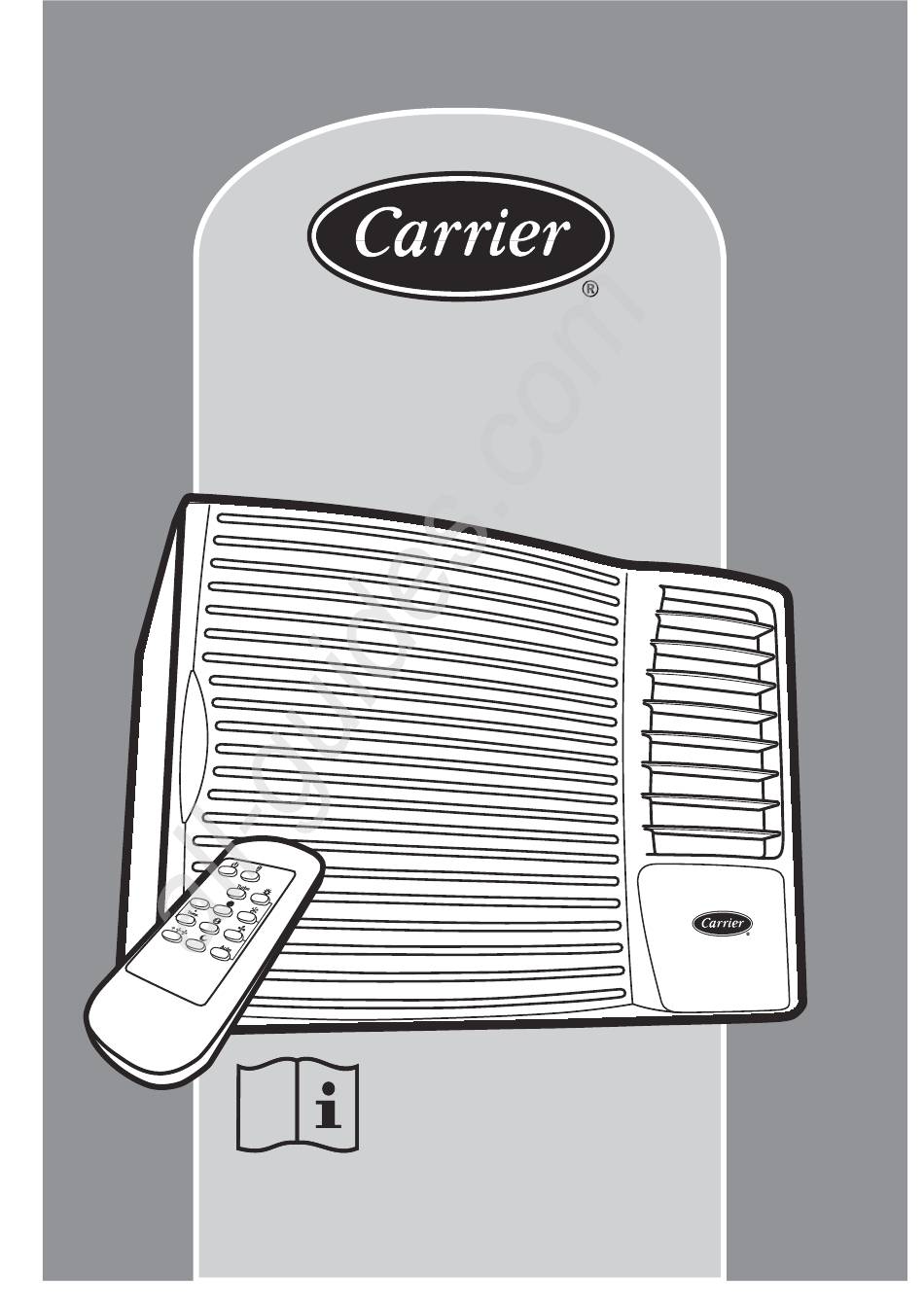

Air Conditioner Owner`s Guide
Acondicionador de Aire Manual del Usuário
Climatiseur Manuel de L`utilisateur
READ THE OWNER`S GUIDE BEFORE USING
Por favor lea el manual detenidamente antes de usar su aire aire condicionado
Nota: Las instrucciones en Español empiezan en la página 26.
Lisez attentivement toutes les directives avant d`installer votore appareil.
Note: Les instruciones en Français commencent a la page 50.
MODELS ZC - Cool Only
ZH - Heat Cool
ZQ - Heat Pump

Advertisement

Table of Contents
loading

Related Manuals for Carrier ZC Series

Summary of Contents for Carrier ZC Series

  • Page 1 All manuals and user guides at all-guides.com Air Conditioner Owner`s Guide Acondicionador de Aire Manual del Usuário Climatiseur Manuel de L`utilisateur READ THE OWNER`S GUIDE BEFORE USING Por favor lea el manual detenidamente antes de usar su aire aire condicionado Nota: Las instrucciones en Español empiezan en la página 26.
  • Page 2 One of the principal advantages of owning a Carrier room air conditioner with electric heat is that the unit heats AND cools, so it can be used year-round! (Only on models with heat feature) While cooling, your new Carrier unit also filters and dehumidifies.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com INDEX INDICE / INDICE RECEIVING THE AIR CONDITIONER GETTING ACQUAINTED WITH THE AIR CONDITIONER AIR CONDITIONER WITH REMOTE CONTROL OPERATING THE ELECTRONIC UNIT WITH THE REMOTE CONTROL OPERATING UNIT FROM THE CONTROL PANEL (WITHOUT THE REMOTE CONTROL) AIR DIRECTION AND EXHAUST CONTROL TIPS TO ACHIEVE MAXIMUM EFFICIENCY AND COMFORT...

  • Page 4: Receiving The Air Conditioner

    All manuals and user guides at all-guides.com 1. RECEIVING THE AIR CONDITIONER Read the instructions in the User's Manual. Keep the Manual. It is always useful. Unpack the unit. NOTE For your safety wear gloves. Check if the unit exterior is in perfect condition. Check if the items provided with the unit are inside the box.

  • Page 5: Getting Acquainted With The Air Conditioner

    All manuals and user guides at all-guides.com 2. GETTING ACQUAINTED WITH THE AIR CONDITIONER Check the appliance technical characteristics on the nameplate. Nameplate A - Model B - Serial number C - Voltage (V) D - Circuit Breaker (A) E - Cooling capacity (Btu/h and W) F - Power consumption (W) G - Current (A) H - Power efficiency (W/W)

  • Page 6: Air Conditioner With Remote Control

    All manuals and user guides at all-guides.com 3. AIR CONDITIONER WITH REMOTE CONTROL Remote control On/Off Energy Saver Turbo mode Turbo Heating mode Temperature and Timer adjustment Timer Cooling mode De-humidification mode Fan mode Speed setting Sleep mode Auto mode Control panel Main display (indicates the selected temperature or mode) 1 - On/Off...

  • Page 7: Operating The Electronic Unit With The Remote Control

    All manuals and user guides at all-guides.com 4. OPERATING THE ELECTRONIC Timer operation, turn the unit off or on at a determined time (from 1 to 12 hours), press the Timer UNIT WITH THE REMOTE CONTROL button. If the unit is off, after the programming, it will turn on at the end of the set time.
  • Page 8 All manuals and user guides at all-guides.com These buttons set the time hour by hour, up to 12 hours. To display the room temperature, press buttons (+) and (-) simultaneously for 3 seconds. To cool, press the Cooling mode button. NOTE To cancel this function, press the Timer button again, and set the time to zero.
  • Page 9 All manuals and user guides at all-guides.com In order to circulate air (without cooling or heating), To automatically adjust the unit according to the room press the Fan button. temperature variations, alternating between cool and heat and high, medium or low speed, activate the Auto mode.
  • Page 10 All manuals and user guides at all-guides.com In order to cool or heat the room quickly, set the NOTE temperature as desired, and press the Turbo mode button. The unit display will turn off 5 minutes after the mode activation, and the Timer When this function is activated, the letter T is displayed indicator remains.

  • Page 11: Operating Unit From The Control Panel

    All manuals and user guides at all-guides.com 5. OPERATING UNIT FROM THE CONTROL PANEL (WITHOUT THE REMOTE CONTROL) To select any one of the functions on the unit, press To change the fan speed, press the Select button the Select button once, and the function programmed twice, and the display will exhibit the programmed will appear on the display.

  • Page 12: Air Direction And Exhaust Control

    All manuals and user guides at all-guides.com 6. AIR DIRECTION AND EXHAUST CONTROL Four way air flow provided by the mobile louvers. When the vertical louvers are moved, the air flow is directed to the left or to the right. When the horizontal louvers are moved, the air flow is directed up or downwards.

  • Page 13: Tips To Achieve Maximum Efficiency And Comfort

    All manuals and user guides at all-guides.com 7. TIPS TO ACHIEVE MAXIMUM The air conditioner has been designed to operate withim the folowing v oltage and EFFICIENCY AND COMFORT temperature conditions. Voltage Keep the air filter clean, and do not turn on the unit Nominal Minimum Maximum...

  • Page 14: Where And How To Install The Air Conditioner To

    All manuals and user guides at all-guides.com 8. WHERE AND HOW TO INSTALL 6. Comply with the minimum distance required for the installation of more than one unit on a same wall. THE AIR CONDITIONER TO ACHIEVE A BETTER PERFORMANCE / 40”...
  • Page 15 All manuals and user guides at all-guides.com THROUGH-THE-WALL INSTALLATION Cut opening in wall. For dimensions see Fig. below. Frame opening in wall. For wood framing,provide NOTE a wooden framing support or other approved Window installation GW 05825004 instructions come structure for fastening casing to wall. See Fig. with the window accessory kit only for ZC models.
  • Page 16 All manuals and user guides at all-guides.com Be careful not to be injured by the metal parts. INSTALL CASING IN WALL NOTE Unit casing should project ½” (13mm) in to room to ensure proper fit of decorative grille. Remove the two screws that hold the plastic front (one at each side).

  • Page 17: Drain System Options

    All manuals and user guides at all-guides.com Install the draining system for the condensing water IMPORTANT before positioning the unit in the cabinet. You must use one of the two existing systems, depending on how, If unit is installed where condensate and where the unit will be installed.
  • Page 18 All manuals and user guides at all-guides.com 9.2 DRAINING SYSTEM THROUGH THE BOTTOM Install one of the hose ends at the drain outlet. OUTLET (USING THE DRAIN PAN) The other end of the hose must be connected to the water mains. Position the drain pan inside the cabinet.
  • Page 19 All manuals and user guides at all-guides.com INSTALLING THE UNIT IN THE CABINET Two people must install the unit on the cabinet in order to guarantee its perfect balance and alignment. The other end of the hose must be connected to the rain water drain.
  • Page 20 All manuals and user guides at all-guides.com ELECTRICAL DATA Install the sealing tape and the flashing finishing. 1. All wiring must comply with local and national electrical NOTE codes. All wiring must be installed by qualified and skilled electricians. If you have any questions regarding Sealing tape and flashing are not included with the following instructions, contact a qualified electrician.
  • Page 21 All manuals and user guides at all-guides.com To test your power supply cord: 1. Plug power supply cord into a grounded 3-prong outlet. 2. Press RESET. 3. Press TEST (listen for click; Reset button will trip and pop out) 4. Press and release RESET (listen for click; Reset button will latch and remain in).

  • Page 22: Safety Instructions

    Do not attempt to repair the unit if you are not duly qualified. The filter door can be Call the Authorized Carrier Technical Assistance Service. removed for cleaning If the air conditioner has a remote control, keep it in a purposes.
  • Page 23 All manuals and user guides at all-guides.com CLEANING OF THE AIR FILTER Cleaning by vacuum: pass the vacuum cleaner hose nozzle to remove the dust accumulation. An obstructed air filter reduces the capacity of the air Washing: position the filter with the dirty part turned conditioner, and increases the power consumption.

  • Page 24: Practical Solutions

    All manuals and user guides at all-guides.com 12. PRACTICAL SOLUTIONS Before calling an Authorized Technical Assistance, see how to act in case the air conditioner presents any of the failures below: OCCURRENCE PROBABLE CAUSES SOLUTIONS The air conditioner 1. Circuit breaker off 1.

  • Page 25: Room Air Conditioner

    CARRIER, through an independent servicing dealer or service station, will either repair or replace a defective product (as decided solely by CARRIER) free of charge to the user. CARRIER may replace any defective part with either a new or remanufactured part, at CARRIER's sole option.
  • Page 26 Many unnecessary calls result in the serviceman doing what the owner can do for himself. CONTACT YOUR DEALER OR THE CARRIER AUTHORIZED SERVICE CENTER. You may find this name on the product, on your invoice, or in your Homeowner's Packet.
  • Page 27 All manuals and user guides at all-guides.com...
  • Page 28 All manuals and user guides at all-guides.com...
