- Page 3 ROOM AIR CONDITIONER OWNER’S MANUAL Precautions during installation SAFETY PRECAUTIONS Please observe the following safety precautions when using the air conditioner. Failure or negligence in observing these safety precautions could cause fire, electrical shock or personal injury. Precautions during installation Please ask your sales agent or qualified technician for assistance on the installation of your unit.
- Page 4 Carrier Aura Inverter Checklist of Items 1.0 hp / 1.5 hp (with LCD Remote) 1 pc. Owner’s Manual MODE 1 pc. SPEE Remote Control ON/OFF SLEE ON TIM ER SWING TURBO OFF TIM ER LOWER CYCLE RUN-H CLOC 1 pc.
- Page 5 CAPACITY WIDTH (mm) HEIGHT (mm) 1.0 hp CARRIER AURA INVERTER 1.5 hp *The hole / opening on the wall should have at least 5mm of allowance on the 3 sides (left, right and top) to allow the air conditioning coating. Also, allowing this extra clearance ensures that the...
- Page 6 rectangular...
- Page 7 CODE DESCRIPTION REQUIRED ACTION Control Panel Code E1..E2..Ez System Errors Contact your service center P1..P2..Pz Protection Errors Eco Mode Activated Turbo Mode Activated Sleep Mode Activated Cycle Mode Activated Run-hour Deactivated Activate run-hour feature. Run-hour Activated...
- Page 8 press the up (+) or down (-) button to adjust to the desired number of hours.
- Page 9 REMOTE CONTROL OPERATION 1. POWER ON / OFF 8. SLEEP Press ON/OFF BUTTON to turn on the air conditioner Press SLEEP button while the unit is in COOL mode. ON/OFF SLEEP or vice versa. When turned on, it will operate according When this feature is activated, the temperature setting shall be automatically raised by 1 C after ONE HOUR.
- Page 10 11. LOUVER 15. RUN HOUR TARGET SETTING Not available in this model To change the target setting, press the RUN -H button. As soon as it displays the last setting, press 12. ON TIMER button. The target can be set in a range of 10-990 hours (10 hours each per up / The air conditioner can be programmed to to turn on down press).
- Page 11 When servicing the air conditioner, be sure the unit is unplugged. Do not use gasoline, thinner, liquid insecticide or any chemicals on the air conditioner. Use of these may damage the paint and plastic parts. Never attempt to clean the unit by pouring water directly on it as this will cause deterioration of the electrical insulation.
- Page 14 I consent to the collection, recording, organization, storage, updating or modi cation, retrieval, consultation, use, consolidation, blocking, erasure or destruction by Concepcion-Carrier Air Conditioning Company (CCAC) of my data below for the purposes identi ed in its Data Privacy Notice, published in its website (www.carrier.com.ph), which is deemed incorporated into this Warranty Card.
Need help?
Do you have a question about the Aura and is the answer not in the manual?
Questions and answers
My carrier aura aircon stop without a timer set
Your Carrier Aura air conditioner may have stopped working because the run hour counter has reached zero balance. When this happens, the dot after the first digit will blink continuously as an alarm, and the unit will be locked out. To reset the run hour and use the air conditioner again, press and hold the RUN-H button on the remote handset for 3 seconds. The LED screen will show the target setting before the unit can be used again.
This answer is automatically generated
@Mr. Anderson how about if the remote is not working what to do sir thank you

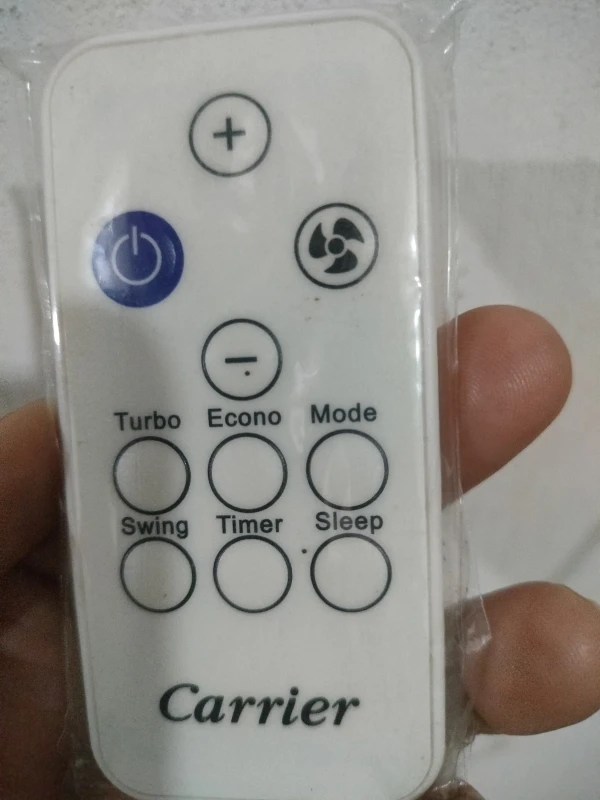

@Mr. Anderson and my remote don't have the RUN-H button

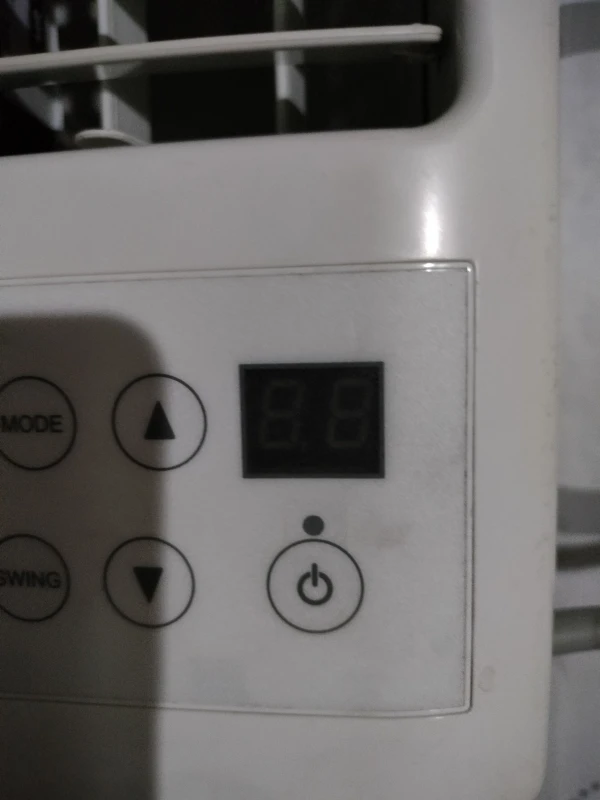

My Aura slows and shuts down after one hour of use without a timer. Is there a way to reset the internal computer of my unit
@Ralph Villaluz yes mine too it's stop with out a timer
To reset the internal computer (Run Hour function) of your Carrier Aura unit:
1. Press and hold the RUN-H button on the remote handset for 3 seconds.
2. The LED screen will show the target setting and ‘rd’ (Run Hour deactivated).
3. Wait for the display to return to normal.
4. Press the RUN-H button again for 3 seconds until ‘rd’ reappears.
5. Immediately press the Mode button on the unit display board.
6. Wait until the unit displays ‘rA’, which confirms the setting.
Follow the same steps to deactivate the Run Hour function if you do not want to use it. Make sure the unit is unplugged when servicing.
This answer is automatically generated
May carrier aura aircon stop without a timer
Yes, the Carrier Aura air conditioner can stop without using a timer. The timer function is optional and used for automatic on/off scheduling. Without setting the timer, the unit can be turned off manually.
This answer is automatically generated
Why it's Stop and it show fr
