PARTS AND FEATURES
This manual
covers
several
different
models,
and not all models
are shown.
The cooktop
you have purchased
may have some or all of
the items listed.
The locations
and appearances
of the features
shown
here may not match
those
of your
model.
All Btu/h
ratings
shown
are for Natural
gas unless
otherwise
noted.

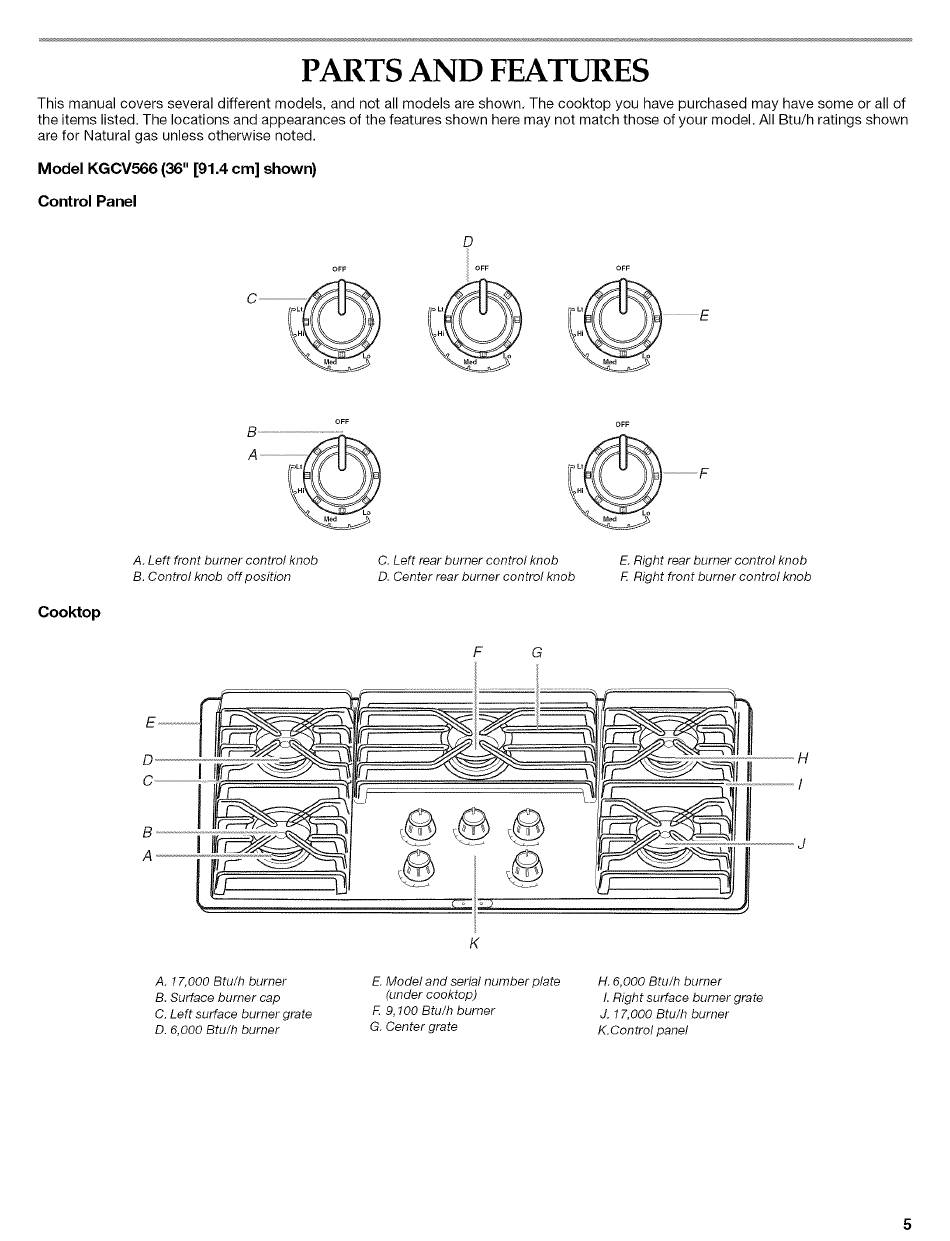

Model KGCV566 (36" [91.4 cm] shown)
Control Panel
D
L,
(_L,
E
Med
Cooktop
OFF
B .............................................
A. Left front burner control knob
B. Con trol knob off position
C. Left rear burner control knob
D. Center rear burner control knob
F
G
OFF
......F
E. Right rear burner control knob
E Right front burner control knob
D
C
B
A
__
................ H
I
K
A. 17,000 Btu/h burner
B. Surface burner cap
C. Left surface burner grate
D. 6,000 Btu/h burner
E. Model and serial number plate
(under cooktop)
F. 9,100 Btu/h burner
G. Center grate
H. 6,000 Btu/h burner
L Right surface burner grate
J. 17,000 Btu/h burner
K.Con trol panel
