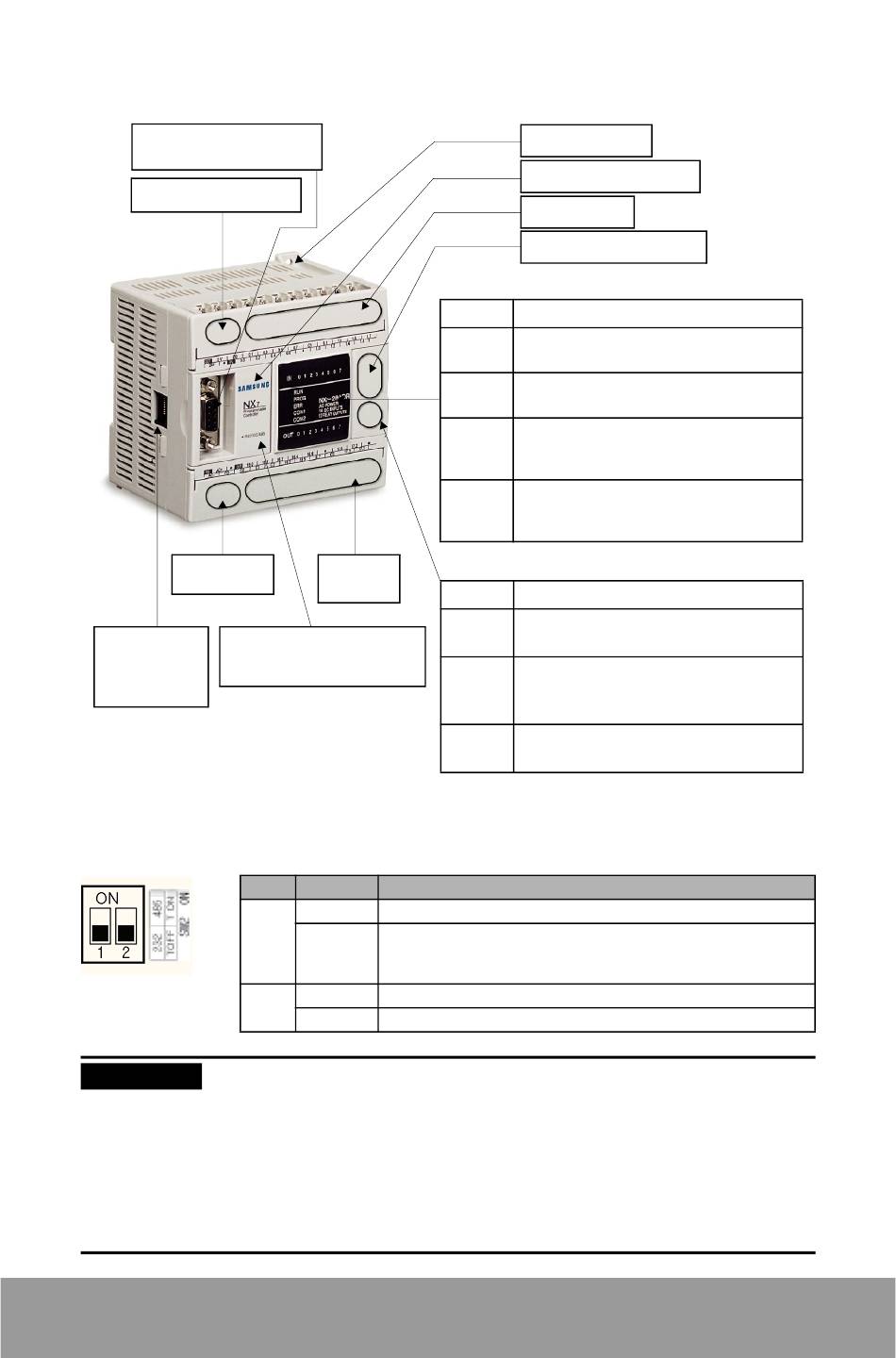

Hardware Features

COM1:RS232C/RS485
9pin female D-Sub
24V dc auxiliary output
Power supply
connector
DIP switch for COM1
COM2:
- Selects RS232 or RS485
RS232C/RS485
- Sets termination resistance
8pin female
RJ45
COM1 communication mode DIP switch (SW2)
Open the communication housing case and adjust the DIP switch as follows:
The baud rate is automatically detected and adjusted within the range of
IMPORTANT
4800 to 38400 bps. No separate speed setting is required. Once a speed is
assigned, it is maintained until there is no communication for more than
one minute. Then, the speed is automatically detected and configured
again.
The termination resistance is connected to the end of the communication
line to remove mutual communication interferences or signal distortions
that can occur between connected controllers and peripherals.
Use an external connector for termination for COM2 port.
Output
terminals
No. Status
Off Enables RS-232C communication for COM1
Enables RS-485 communication for COM1
1
On (Used for hand-held programmer and multi-drop
connections, etc.)
Off Disables termination for RS-485 communication
2
On Enables termination for RS-485 communication
Panel fixing hole
Battery mounting holder
Input terminal
Expansion unit connector
Status LEDs
LED
On when processor is in operation.
RUN
Flashes when processor is pausing.
On when the program can be modified or
PROG
downloaded.
On when processor fault is detected.
ERR Flashes when the battery is not installed
or needs to be replaced.
On when power is supplied normally.
COM1
Flashes when communication is
COM2
progressing via the port
Operation mode selector switch
Mode
Processor is in operation.
RUN
Program editing is not allowed.
Remote control status.
RMT Run or pause operation, program
editing and downloading are allowed.
Processor is in stop mode.
PROG
Program editing is allowed.
Description
Description
Description
