O.S. engine GF30 Owner's Instruction Manual

600930100000
It is of vital importance, before attempting to operate your
engine, to read the general 'SAFETY INSTRUCTIONS
AND WARNINGS' in the following section and to strictly
adhere to the advice contained therein.
Also, please study the entire contents of this
instruction manual, so as to familiarize yourself with
the controls and other features of the engine.
SAFETY INSTRUCTIONS AND WARNINGS ABOUT YOUR O.S. ENGINE
Remember that your engine is not a " toy ", but a
highly efficient internal-combustion
whose power is capable of harming you, or others,
if it is misused or abused. As owner, you, alone,
are responsible for the safe operation of your
engine, so act with discretion and care at all times.
If at some future date, your O.S. engine is acquired
by another person, we would respectfully request
that these instructions are also passed on to its
new owner.
The advice which follows is grouped under two
headings according to the degree of damage or
danger which might arise through misuse or neglect.
WARNINGS
These cover events which might involve serious
(in extreme circumstances, even fatal) injury.
NOTES
These cover the many other possibilities, generally less
obvious sources of danger, but which, under certain
circumstances, may also cause damage or injury.
WARNINGS
Never touch, or allow any object to come
into contact with the rotating propeller and
do not crouch over the engine when it is
running.
Gasoline is poisonous. Do not allow it
come into contact with the eyes or mouth.
Always store it in a clearly marked
container in a cool and dark place and out
of the reach of children. There is a
possibility that it may damage your health.
Gasoline is highly flammable. Keep it away
from an open flame, excessive heat,
sources of sparks, or anything else which
might cause it to ignite. Do not smoke or
allow anyone else to smoke near to it.
ABOUT THE ENGINE
While this is a four stroke gasoline engine,
use the same oil mixed gasoline for two
stroke gasoline engines.
This engine is designed for experienced fliers.
Beginners and newcomers should not use this engine.
The engine unit, silencer, carburetor and ignition
module are specially designed.
The normal rotation direction of the engine is
counterclockwise facing to the propeller.
It offers broad power characteristics suitable for sport
flight as well as acro flight.
The specially designed ignition module "IG-07" is
equipped with a micro computer and designed not to
operate below 120 rpm.
The new F-6040 silencer is supplied with the engine.
It develops very efficient silencing effect.
STANDARD ACCESSORIES
Spark Plug 1/4-32
Ignition module
Assembly (IG-07)
F-6040 Silencer Assembly
Silencer Body
Exhaust Header Pipe Assembly
Exhaust Header Pipe Nut (M16)
GF30
Four stroke gasoline engine
for airplanes
Carry out the mixing of the gasoline and
oil outdoors or in a well ventilated place
away from any source of fire to prevent the
possibility of a fire.
Refill the fuel tank only after the engine is
well cooled down, or there is a danger of fire.
Model engines generates considerable
heat. Do not touch any part of your engine
until it has cooled. Contact with the muffler
(silencer), cylinder head or exhaust header
machine
pipe, in particular, may results in a serious
burn.
Observe the laws and regulations in each
country and district concerning the usage,
transportation and storage of gasoline. Ask
details at fire station in each district.
Never operate your engine in an enclosed space.
Model engines, like automobile engines, exhaust
deadly carbon-monoxide. Run your engine only
in an open area.
Do not operate the engine nor model alone, or
there is a possibility of injury.
NOTES
Any propeller requires utmost attention to handle.
Be sure to follow the instruction manual supplied with
a propeller.
This engine was designed for model aircraft.
Do not attempt to use it for any other purpose.
Start the engine only after installing it in the model.
Do not start the engine before installing it in the
model, or there is a possibility of injury.
Be sure to use an effective silencer (muffler).
Frequent exposure to an open exhaust may
eventually impair your hearing. Such noise is also
likely to cause annoyance to others over a wide area.
Mount the engine in your model securely, following
the manufacturers' recommendations.
For their safety, keep all onlookers (especially small
children) well back (at least 10 meters) when
preparing your model for flight.
When checking a spark plug with the power source
on, do not hold the plug, plug cap, high tension cord ,
or you will get a shock.
Install a top-quality propeller of the diameter and
pitch specified for the engine and aircraft.

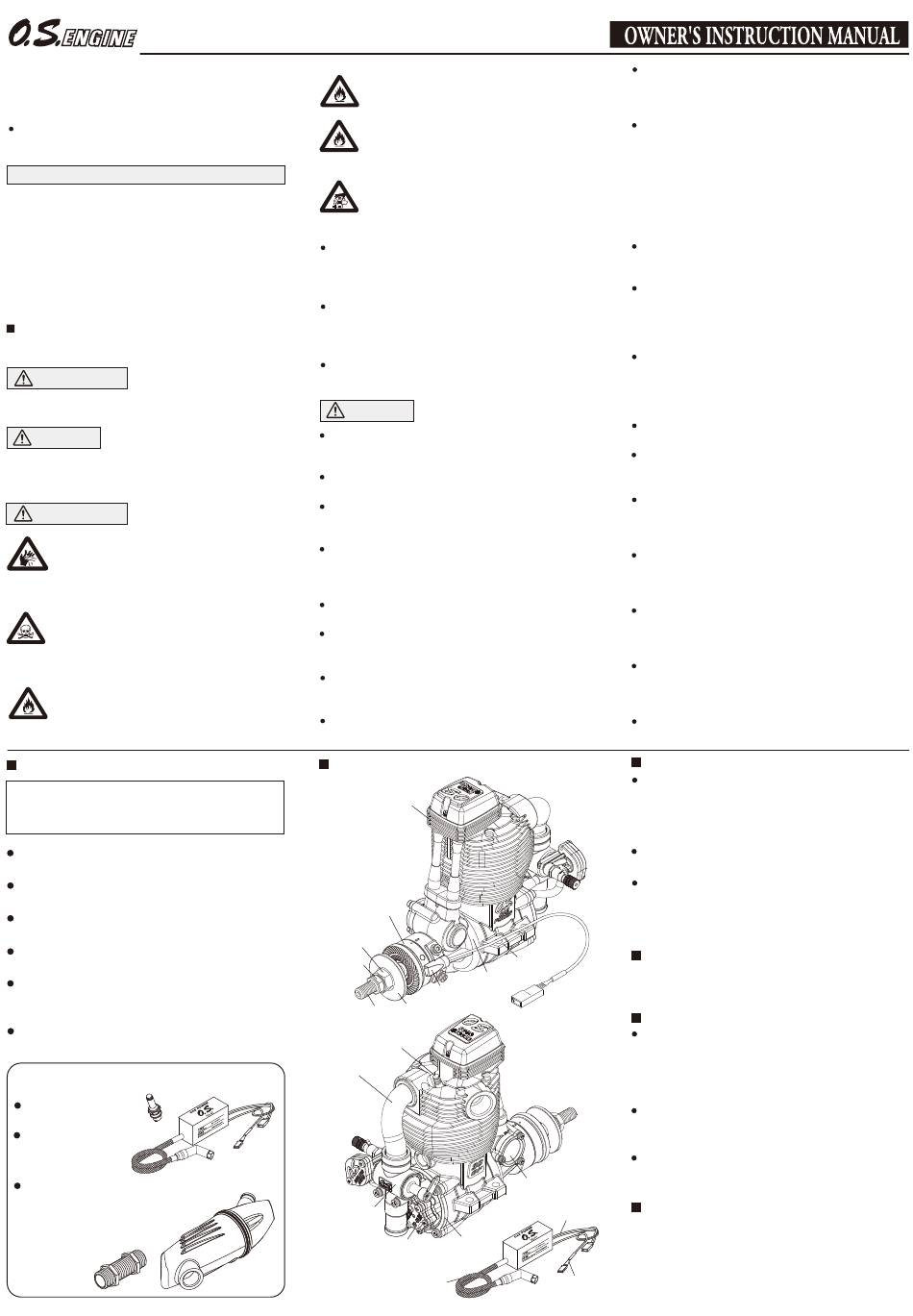

ENGINE PARTS NAME
Cylinder Head
Drive Hub
Propeller Nut
Lock Nut
Crankshaft
Spark Plug
Intake Manifold
Carburetor
Type 70T
Pump Unit PD-08
High Tension Cord
Beam Mount
Crankcase
RPM Sensor
Propeller Washer
Cam Cover
Battery Leads
Cover Plate
Sensor
Leads
Discard any propeller which has become split,
cracked, nicked or otherwise rendered unsafe.
Never attempt to repair such a propeller: destroy it.
Do not modify a propeller in any way.
Install the propeller on the shaft so that the curved
face of the blades faces forward – i.e. in the direction
of flight. Firmly tighten the propeller washer and
propeller installing screws using the correct size
wrench. Always check the tightness of propeller
installing screws and retighten them, if necessary,
before starting the engine. Also, check the tightness
of all the screws and nuts before restarting the
engine.
Always check the throttle linkage.If it is disconnected,
throttle action becomes uncontrollable, which may
result in a serious accident.
Take care that loose clothing (ties, shirt sleeves,
scarves, etc.) do not come into contact with the
propeller. Do not carry loose objects (such as
pencils, screwdrivers, etc.) in a shirt pocket from
where they could fall through the propeller arc.
Use an electric starter for this engine. The wearing of
safety glasses is also strongly recommended.
If you try hand starting, be sure to use a chicken stick
or heavy glove. Never attempt to start the engine
with a bare hand.
Be sure to carry out adjustments of the needle valve
and mixture control valve after stopping the engine.
Do not start your engine in an area containing loose
gravel or sand. The propeller may throw such
material in your face and eyes and cause injury.
If you have to carry the model to the take-off point
with the engine running, be especially cautious.
Keep the propeller pointed away from you and walk
well clear of spectators.
Switch off the ignition module to stop the engine or
fully close the throttle valve via the transmitter to
shut off the fuel supply. Otherwise there is a
possibility of injury.
Immediately after the engine is stopped, the engine
may start with a crank even when the igniter switch
is off. Do not crank the engine, or there is a
possibility of injury.
Be sure to install an externally operable switch for
the ignition system battery to stop the engine if it is
started unintentionally with the radio transmitter
turned off or there is the possibility of injury.
Connect the throttle linkage so that the engine can
be stopped via radio operation.
INSTALLATION
It is suggested to use as heavy and rigid as possible
engine mounting for highest performance and safe
running. Install the engine on a mount using at least
4mm steel screws, such as Allen type, with locknuts,
for bolting the engine to the bearers.
Also, use the Nord Lock Washers (optional extra) and
other anti-loosening washers or apply locking agent.
Be sure that there is sufficient air intake and outlet
area on the model for engine cooling to avoid
overheating. (Pay careful attention to the cooling
since a gasoline engine generates more heat than a
glow engine.)
INSTALLATION OF SPARK PLUG
Install the supplied spark plug firmly on the engine with
O.S. Long Socket Wrench (optional: code no. 71521000),
or with a commercially available 8mm deep socket wrench.
INSTALLING SILENCER
Screw the exhaust manifold in the exhaust port of
the cylinder head as far as possible and fix it with
the lock nut. (Insufficient screwing in may result in
damaging the screw threads of the exhaust port due
to vibration.)
Screw the silencer on the exhaust manifold within
more than 10mm and less than 25mm range. Set
the required outlet angle and fix it with the lock nut.
It is suggested to apply locking agent to the screw
threads to prevent loosening and also to make sure no
loosening from time to time and retighten if necessary.
PCV VALVE
This engine is employed with PCV (Positive
Crankcase Ventilation) valve.
Ventilation in the crankcase is positively done with the
change of pressure in the crankcase and one-way
check valve. Blow-by gas and oil waste are returned to
the combustion chamber via intake port.
