Phanteks GLACIER R160C Manual

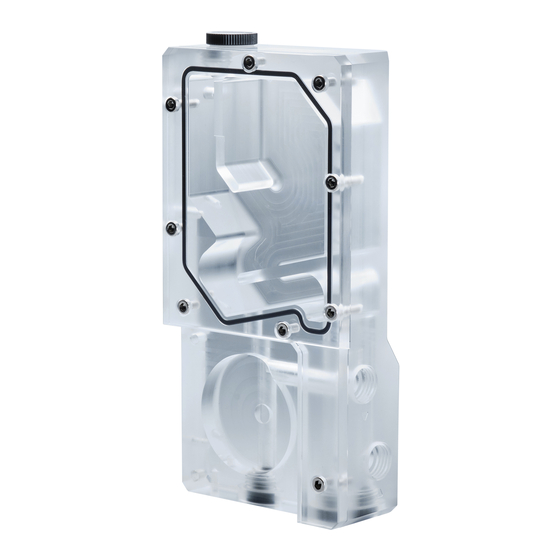

GLACIER R160C/R220C
PH-R160C_02/PH-R220C_02

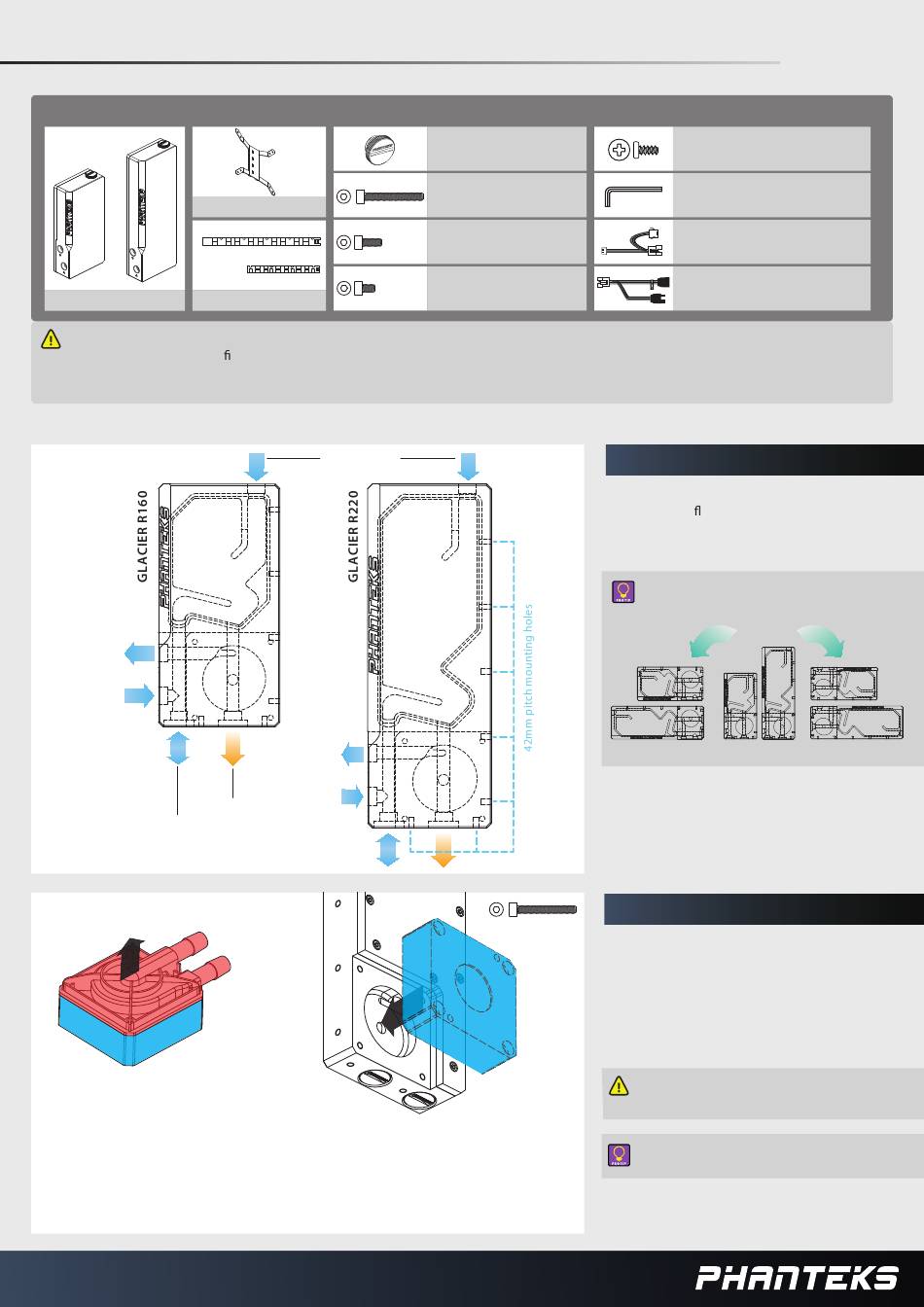

PACKAGE CONTENTS
R160C or R220C 160/220 D-RGB strip
DISCLAIMER
- This product is intended for advanced users.
Please consult with a quali ed technician for installation. Phanteks
assumes no liability for any damages occurring as a result of using
Phanteks cooling products.
INSTALLATION
OUTLET
INLET
INLET-
DRAIN PORT-
SENSOR PORT-
A.
DDC pump
3x
Fan Bracket
4x
2x
2x
FILL PORT
-DRAIN PORT
-SENSOR PORT
B.
Stop Fitting
(pre-installed)
4x
M4x25 Pump Screws
M4x10 Bracket Screws
M4x6 LED-strip Screws
WARNING
- Power down the system before installation.
- Do not disassemble the reservoir. Warranty will be voided.
- Perform a leak test before turning on the system.
- Check our website for the latest installation guide.
The R160C/R220C is equipped with multiple ports to
allow for more exibility. Please plan your water
loop before proceeding with installation.
4x
M4x25mm
A. Remove the original DDC pump top.
B. Install the DDC pump using the M4x25mm screws
and the original O-ring.
MANUAL V1.0
Fan Screws
3mm Allen Key
D-RGB cable
D-RGB Motherboard cable
STEP 1. OVERVIEW
The R160C/R220C can be used in 3 orientations:
STEP 2. INSTALL DDC PUMP
Make sure the DDC pump is mounted
correctly and no cables are pinched.
Tighten the pump screws evenly in a
diagonal pattern for an even pressure.
