Setup And Adjustments - Johnson Controls NS Series Installation Instructions Manual

IMPORTANT: Failure to adhere to these wiring
details causes the network sensor to function
incorrectly. You will not be able to connect to the
system using the wireless commissioning converter
or the handheld VAV balancing tool, and you will not
be able to expand the system with future offerings.
Pin Number Assignment for
Straight-Through Cable
5
6
Printed Circuit Board

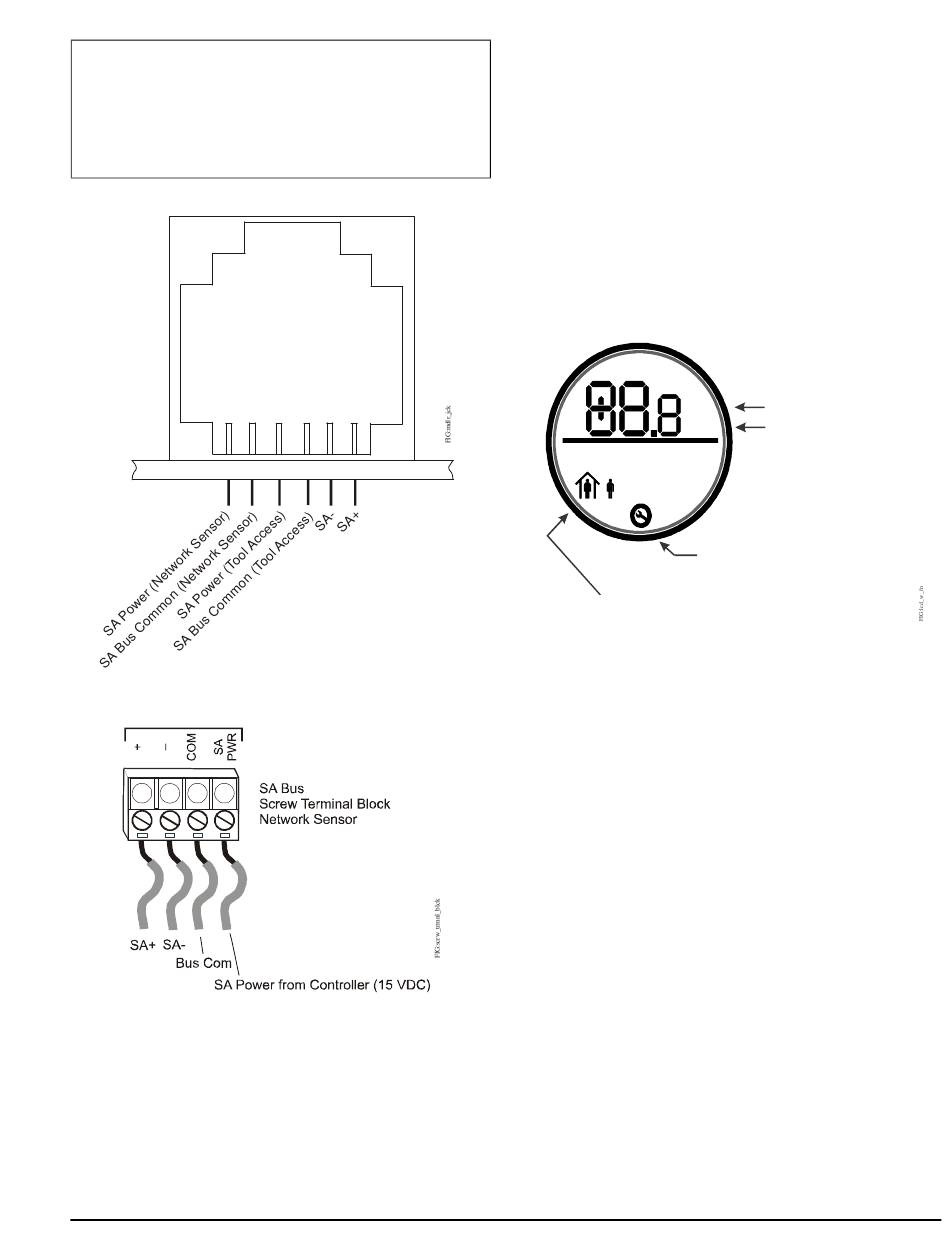

Figure 1: Pin Number Assignments
Figure 2: Wiring to the Screw Terminal Block
7. Align the tabs on the bottom edge of the mounting
base with the slots on the bottom edge of the
network sensor assembly, and rotate the assembly
onto its mounting base.
NS Series Network Sensors with Fault Code Capability Installation Instructions
Main
Network
Port
4 2
3 1
Note: Ensure the terminal block pins align with the
holes in the terminal block.
8. Use a 1/16 in. (1.5 mm) Allen wrench or
Johnson Controls T-4000-119 Allen-Head
Adjustment Tool to tighten the security screw and
fasten the network sensor assembly to the
mounting base.
Note: Do not overtighten the security screw to avoid
damaging the unit.
9. Use the local LCD on the controller to commission
and configure the network sensor.

Setup and Adjustments

%
°C
°F
Occupied/Unoccupied Mode
Figure 3: LCD for NS Sensors with
Fault Code Capability
Temperature Setpoint Adjustment/Occupancy
Override/Fault Temporary Override
The large dial on the face of the network sensor
functions in two ways: to increase or decrease the
setpoint temperature, and to change the controller
mode from unoccupied and occupied. When the dial
is rotated slightly, the backlight on the LCD lights up. If
the dial is rotated slightly again, and the controller is in
the unoccupied mode, the controller changes from the
after-normal-working-hours setback mode to the
normal-working-hours comfort mode. To adjust the
setpoint, continue rotating the dial until the current
setpoint is displayed and flashing. Turn the dial
clockwise to increase the setpoint and
counterclockwise to decrease the setpoint. Stop turning
the dial once the desired setpoint is reached. The new
setpoint stops flashing and becomes fixed after a few
seconds.
Celsius Temperature
Fahrenheit Temperature
Loss of Network Connection Symbol
3
