User instrUctions

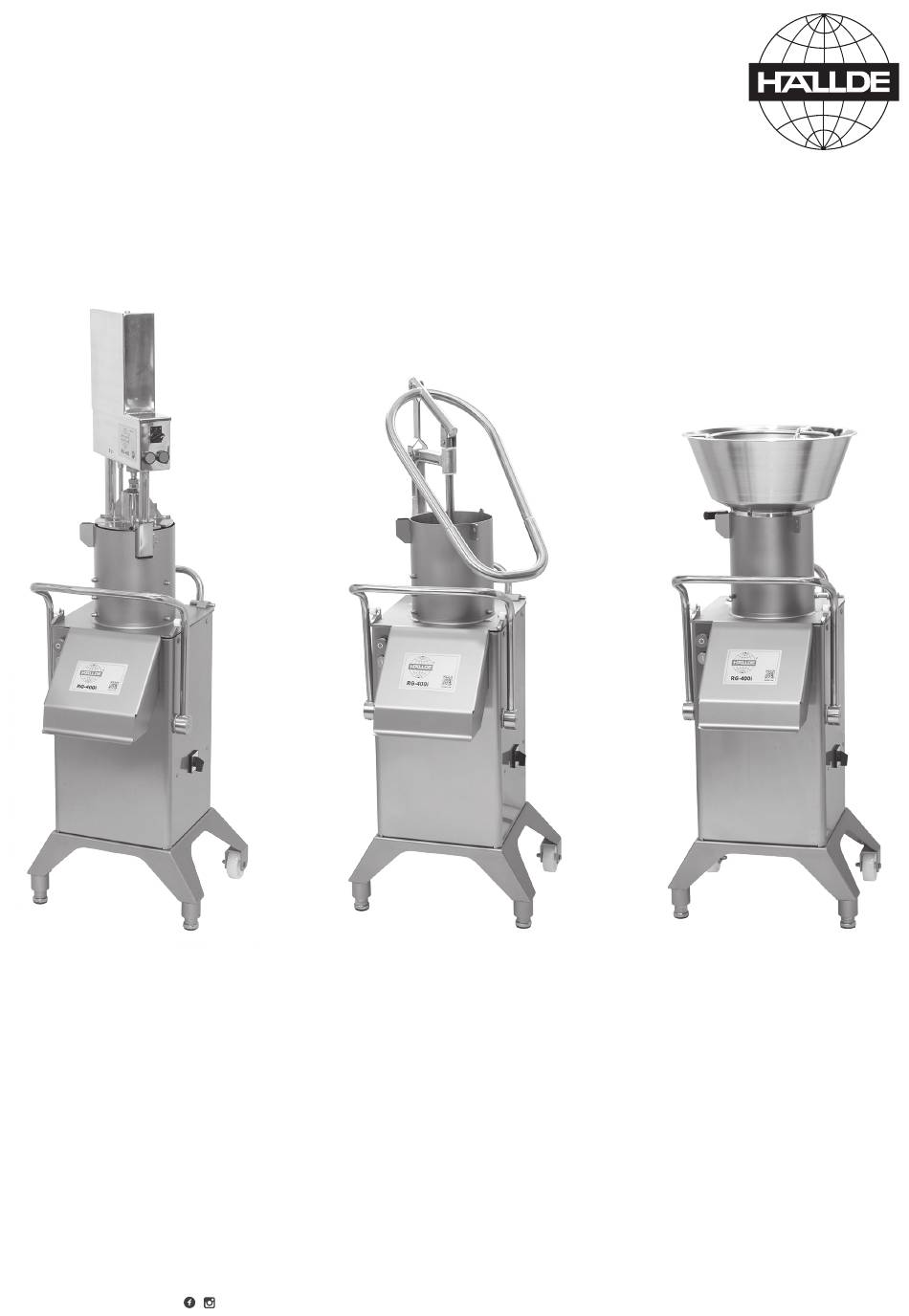

vegetable preparation machine rg-400i
made in sweden. exclusively distributed and serviced in australa by roband australia pty ltd.
all standard hällde products are designed to run at 220-240v per phase, 50hz.
all specifications are nominal only. all information contained in this instruction is subject to change without notice
due to constant research and development. ab hällde maskiner reserves the right to make changes to machines,
accessories and cutting tools.
Roband Australia Pty Ltd
all care has been taken to ensure correct information at time of printing. ab hällde maskiner
1 inman road,
accepts no responsibility for printing errors.
cromer, nsW 2099
australia
tel: +61 2 9971 1788
Fax: +61 2 9971 1336
www.roband.com.au
robandaustralia
0319
email: sales@roband.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG-400i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hallde RG-400i

Summary of Contents for Hallde RG-400i

  • Page 1 User instrUctions vegetable preparation machine rg-400i made in sweden. exclusively distributed and serviced in australa by roband australia pty ltd. all standard hällde products are designed to run at 220-240v per phase, 50hz. all specifications are nominal only. all information contained in this instruction is subject to change without notice due to constant research and development.

  • Page 2: Installation

    Check that the cutting tools are in good condi- (clockwise), by means of the wrench. tion and are sharp. With regard to cutting tools, see page 41. HALLDE • User Instructions...
  • Page 3 When removing, turn the locking knob 8–20 mm:......PF = 3. M = 1. Press in the machine stop button. clockwise and remove the feed hopper. When fitting, fit feed cylinder A or B. Move the lever up all the way. HALLDE • User Instructions...

  • Page 4: Troubleshooting

    2x6 mm: ......PF = 2. M = 2. To eliminate the risk of damage to the motor, rpm. the RG-400i is fitted with thermal motor 4x4–6x6 mm: ......PF = 3. M = 2. NET WEIGHTS: Machine: 54 kg. Feed protection that automatically switches off the 8x8–10x10 mm: ....PF = 3.
  • Page 5 FEED CYLINDER A FOR FEED HOPPER AGITATOR DEVICE FOR DECORING DEVICE FOR LOCKING BOLT FOR DECORING DEVICE FOR FEED HOPPER MANUAL PUSH FEEDER 4-TUBE INSERT PNEUMATIC PUSH FEEDER ASSEBLING / DISMANTLING CUTTING TOOLS: SEE PAGE 44-45. MACHINE BASE HALLDE • User Instructions...
  • Page 6 FEED CYLINDER MANUAL PUSH FEEDER FEED HOPPER SHAFT SHAFT ASSEMBLING TRAY 4-TUBE INSERT PNEUMATIC PUSH FEEDER INSERT EJECTOR PLATE SHAFT TRAY WITH EJECTOR PLATE SHAFT SHAFT INTO THE FEED CYLINDER TUBE LOCKING HANDLE MACHINE BASE MACHINE BASE HALLDE • User Instructions...

  • Page 7: Cutting Tools

    In RG-400i, the ejector plate is placed in the are firmly attached. tray, which is, in turn, mounted in the knife housing of the machine.
  • Page 8 Pneumatic Push Feeder Agitator device Decoring device Locking bolt Decoring device for Feed Hopper for Manual Push Feeder for 4-Tube Insert for Pneumatic Push Feeder Cutting tool Insert Ejector plate Tray with Ejector plate Ejector plate KNIFE HOUSE HALLDE • User Instructions...
  • Page 9 Decoring device for Feed Hopper for Manual Push Feeder for 4-Tube Insert for Pneumatic Push Feeder Slicer Dicing grid / Potato chip grid Insert Ejector plate Tray with Ejector plate KNIFE HOUSE Dicing combinations available at hallde.com HALLDE • User Instructions...
  • Page 10 Vegetable Preparation Machine 400i HALLDE • User Instructions...
  • Page 11 Vegetable Preparation Machine 400i HALLDE • User Instructions...

  • Page 12: Declaration Of Conformity

    DECLARE UNDER OUR SOLE RESPONSIBILITY THAT THE FOLLOWING PRODUCTS: RG-50S, RG-50, VPU/FP-50, RG-100, VPU/FP-100, FP-150, RG-200, MODEL NAME VPU/FP-200, RG-250, VPU/FP-250, RG-7, RG-350, VPU/FP-350, RG-400, VPU/FP-400 RG-400i, VPU-400i, FP-400i. SERIAL NUMBER CONFORM TO THE FOLLOWING DIRECTIVES AND STANDARDS Standards: TITLE AND DATE OF ISSUE...
