Hallde RG-400i Service Instructions Manual

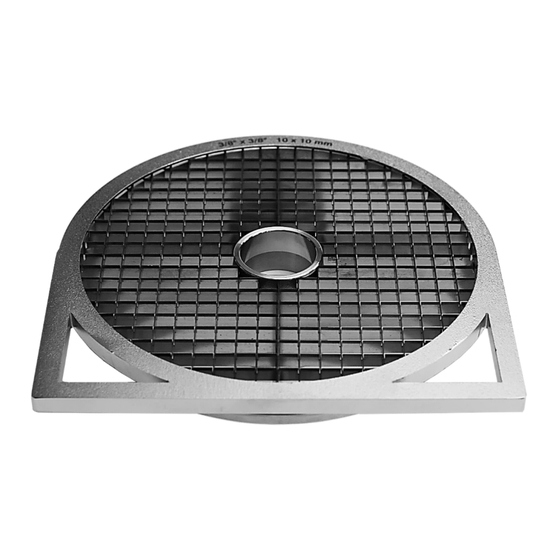

Dicing grid
Hide thumbs Also See for RG-400i:

Advertisement

Quick Links

Download this manual See also: Instructions for Using
Service Instructions
RG-400i Dicing Grid
Replacement of Knives and Ceramic Bushing
Date: 2017-8-16
Approved: Henrik Artursson

Advertisement

loading
Need help?

Need help?

Do you have a question about the RG-400i and is the answer not in the manual?

Questions and answers

Related Manuals for Hallde RG-400i

Summary of Contents for Hallde RG-400i

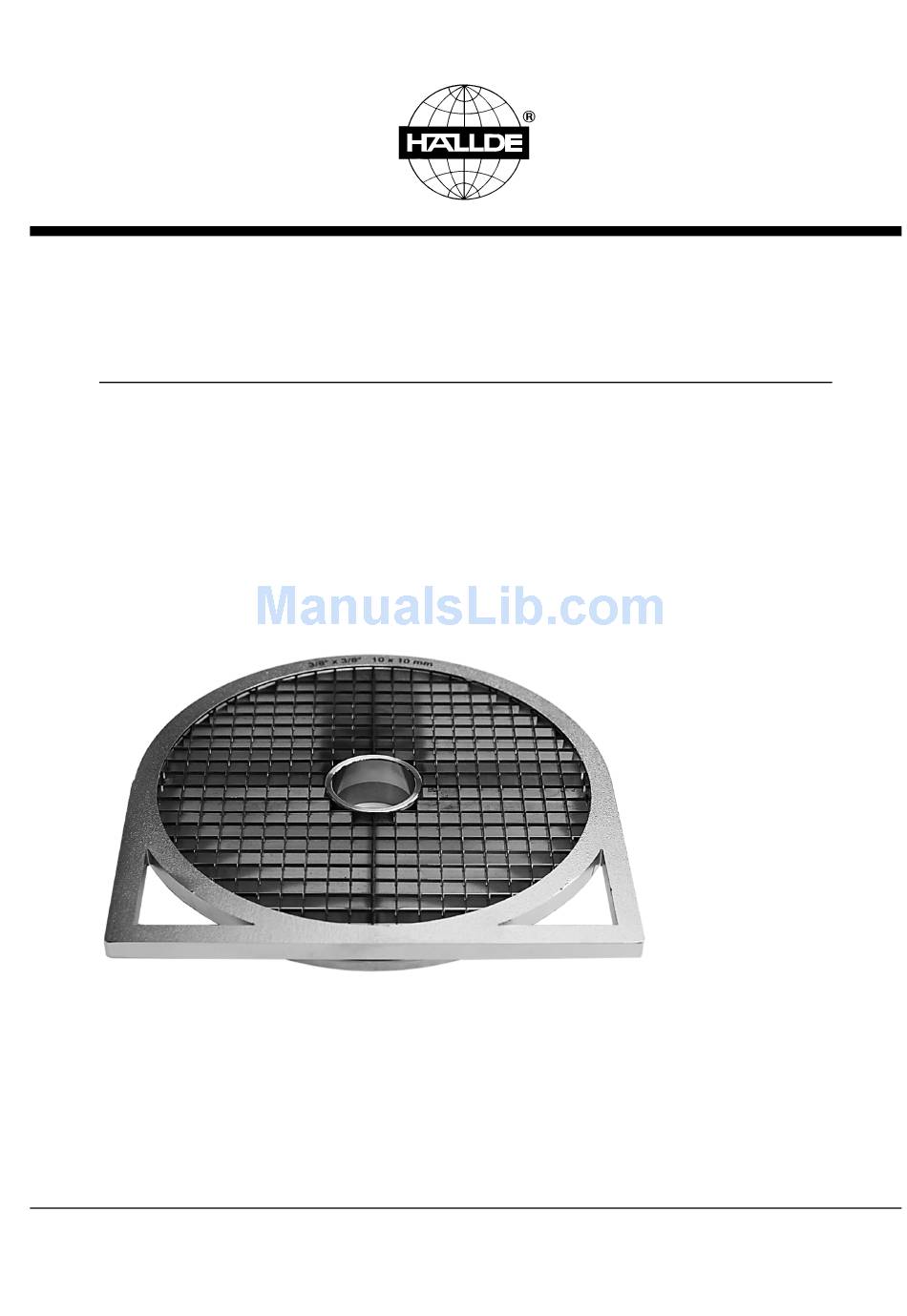

  • Page 1 Service Instructions RG-400i Dicing Grid Replacement of Knives and Ceramic Bushing Date: 2017-8-16 Approved: Henrik Artursson...
  • Page 2 Installation, operation and cleaning Refer to HALLDE User Manual. Tools Standards set of hand tools • Rubber or plastic mallet • HALLDE tool for inner lock ring (HALLDE article number 62449) • Thread locking Nylock screws • Loctite 603 •...
  • Page 3 2. Place the dicing grind on a support to make sure a minimum of 5 cm (2”) free space under the dicing grid. A sauce pan can be used to support the dicing grid. Use the HALLDE inner lock ring tool and a mallet to carefully knock loose the ceramic bushing.
  • Page 4 4. Place the dicing grid on the support facing upside down. Use the HALLDE inner lock ring tool and a mallet to carefully knock loose the inner locking ring. 5. Clean the inner locking ring, ceramic bushing and inside of dicing grid frame to remove all...
  • Page 5 6. Undo the screws that lock the outer locking ring. 7. Carefully flip over the dicing grid and remove the outer looking ring. 8. Remove and replace the knives. 9. Assemble the outer locking ring. Note! New Nylock screws must be used, do not re-use the old Nylock screws.
  • Page 6 10. Position the dicing grid on the support, sharp side of knives facing up.Use a mallet and the HALLDE inner lock ring tool knock the inner locking ring in position. Note! Make sure that the locking ring is pushed all the way down against the knives.
  • Page 7 11. Turn the dicing grid upside down and place it on a flat surface, protect the knives with a cloth. 12. Position the ceramic bushing in the dicing grid, chamfered surface facing up. The ceramic bushing should easily slide up and down and reach the bottom of the dicing grid. When at the bottom the edge of the ceramic bushing should be just below the steel edge of the dicing grid frame.
  • Page 8 13. Remove the ceramic bushing and apply Loctite activator 7649 to the outside of the ceramic bushing. Let it dry for a minute. It can either be brushed on or sprayed. Only a thin cover is needed.
  • Page 9 14. Apply Loctite 603. Apply it at the top of the centerpiece. See pictures below.
  • Page 10 15. Insert the ceramic bushing with the chamfered side up and make sure it rests at the bottom. Wipe off any excess fluid on both sides. 16. Rest the dicing grid with knives facing down and let the Loctite set for 2 hours before the dicing grid us put back in use.
