Russell Hobbs RHECOI Warranty And Instruction

Steam, spray, dry iron
Hide thumbs
Table of Contents

Advertisement

Quick Links

WARRANTY AND INSTRUCTION
RHECOI
RUSSELL HOBBS STEAM, SPRAY, DRY IRON

Advertisement

Table of Contents
loading

Related Manuals for Russell Hobbs RHECOI

Summary of Contents for Russell Hobbs RHECOI

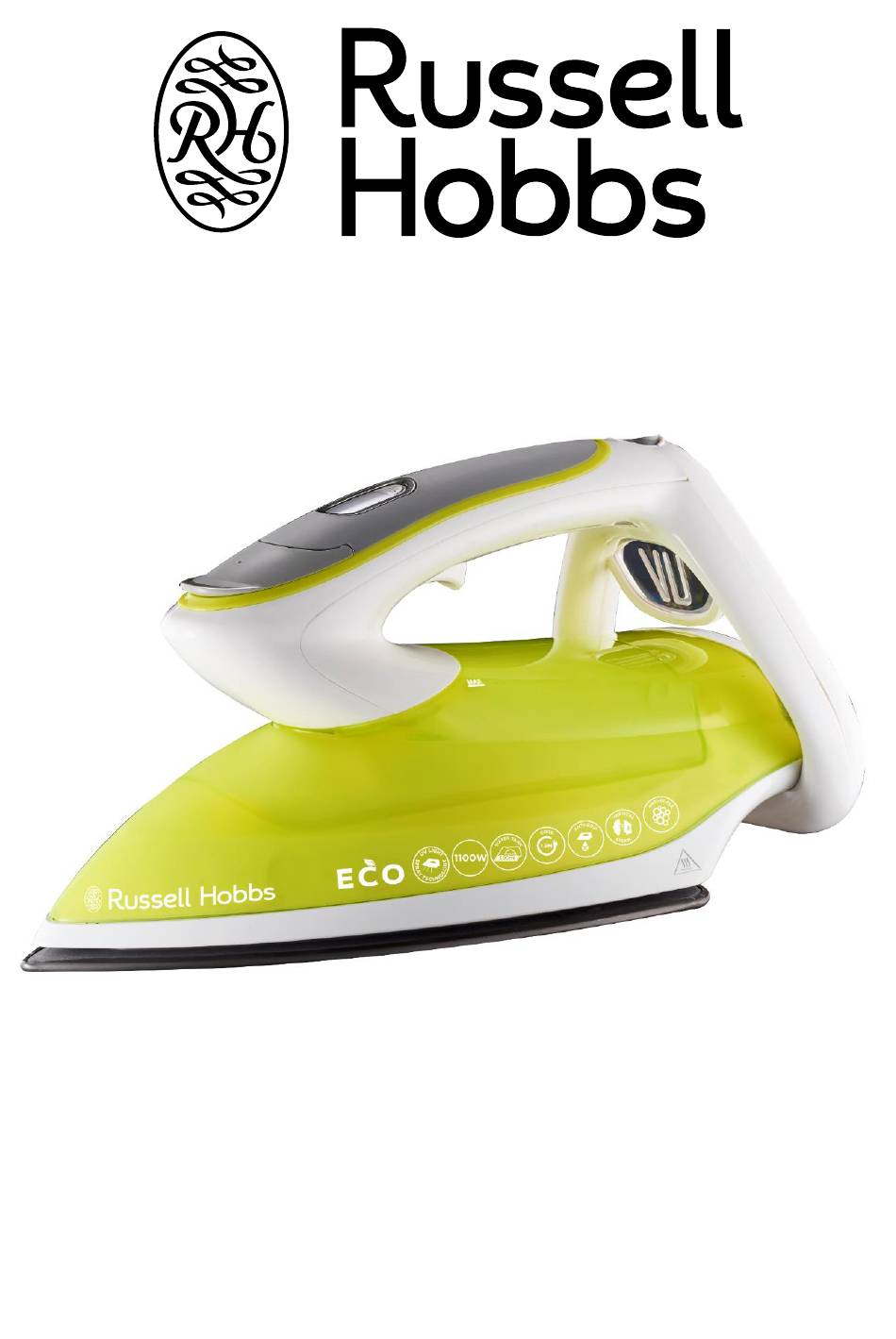

  • Page 1 WARRANTY AND INSTRUCTION RHECOI RUSSELL HOBBS STEAM, SPRAY, DRY IRON...
  • Page 2 Congratulations on purchasing our Russell Hobbs Steam, Spray, Dry Iron. Each unit is manufactured to ensure safety and reliability. Before using this appliance for the first time, please read the instruction manual carefully and keep it for future reference. FEATURES OF THE RUSSELL HOBBS STEAM, SPRAY, DRY IRON •...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS When using any electrical appliance, basic safety precautions should always be followed including the following: 1. Please read the instructions carefully before using any appliance. 2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home.
  • Page 4 15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a position where it can be pulled on inadvertently. 16. Do not allow the cord to touch hot surfaces and do not place on or near flammable goods, near an open flame, hot gas or electric burner or a heated oven.
  • Page 5 36. Always unwind and straighten the power cord before use. 37. Unplug the iron from the mains electrical supply before: • Cleaning • Filling with water or emptying the water tank • Immediately after use • When not in use •...
  • Page 6 1. Water inlet cover 2. Temperature indicator ring 3. Steam level light 4. Steam setting button 5. Soleplate 6. Water tank 7. Steam trigger 8. UV decorative light OPERATING INSTRUCTIONS Steam Level Functions Cloth Strong Steam / Dry Ironing Linen, Cotton, Wool, Silk, Synthetics, Polyester, Acetate, Acrylic, Polyamide, Soft Steam / Dry Ironing...

  • Page 7: Before First Use

    BEFORE FIRST USE Remove any protective films or stickers from the soleplate and the Iron’s body. Wipe the soleplate with a dry soft cloth. Unwind and straighten the power cord. Fill the iron as described in the section “How to Fill the Water Tank”. Connect the appliance to a suitable mains power supply outlet.

  • Page 8: How To Fill The Water Tank

    READ THE GARMENT LABELS AND FOLLOW THE MANUFACTURER’S IRONING INSTRUCTIONS THAT ARE OFTEN SHOWN BY SYMBOLS SIMILAR TO THE FOLLOWING: Variable Steam Spraying Symbol Fabric Temp. steam Burst water Synthetic fibres/Silk Wool Cotton Linen Note: the symbol means:"This article cannot be ironed!” NOTE: If the fabric consists of various kinds of fabrics, always select the temperature required by the most delicate fabrics.

  • Page 9: Dry Ironing

    DRY IRONING This function irons without the use of steam. 1. Connect the iron with a suitable mains power supply outlet. 2. The iron indicator light must be on “ ’’ when starting up the iron 3. The UV light will light up and the temperature indicator ring light will be flashing to indicate the iron has just been started up and is in the heating up process 4.

  • Page 10: Burst Of Steam In Vertical Position

    7. Choose the steam level by pressing the steam setting button. 8. Garments can be ironed when the temperature is stable 9. The temperature indicator ring light will flash from time to time during ironing, as the iron is automatically adjusting the thermostat. 10.

  • Page 11: Auto-Shut Off Function

    AUTO-SHUT OFF FUNCTION The iron features an extra safety feature which will shut down the iron automatically when not in use for a long period. When the iron was not in use for longer than 5 minutes, the steam level light will start flashing and the alarm will “beep” 3 times to shut off the iron. To restart the iron, please press the steam setting button and the iron will restart.

  • Page 12: Cleaning And Maintenance

    7. The iron may be slightly shaken back and forth to clean up the limescale in the soleplate 8. The iron will shut off automatically after the auto-clean process. 9. Disconnect the iron from mains power supply outlet. 10. Repeat the self-cleaning process if the iron still contains a lot of impurities. 11.

  • Page 13: Storing The Appliance

    • Always remember to unplug the unit from the electrical outlet when not in use and before cleaning. • Ensure that the steam knob is set to the “ ” position. • Wipe the soleplate with a damp cloth and a non-abrasive (liquid) cleaner. Once done, buff the soleplate with a clean dry cloth.

  • Page 14: Troubleshooting

    TROUBLE-SHOOTING Problem Possible Reasons Solution No steam is being produced The ttemperature dial has been Set the temperature dial or leakage. to the required positioin. set to “ ” Iron does not heat up Power plug is not plugged in Plug the power plug firmly properly to the main...

  • Page 15: Servicing The Appliance

    SERVICING THE APPLIANCE There are no user serviceable parts in this appliance. If the unit is not operating correctly, please check the following: • You have followed the instructions correctly • That the unit has been wired correctly and that the wall socket is switched on. •...
  • Page 16 PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED. W A R R A N T Y Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a period of 1 (one) year from the date of purchase (“warranty period”).
