Summary of Contents for Bartscher 120.325

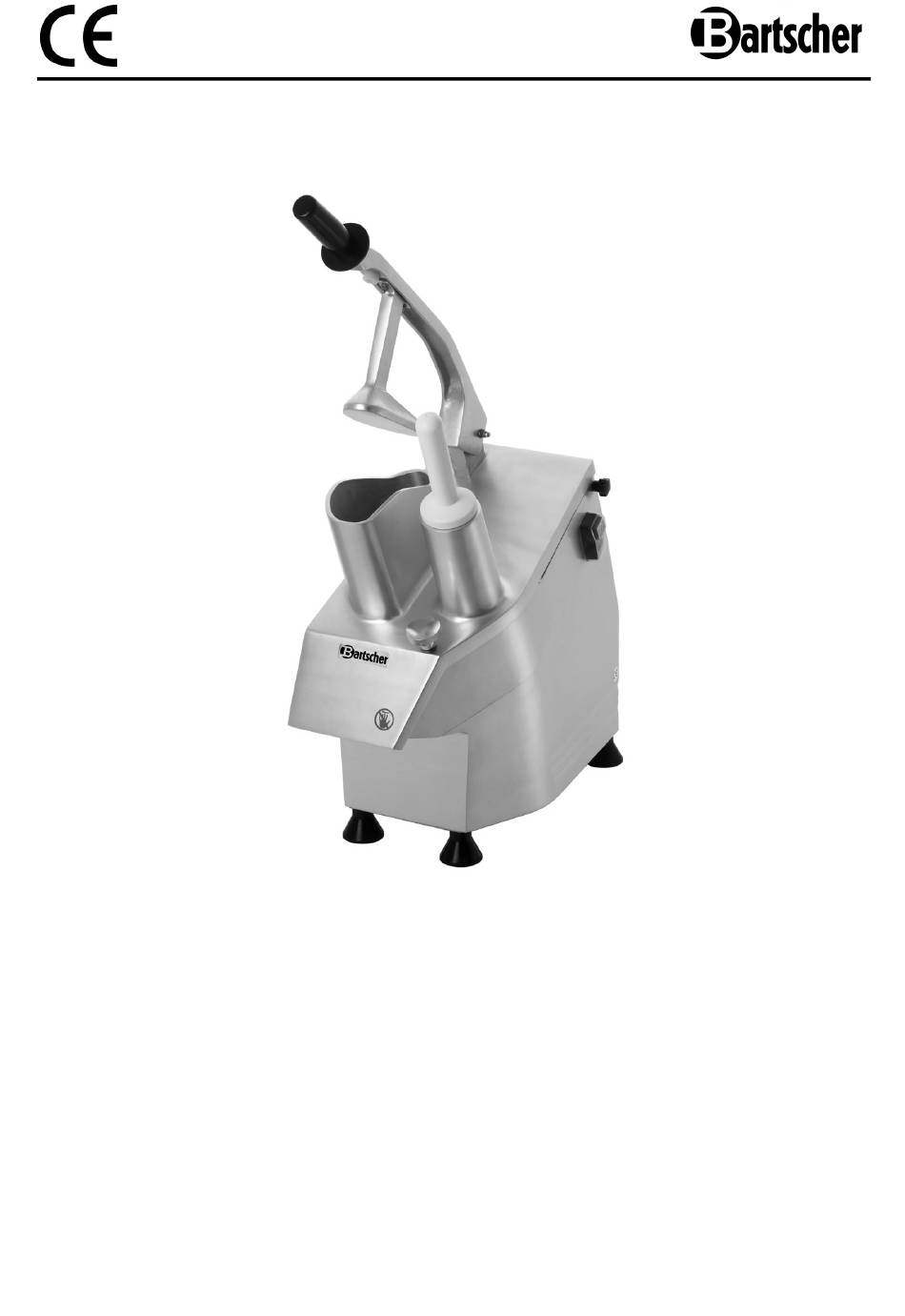

- Page 1 120.325 V1/0111...
-
Page 2: Table Of Contents
5.3 Operating 27-30 6. Cleaning and maintenance 6.1 Safety advice 6.2 Cleaning 31-32 6.3 Safety instructions for maintenance 7. Waste disposal Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax: +49 (0) 5258 971-120 - 17 -... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device. Children should be observed to ensure that they are not playing with the device. -
Page 7: Delivery, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Overview of parts ① ② ⑫ ③ ④ ⑤ ⑪ ⑩ ⑥ ⑦ ⑨ ⑬ ⑰ ⑭ ⑧ ⑯ ⑮ ① ⑩ Pressing lever Cutting blade safety cover ② ⑪ Pressing bar Oval inlet ③ ⑫ Round inlet Oval inlet pressing bar ④... -
Page 9: Technical Specification
Service elements red STOP button green START button 4.2 Technical specification Vegetable cutter Name with 5 cutting blades 120.325 Article no.: Material: die-cast aluminum Power: 230 V 50 Hz 0.55 kW Dimensions: W 240 x D 630 x H 500 mm Weight: 27.5 kg... - Page 10 • Do not move or tilt the device when in operation. • Never disconnect or remove any of the device’s safety elements. The element is equipped with 2 safety elements (microswitches): safety close with microswitch, which halts the device’s operation when the cutting blade safety cover is open.
-
Page 11: Installation And Connection
5.2 Installation and connection CAUTION! The installation and maintenance of the appliance should only be carried out by trained personnel! • Discard the complete packing material after unpacking the device. • Place the device on top of an even and safe surface which supports the weight of the device. -
Page 12: Operating
5.3 Operating Setting up the device • Prior to use, thoroughly clean the device and equipment (6.2 Cleaning). • Prepare food products for cutting. • Select the appropriate cutting blade and install it in the device to cut food products. WARNING! Risk of injury! The cutting blades are extremely sharp! When installing or changing blades, always wear durable, soft gloves that allow safe... - Page 13 Cutting vegetables • Before cutting, ensure the vegetables are of the proper size and quality. Prepare the vegetables. • Place an appropriate container under the outlet. • Connect the device to a single, grounded socket. • Prior to cutting, lift the pressing lever and hold it in a raised position. •...
- Page 14 Cutting blades Cube cutting blades NOTE! Series D blades cab only be used along with the appropriate series E blades: Model: D8x8a D10x10a D8x8a + E8a Cube size: 8 x 8 mm 10 x 10 mm D10x10a + E10a Order no.: 120.290 120.291 Slicing blades...
- Page 15 Removing and installing cutting blades CAUTION! Never turn the safety close knob when the device is in use, always turn the device off first. • Loosen the safety close by turning the knob counter-clockwise. • Lift the pressing lever and open the safety cover. •...
-
Page 16: Cleaning And Maintenance
6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power socket (pull the power plug!!!) and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. -
Page 17: Safety Instructions For Maintenance
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
