Reflecta CyberView X5 MF User Manual page 25

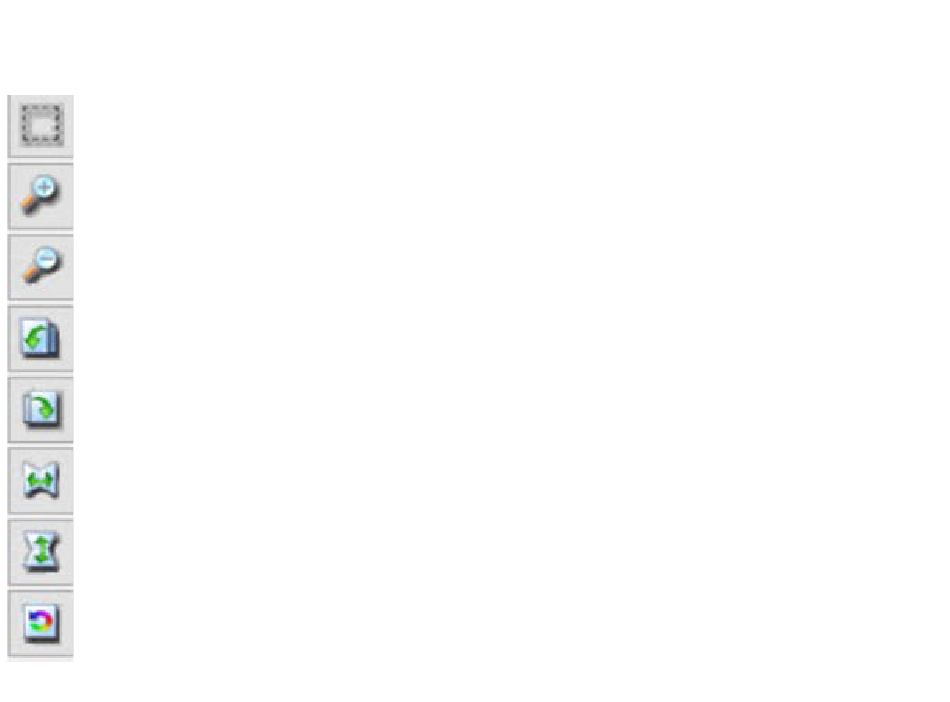

CyberView X Left Tool bar diagram
These tools become available when an image is prescanned first
Crop Tool: Select scan area: more than one selection can be made at a time.
Zoom In: To magnify the image where the cursor is currently located. The image will be magnified
with every click until the maximum multiple (1000%) is reached.
Zoom Out: To reduce the size of the viewed image click the Zoom Out cursor to the desired area,
the image will reduce by half with every click until the lowest multiple (25%) is reached.
Rotate 90 Left: To rotate the image counter clockwise 90 degrees.
Rotate 90 Right: To rotate the image clockwise 90 degrees.
Flip Horizontal: To Flip the image 180 degrees horizontally.
Flip Vertical: To Flip the image 180 degrees vertically.
Revert: Discard all modifications and restores the image back to the original state in preview
windows.
