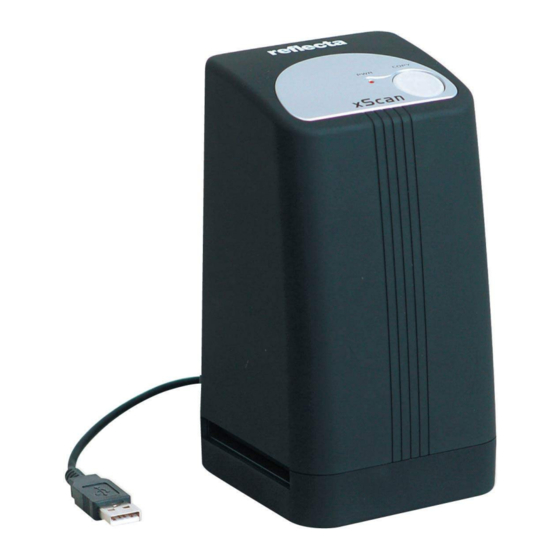

Reflecta xScan Film Scanner User Manual

Film scanner
Hide thumbs

Advertisement

Quick Links

Download this manual
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the xScan Film Scanner and is the answer not in the manual?

Questions and answers

Related Manuals for Reflecta xScan Film Scanner

Summary of Contents for Reflecta xScan Film Scanner

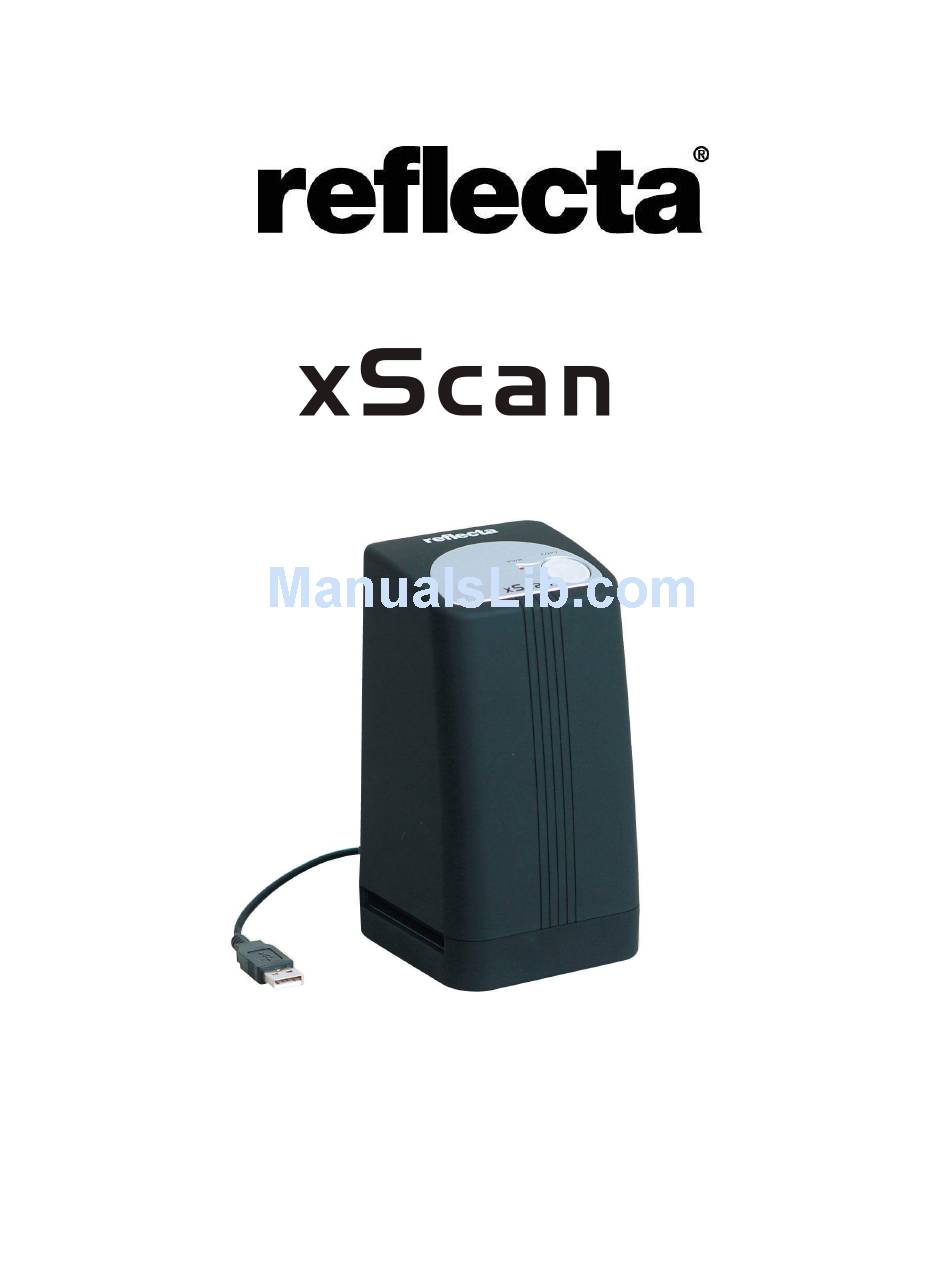

  • Page 1 User manual...

  • Page 2: For Customers In Europe

    For customers in North and South America For customers in USA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: For customers in Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
  • Page 3 1. Name of parts Note: This film scanner supports Windows XP and Vista (32-bits) via USB 2.0 only. We strongly suggest using a clean, dry, non-alcohol cotton swab to insert into the film scanner slot and clean the glass surface periodically to produce a clear image.
  • Page 4 2. How to install a film into the film holder a. Open the film holder as illustrated b. Put a film in the film slot as shown c. Close the film holder...
  • Page 5 3. Install the software and driver To use the film scanner you need to install the software driver and ArcSoft PhotoImpression 6 in advance. • Installing Driver 1.Turn on the computer. 2.Insert installation CD into the CD-ROM drive and the installation CD menu will appear.
  • Page 6 Recommended to select “Install the software automatically.
  • Page 7 Choose “continue anyway” button. 3.Select “Finish” button to complete the installation.
  • Page 8 • New Hardware Wizard ( Vista ) After connecting the film scanner to the computer with USB cable, the new hardware wizard will detect the new device. Follow the instructions on screen. Recommended to select “Install the software automatically. Choose “Don’ t show this message again for this device” button.
  • Page 9 Choose “Install this driver software anyway” button. 3.Select “Finish” button to complete the installation.
  • Page 10 4. Connect film scanner and your computer with the USB cable Note: For first time user, please do not plug the film holder included with film slot into the film scanner while connect the scanner with the computer. You will see the PWR LED is red 5.
  • Page 11 In select the device option make sure OVT scanner is displayed. When users start the operation, the picture will show on “Normal quality”. Then it is user’s choice to select “TIF” or “JPG”. It is recommended to select “JPG” format. Pic2 Select the location to save the pictures 1 Select the type of film you wish to copy along with the color depth and DPI.
  • Page 12 Pic4 You can adjust the location of the film by moving the film holder, the film holder can be moved forward only one way. Pic5 Click “Snap Shot” or press the “Copy” button and the “Snap Shot” will appear in the smaller window to the right.
  • Page 13 Click exit and you will see the picture in the main Arcsoft window as below. To ensure the best image quality, the scanner balances the sensor for each picture this may take 3 or 5 sec. depending on the image complexity and your computer hardware.
  • Page 14 PIC 6 Click the “format” to find out the resolution of the picture. 6. Now you can start to edit the picture as you like: First you are supposed to select the picture by clicking at the picture. And then use the Arcsoft tools to edit the pictures.
  • Page 15 • Select the folders you want to scan -Let' s you choose the folders for scanning. View Full Screen/Play (F4) Plays or displays the first selected file in full screen view. - Main Buttons Get Photos Acquire from Scanner...
  • Page 16 Here you can: • Acquire images from connected TWAIN compliant devices such as scanners and some digital cameras. • Assign names to image files as they are acquired (using today' s date or a descriptive word). How to acquire images from a TWAIN compliant device: Select a scanner or other TWAIN device from the drop down list.
  • Page 17 In addition to the large photo workspace, the Photo Editing Tools module includes five distinct sets of controls: Enhance The Enhance function includes two types of controls: Auto Enhance Click "Auto Enhance" button to improve the overall quality of your pictures with a single click.
  • Page 18 How to fix the color of a photo: Drag the color balance sliders to make the photo color appear more natural. Add red or yellow to make the photo warmer. Add blue or green to make the photo cooler. Drag the Lighter/Darker slider to the left to reveal details hidden in a dark photo or to the right to make a faded photo look new again.

  • Page 19: Blur Background

    5. Click "Undo" if you make a mistake or don' t like the result. Crop This feature enables you to trim photos for dramatic effect or cut off the ugly/distracting parts of a picture. How to use crop: Choose the crop orientation (portrait or landscape). Select a fixed proportion for the crop rectangle (4:6, 5:7, 8:10) or choose "Custom"...
  • Page 20 Drag the first slider to make the transition between the blurred and non-blurred area sharp or smooth. Drag the second slider to increase or decrease the amount of blur. Click "Apply" if you like the result. Click "Cancel" if you do not. Saving Your Results When you' re done editing a photo, click Save As to save your results.
  • Page 21 Clone The Clone tool is good for removing unwanted elements from a photo. It can also be used for fun effect, like moving a nose from one person to another. How to use the Clone tool to remove a telephone pole from the background of a photo: Establish a source point for the Clone tool by holding the Shift key and clicking on an area of the sky that you want to use to paint over the telephone pole.
  • Page 22 Paint Brush Let you "paint" on your image when you click and drag the mouse. Please click and drag the sliders below to change the brush size and transparency. Line Draw a straight line in the photo. Please click and drag the sliders below to change the line width and transparency.
  • Page 23 6. Specification Interface: USB 2.0 only Image Sensor: 1/1.8” inch 5 mega CMOS sensor (5,174,400 pixels) Lens: F no.= 2.0, 4 Glass elements, Half-field Angle=15 Frame Rate (Max.): 5M(2592x1944) 2 fps, SXGA (1280X960) 15 fps Focus Range: Fixed focus Exposure Control: Automatic Color Balance: Automatic...
