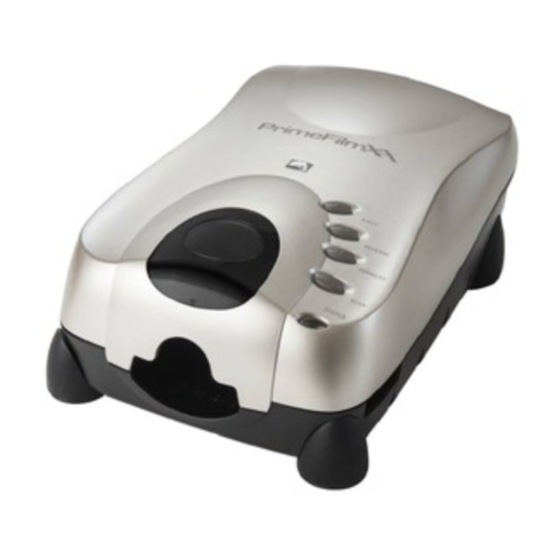

CyberView
X5 MF
User's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberView X5 MF and is the answer not in the manual?

Questions and answers

Related Manuals for Reflecta CyberView X5 MF

Summary of Contents for Reflecta CyberView X5 MF

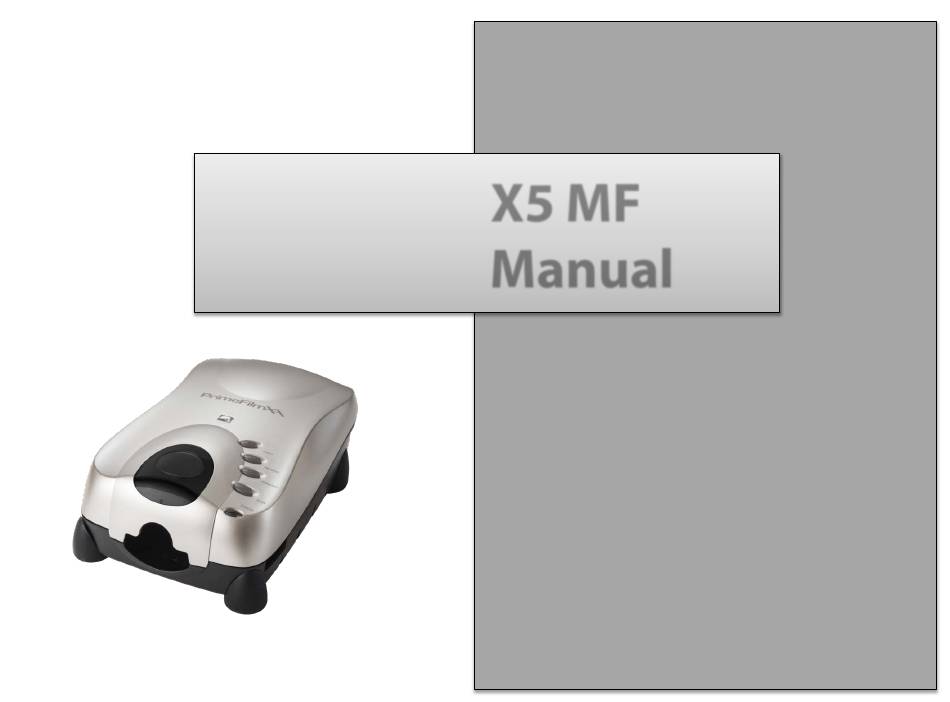

  • Page 1 CyberView X5 MF User’s Manual...
  • Page 2 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Getting Started Quick Installation Guide (QIG) Installing Software and Driver Installing Hardware Inserting 35mm Slides Inserting 35mm Film strips Additional Features One Button Scan (PC ONLY Feature) How to Scan Film and Slides STEP 1 - Acquire Driver STEP 2- Select Film Type STEP 3 - Optional Prescan STEP 4 - Set Scan Settings...

  • Page 4: Getting Started

    GETTING STARTED Check the package content before getting started. For Quick Installation please refer to Quick Installation Guide. (Ref. Pg. 11) Important! Save the original box, receipt and packing material for future shipping needs. Package Contents • Film Scanner. • Power Adapter Warning! Using any other power adapter may severely damage the scanner and will void the product warranty.
  • Page 5 Operating Ambient Temperature Range 50º to 104ºF (10º to 40ºC) Note: Do not turn on the scanner unless it is within this range. If the scanner has been stored or transported outside of this range, allow it to return to within this range before turning it on. Operating Ambient Humidity Range 15% to 76% relative humidity (non-condensing) Note: If the scanner is stored or to be transported in cold temperature...

  • Page 6: Quick Installation Guide (Qig)

    QUICK INSTALLATION GUIDE INSTALLING SOFTWARE AND DRIVER Installing Scanner Driver NOTE: Make sure the scanner is NOT connected to the computer during the Cyber- View X 5.0 driver installation. Download the CyberView X scanning software from the website Download Drivers Click Here PC –...

  • Page 7: Installing Hardware

    Installing Hardware a. Connect the slide scanner to a power source. 1. Locate the power switch on the lower left t side back of the scanner. Make sure the scanner is TURNED OFF. 2. Plug the AC adapter into an AC power source FIRST before plugging it into the scanner. 3.
  • Page 8 Attention Before Scanning…Make sure there is no filmstrip inside scanner before you insert the slide and there is no slide inside scanner before you insert the filmstrip. Please note the slide and filmstrip cannot be put into the scanner at the same time. Mounted Slides 1.

  • Page 9: Inserting 35Mm Film Strips

    Inserting Filmstrips 1. Insert the filmstrip with emulsion side up from the left film entrance. 2. Scanner will auto load and position the first frame in the center of the viewing window, if the first frame is not at the correct position, please move it by clicking “FORWARD“ or “REVERSE“ button and you can also move it via the fine tuning function in CyberView interface.

  • Page 10: Additional Features

    Additional features Buttons on the scanner Eject - Ejects the Film strip Reverse - Reverses the strip one frame Forward - Advances the film one frame Scan - See One Button Scanning below One Button Scan (PC ONLY) 1. FIRST you must Open the CyberView software (see page 11 to acquire the CyberView driver program) 2.

  • Page 11: Step 1 - Acquire Driver

    HOW TO SCAN STEP 1 – Turn on the scanner Wait for the flashing light to come on steady indicating the hardware is ready to use. Acquire Driver (For PC User) Open CyberView from Start – All Programs –CyberView or desktop icon (For MAC User) Open Macintosh Hard drive –...
  • Page 12 HOW TO SCAN…cont. STEP 4 – Set Scan Parameters Notice: Higher scanning resolutions result in greater scanning time and hard disk space requirements. a. Resolution The default scanning resolution is 1000dpi, additional resolution options are listed below. b. Color Depth Choose between 8 and 16bit.

  • Page 13: Step 5 - Set Scan Preferences

    Set Scan Preferences Select Scan - Preference - Film Type - Scan Setting or click the Settings icon on the main user interface This opens the main settings window...
  • Page 14 Scan Setting...
  • Page 15 Advanced settings...
  • Page 16 Default Scan Area...

  • Page 17: Step 6 - Scan

    Scan Prescan – Prescan Current or Prescan ALL (strip 3 -40 frames) Calibrating Prescanned images appear here, NOTE: Scanned images Measuring the films density DO NOT appear in the CyberView window Scan - Scan- Scan Current Frame: Scan current image in the viewing window Scanning Scan selected: images chosen from strip (if you performed an optional Prescan) Example 1 &...

  • Page 18: User Interface

    USER INTERFACE...
  • Page 19 There are four major parts of the CyberView X 5 user interface: I. Main Window Area [Fixed Windows] II. Preview Window Area [Fixed Window] III. Active Frame Setting Area [Floating Window] I. Main Window Area [Fixed Windows] Menu Commands - Scan Prescan - Prescan Current Frame: Pre-scan the existing slide.
  • Page 20 Menu Commands - Image Adjustment a. Image Adjustment 1. Variations: Generates different views of image with options to make changes to highlights, mid-tones, etc.
  • Page 21 2. Color Balance To adjust the brightness, contrast, saturation, and color (CMY or RGB) of the image. Comparisons between before and after adjusted images are shown for reference Example: If a previewed image appears too dark, use the “Brightness” slider in the “Color Balance”...
  • Page 22 3. Curves and Levels Adjust image settings by moving Curve and Levels settings. Comparison between before and after adjustment is displayed for reference. Example: When the previewed image appears to be too dark, adjustments with the Input slider in the Curves and Levels window can be made to correct the image.
  • Page 23 Menu Commands - Windows 1. Exposure Setting: To adjust the exposure time (R, G, B) press ”Reset” to restore to the default setting. Menu Commands - Help • Update: Firmware: Upgrade the firmware version, select the path where the file of firmware has been saved.

  • Page 24: Preview Window Area

    II. Preview Window Area [Fixed Windows] Prescan: Pre-scans the current film, or press drop down for more options. Scan: Scan film, begins the scan process or press drop down button for more options Image Adjustment: Accesses the image adjustment area after a Prescan has been performed Press drop down button for more options.
  • Page 25 CyberView X Left Tool bar diagram These tools become available when an image is prescanned first Crop Tool: Select scan area: more than one selection can be made at a time. Zoom In: To magnify the image where the cursor is currently located. The image will be magnified with every click until the maximum multiple (1000%) is reached.
  • Page 26 II. Preview Window Area [Fixed Windows] (Continued...) Image Alignment Tool Frame adjustment tool (TA BS) if your film is miss aligned after insertion you can use these TA BS on the ruler to adjust alignment by dragging the TA B to align with the edge of the film frame You can select the ruler measurement unit “in“-“cm“-“px“...
  • Page 27 Status Line In the lower left hand corner, the color level (RGB: red, green, blue) and coordinates of the location [ex: I] are displayed. The zoom scale, the current frame location and how many areas selected to scan (if you see Selections 2 or higher indicates: Multiple scan areas on one slide [ex: II].

  • Page 28: Thumbnail Panel Area

    IV. Thumbnail Panel Area [Floating Windows] Images only appear here in Prescan mode, scan to file goes directly to the hard drive, this window remains blank as does the main CyberView window. Displays thumbnail view of pre-scanned images. By default all pre-scanned images are selected.
  • Page 29 III. Scan Setting Area [Floating Windows] Normal (continued…) Scan Mode Normal: Scans using normal DPI: Set your scanning resolution speeds, Fast: Scans 30% faster, Quality : Color Depth: 8 or 16 bits per color Scans slower for more detailed images Channel, resulting in a 24 or 48 bit image such as optical and dental x-rays...

  • Page 30: Technical Support

    TECHNICAL SUPPORT CyberView For more information on our film scanners, please visit Pacific Image Electronics For Support and driver updates Driver and Firmware updates Contact Us...
