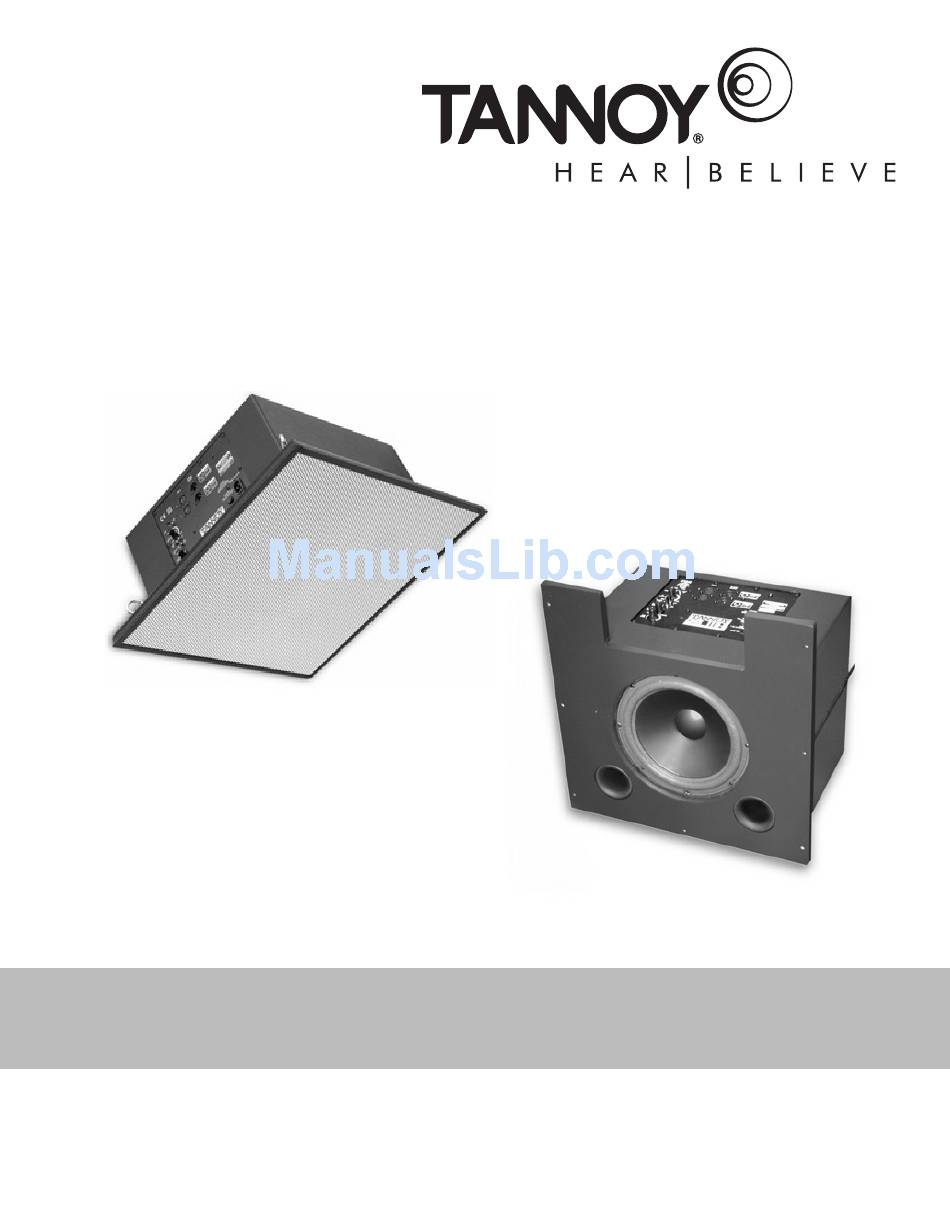

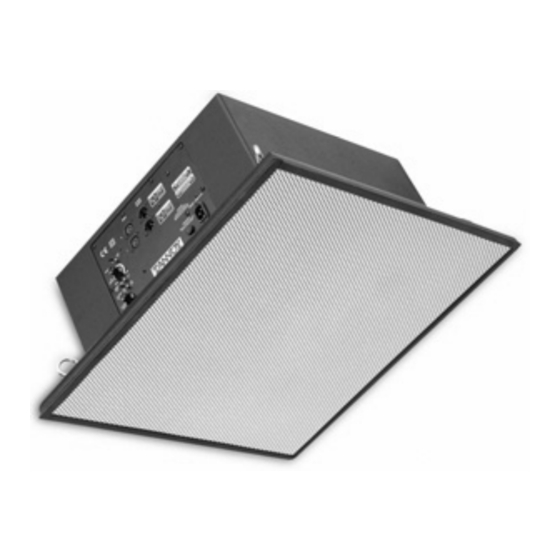

- Page 1 110 SERIES SUBWOOFERS 110TB (Tile Bridge) 110SR (Sheet Rock) 110 Series Subwoofer O W N E R ’ S M A N U A L...
-
Page 2: Table Of Contents
Tannoy France O W N E R ’ S ACTIVE 110 INPUT MODULE CONTROLS MECHANICAL INSTALLATION - 110TB MECHANICAL INSTALLATION - 110TB MECHANICAL INSTALLATION - 110TB MECHANICAL INSTALLATION - 110SR MECHANICAL INSTALLATION - 110SR MECHANICAL INSTALLATION - 110SR DIMENSIONS 110TB 110SR... -
Page 3: Warranty / Damage Claim
WARRANTY / DAMAGE CLAIMS Congratulations on the purchase of your Tannoy 110 Series Subwoofer. No regular maintenance of the subwoofer is necessary. All Tannoy professional loudspeaker products are covered by a 5 year warranty for loudspeaker components and one year for electronic component from the date of purchase subject to the absence of misuse, overload or accidental damage. -
Page 4: Cabinet Options
A unique benefit of the 110SR is that it remains serviceable, and fully removable, from the ground after installation by simply removing the low profile grille. Fire rating is NFPA class A. -
Page 5: Input Module Options
INPUT MODULE OPTIONS PASSIVE (STANDARD) The basic connection panel supplied with any of the 110 Series Subwoofers is a 6 Ohm speaker level input via barrier strip. It is highly recommended that the audio signal be lo pass filtered via an outboard active crossover. This input module is ideal for systems requiring several subs that share a common outboard crossover and amplifier. -
Page 6: Passive 70 Volt With Lo Pass Filter
INPUT MODULE OPTIONS PASSIVE 70 VOLT WITH LO PASS FILTER PASSIVE 110 INPUT MODULE CROSSOVER 150W MADE IN CANADA ACTIVE (ACTIVE SUBWOOFER WITH 2-CHANNEL FEED-THROUGH) A dedicated power amplifier that really brings your 110 Series Subwoofer to life. Balanced line level inputs with switchable, balanced 80 Hz high-pass feed through’s provide appropriate signals to your satellite speaker’s amplifier. -
Page 7: Active 110 Input Module Controls
ACTIVE 110 INPUT MODULE CONTROLS ACTIVE MODULE WITH OUTPUT FOR 2 SPEAKERS ACTIVE INPUT MODULE CONTROLS 1) INPUT - Two channel (stereo) balanced line level input. Connect via XLR male plugs from your signal source.Use high quality 2 conductor shielded audio cable ( Belden 8451) for runs of up to 200’. The XLR pinout is: pin 1 (shield), pin 2 (signal high), pin 3 (signal low). -
Page 8: Mechanical Installation 110Tb
MECHANICAL INSTALLATION 110TB NEW / EXISTING CONSTRUCTION INSTALLATION PROCEDURES: Before you begin: Please read and understand all of these instructions thoroughly before beginning any work. Note that construction work for the installation of all Tannoy products must be done to local building codes by qualified, licensed installers. -
Page 9: Mechanical Installation 110Tb
MECHANICAL INSTALLATION 110TB 2’ x 2’ Tile grid installation procedures: The 110TB was designed for quick and simple installation directly into a 2’ x 2’ T-bar ceiling grid (Figs. 9 & 10). Remove several tiles around the installation location to gain easier access for placing the subwoofer in the ceiling grid. -
Page 10: Mechanical Installation 110Tb
MECHANICAL INSTALLATION 110TB Fig. 8: Wire rope detailing Fig. 9: Installed subwoofer top view, Fig. 10: Completed subwoofer suspension or seismic tether. only two chains attached. installation. Fig. 11: Installing the hanger bolt. Fig. 12: Installed hanger bolt. Fig. 13: Suspension points with turnbuckles installed. -
Page 11: Mechanical Installation 110Sr
Site preparation and installation procedures: Please note that the 110SR is designed for installation in a ceiling with exposed ceiling joists. The Pre-installation Ring must be secured to the support structure; drywall alone will not support the weight of the subwoofer. Make certain that there is sufficient clearance above the joist (minimum 12”) for the subwoofer installation. -
Page 12: Mechanical Installation 110Sr
110SR in place. You must align the cutout on the 110SR with the same control access cutout (indicated with red paint) on the pre- installation ring, that will allow you to make adjustments to the system later. Orient the signal cable to the cutout and prepare to make the AC mains connection before completing the next step. -
Page 13: Mechanical Installation 110Sr
MECHANICAL INSTALLATION 110SR Fig. 4: Pre-installation ring on steel Fig. 5: Cutting drywall using the Rotozip™. Fig. 6: Completed install showing the furring channel prior to drywall reveal of the pre-installation ring being placed. relative to the ceiling board. Fig. 9: Completed subwoofer detail. -
Page 14: Dimensions 110Tb 110Sr
DIMENSIONS 110TB 23 5/8”" 23 5/8”" FRONT VIEW DIMENSIONS 110SR 10" 4" 19" 19" BOTTOM VIEW 14” 13” 12 1/4” 1 1/4” SIDE VIEW SHIPPING WEIGHT WITH ACTIVE MODULE: 40 LBS. 2” 19 5/8” 18” 17 3/4” TOP VIEW SHIPPING WEIGHT WITH ACTIVE MODULE: 37 LBS. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS ACTIVE MODULE Frequency Response: Power Rating: Maximum SPL (2) 2 1 meter: Driver Complement: LF Cutoff (-3 dB): Inputs: Outputs: Protection Limiter: Input Level: Lo Pass Filter: All Pass: High Pass Filter: High Pass Output: High Pass Output Bandwidth Amplifier Type: AC Power Requirement: Power Consumption:... - Page 16 Tannoy United Kingdom T: +44 (0) 1236 420199 Tannoy North America T: 00 1 (519) 745 1158 Tannoy Deutschland T: 00 49 (0180) 1111 881 E: info@tannoy.com Tannoy France T: 00 33 (0) 1 7036 7473 E: enquiries@tannoy.com E: inquiries@tannoyna.com E: ventes@tannoy.com...
