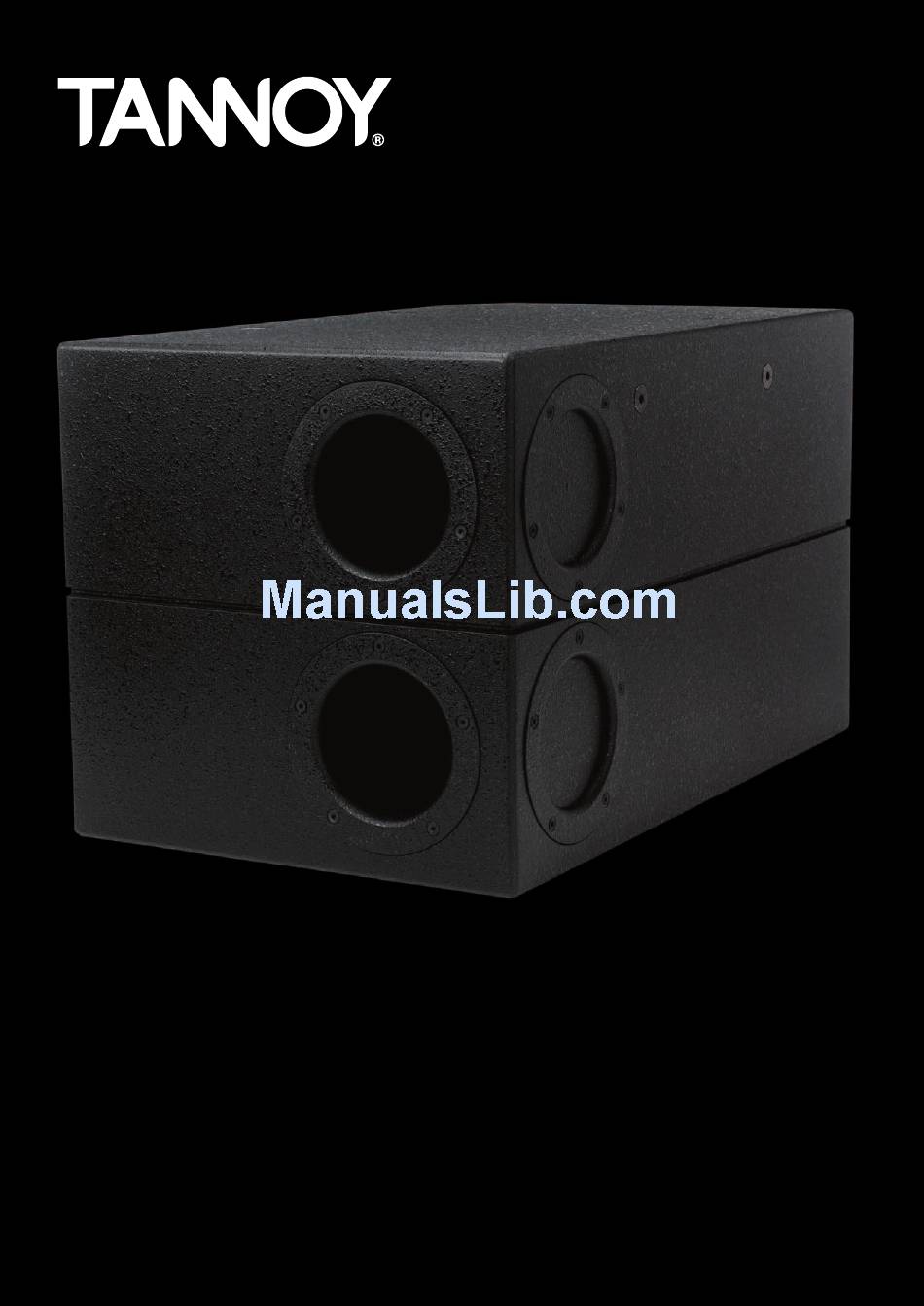

- Page 1 VS10 BP Owners Manual...
-
Page 3: Table Of Contents
CONTENTS Introduction 2. Unpacking 3. Connectors/Cabling 4. System Configurations 5. Amplification & Power Handling 6. Equalisation/Placement 7. Dimensions 8. Performance Data 9. Technical Specifications 10. Rigging & Suspension 11. System Configurations & OEM Controllers 12. VS15BP Service Parts & Accessories 13. -
Page 4: Introduction
Introduction The Tannoy VS10BP is a compact, versatile subwoofer system, designed to extend the low frequency response of the V series loudspeakers and increase system headroom. The VS10BP will extend the frequency response of these systems to below 40Hz and is capable of providing output levels normally be associated with considerably larger enclosures. -
Page 5: System Configurations
versatility of the system allowing relative attenuation between the subwoofer and satellite loudspeakers and provide delay if required as well as driver protection and optimal integration. VS10BP Termination Panel System Configurations. Configuration 1. The most basic configuration would be a VS10BP and up to two-8ohm satellite amplifier. -
Page 6: Amplification & Power Handling
optimal crossover points are also afforded by the introduction of a system controller. A loudspeaker driven actively as shown below offers a number of other performance advantages, such as increased system headroom. Audio program materiel is made up of many different frequencies and harmonics. In music materiel, most of the energy is in the low frequencies, with less in the highs. -
Page 7: Equalisation/Placement
load conditions. A loudspeaker system is highly reactive and with transient signals it can require more current than the nominal impedance would indicate. Generally a higher power amplifier running free from distortion will do less damage to the loudspeaker than a lower power amplifier continually clipping. It is also worth remembering that a high powered amplifier running at less than 90% of output power generally sounds a lot better than a lower power amplifier running at 100%. -
Page 8: Dimensions
KEYS Dimensions 365.0 590.0 355.0... -
Page 9: Technical Specifications
Tannoy operates a policy of continuous research and development. The introduction of new materials or manufacturing methods will always equal or exceed the published specifications which Tannoy reserve the right to alter without prior notice. Please verify the latest specifications when dealing with critical applications. -
Page 10: Rigging & Suspension
Qualified personnel trained in safe rigging practices should only suspend the system. Whenever a Tannoy Professional loudspeaker is fixed to a surface using a Tannoy Professional hardware device, the installer must ensure that the surface is capable of safely and securely supporting the load. -
Page 11: System Configurations & Oem Controllers
With the vast array of digital loudspeaker management systems available it is inevitable that the user may opt to use a controller other than a Tannoy controller as part of a large scale integrated system. The VS10BP has been designed to need no external equalisation to overcome system limitations. -
Page 12: Warranty
Please confirm current specifications for critical applications with your supplier. Declaration of Conformity The following apparatus is/are manufactured in the United Kingdom by Tannoy Ltd of Rosehall Industrial estate, Coatbridge, Scotland, ML5 4TF and conform(s) to the... - Page 13 Details of the Apparatus: Tannoy Contractor Loudspeaker Model Number: VS10BP Associated Technical File: EMCVS10...
- Page 15 F: +44 (0) 1236 428230 E: enquiries@tannoy.com Tannoy North America T: (519) 745 1158 F: (519) 745 2364 E: inquiries@tannoyna.com Check periodically for the latest manual revision that will always available for download from www.tannoy.com The revision number of this manual is located below...
