Summary of Contents for NEUTRIK NA2-IO-DPRO

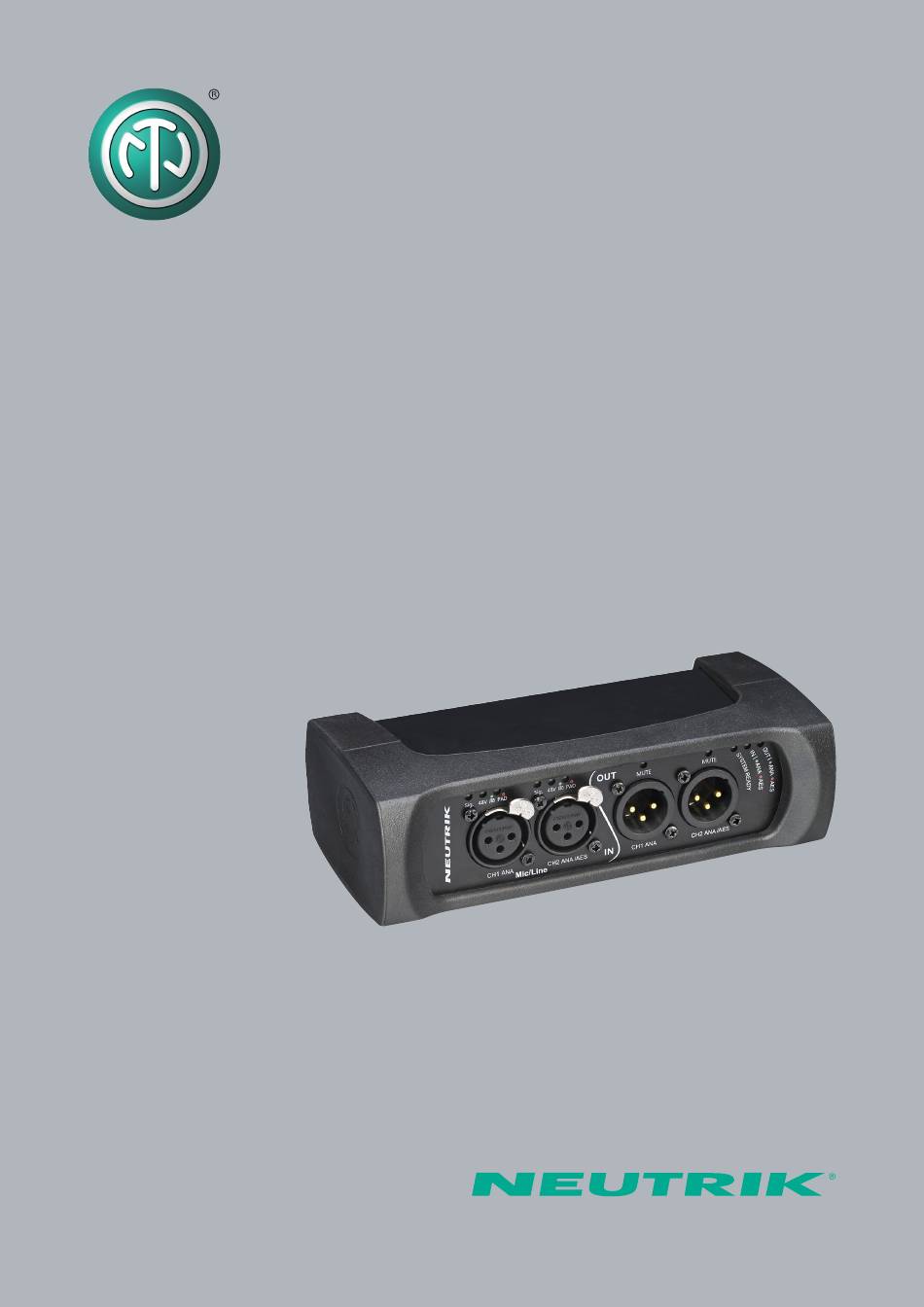

- Page 1 User Manual NA2-IO-DPRO for Mic, Line, AES I/O to DANTE Interface...
- Page 2 This user manual is protected by copyright. The user manual must not be duplicated, reproduced, microfilmed or translated, nor must it be converted to be saved and processed in IT systems, neither in the form of excerpts nor in full, without the express written authorization of Neutrik. Copyright by: © Neutrik® AG...
-
Page 3: Table Of Contents
5.5.3 Selecting the device to edit ......25 5.5.4 Setting input parameters .......25 5.5.5 Setting output parameters ......26 5.5.6 Presets ............27 5.5.7 Identify device ..........30 5.5.8 Reset device ..........31 User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 4: About This Document
Pass this user manual on to every user, e.g., by lending it, or to the future owner of the product. If this user manual is lost or damaged, a copy of it can be downloaded from the Neutrik's website (www.neutrik.com). -
Page 5: Explanation Of Symbols
Only carry out these tasks when using Windows. 1.4 Target group This user manual is intended for sound engineers and professional personnel who have detailed experience in sound and event technology. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 6: Safety
• Consult the dealer or an experienced radio/TV technician for help. w NOTE Changes or modifications made to this equipment not expressly approved by Neutrik may void the FCC authorization to operate this equipment. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 7: Declaration Of Conformity
2.3.1 Declaration of conformity The device meets all the relevant EU directives and therefore has the CE and EAC marking. The Declaration of Conformity may be viewed at www.neutrik.com/en/approvals-and-certificates. 2.4 Important safety instructions Avoid property damage to the DPRO Adapter due to unsuitable operating and environmental con- ditions: Never immerse in water. -
Page 8: Components And Accessories
Item no. DPRO Adapter (device) NA2-IO-DPRO Mounting brackets NA-MB-KIT (Kit includes 2 brackets, 2 fixing screws, 2 torx screws and 2 spacers) Rack panel NRP1RU-2A Removable rubber protection NA-RC User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 9: Description Of The Product
4.2 Device Pos. Description Sheet metal housing Rubber protection (removable) 4.3 Connections and displays 4.3.1 Overview front User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 10: Overview Rear
Secondary Dante® Interface/Feedthrough/PoE • LED off: no Ethernet connection. input (Redundant mode for standalone redundant • purpose, Switched mode for daisy-chaining) Primary Network connection (RJ45) Primary Dante® Interface/PoE input User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 11: Modes And Switching Logic Of The Dpro Adapter
Do not connect AES/EBU signal to input 1. Do not connect amplifiers or other analog devices to output 2 (AES) if there is no connection on output 1 (ANA). User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 12: Dpro Controller
Shows the status of the selected device. Output settings Input settings Link to Dante Controller Connected devices The selected device is marked with a green line on the left side. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... - Page 13 Click on the button to identify the selected device. LEDs of XLR Inputs and XLR Outputs of the device flash up for 10 seconds. Settings button Click on the button to open the Settings window. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
- Page 14 Activate this function to apply 16 dB attenuation. Link/Unlink button Click this button to link or unlink the input/output signals. Gain (only with MIC signal) Adjusts the input sensitivity. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
- Page 15 The Meter bar allows the signal level to be monitored on both input and output. Pos. Description Red area: 0 dBFS to -3 dBFS Yellow area: -3 dBFS to -18 dBFS Green area: -18 dBFS to infinite dBFS User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
-
Page 16: Create Preset Page
Shortcut: Ctrl/Cmd + N • Button / Screen text Description CANCEL Close the window without saving the preset. SAVE PRESET Save the preset as .dap file on the computer. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 17: Load Preset Page
Preview window of the settings which will be loaded with the preset. Close the window without loading the preset. CANCEL LOAD PRESET Load preset with the selected device settings. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... - Page 18 AES mode, device works in analog mode). More information about the modes and switching logic please find in section "4.3.3 Modes and switching logic of the DPRO Adapter" on page 11. Icon Description Warining Icon. Indicates a mismatch. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
-
Page 19: Reset Devices Window
Current Dante firmware version installed on the device. IP Address IP address of the device in the network. FIRMWARE Opens a window to upgrade the Neutrik's firmware on the device. UPGRADE RESET DEVICE Reset device to factory settings. User Manual – DANTE... -
Page 20: Network Settings Window
Upgrading Progress bar informs about the firmware upgrade progress. Firmware to Version X.X Firmware upgrade Information that firmware upgrade is complete. Device will reboot after sucessful upgrade. completed sucessfully User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 21: About Software Window
General information about the app. • Menu: Help > About Software Button / Screen text Description Version of the DPRO Controller app. Software Version Version Date Release date of the app version. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 22: Operation
Do not connect AES/EBU signal to input 1. Do not connect amplifiers or other analog devices to output 2 (AES) if there is no connection on output 1 (ANA). Front Rear User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 23: Power Setup Using A Switch With Poe Support
PoE please find in section "7.2 PoE (Power over Ethernet)" on page 41. Do not use two different passive PoE injectors (such as from different manufacturers), be- cause this might cause a short circuit and make the device inoperable. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 24: Applications
In the Switched mode, you can daisy-chain several devices to increase channel count. Only passive injectors are able to deliver steady power to all the daisy-chained units. For daisy-chaining, use only a PoE Injector with no class. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 25: Linking Devices With The Dante
DPRO Controller App is available for PC and Mac, free of charge. Please review the system requirements in the technical data before installing the app. Download the app on the Neutrik website: www.neutrik.com/en/support/downloads. Installation on Windows Execute the downloaded .exe file and follow the installation steps. -
Page 26: Connecting Devices With The App
Click the 80Hz button. Activate/deactivate phantom power: Click the +48V button. Adjust gain: Click and hold the gain knob and move the mouse. Link/unlink input channels Click the Link/Unlink button. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 27: Setting Output Parameters
MUTE button. Adjust output volume: Click and hold the fader button and move the mouse up or down. Jump fader to 0: Hold Ctrl/Cmd and click on the fader. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 28: Presets
In the drop down menu, select the Input Mode and the Output Mode (None, Analog, AES) depending on your application. Set your parameters. Click the SAVE PRESET button to save the preset as .dap file on your computer. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... - Page 29 In the drop down menu, select your devices. Check if the connected input/output signals matches with the preset modes (ANA/AES). To load the preset, click the LOAD PRESET button. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
- Page 30 If no matching preset is available, create a new preset. More information about the modes and switching logic please find in section "4.3.3 Modes and switching logic of the DPRO Adapter" on page 11. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
-
Page 31: Identify Device
Option 2: Click the device status overview the identify device button Option 3: Use the shortcut Ctrl/Cmd + I. The LEDs of the device flash up for 10 seconds. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 32: Reset Device
Click in the menu Device > Reset Device…. The Reset Devices window appears. Select the devices you want to reset. Click the RESET DEVICES button. The devices are reset. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 33: Network Settings
IP address. Click the SET STATIC IP ADDRESS button. Reboot the device: Click the REBOOT NOW button. The static IP address is assigned to the device. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 34: Firmware Upgrade
Operation 5.5.10 Firmware Upgrade With the Firmware Upgrade function in the DPRO Controller app user can only upgrade the Neutrik's firmware of the device. To upgrade the Dante Firmware, please use the Dante controller Download the Firmware Upgrade on the Neutrik website: www.neutrik.com/en/support/downloads. -
Page 35: Accessories Assembly Instructions
Operation 5.6 Accessories assembly instructions w NOTE Use only original Neutrik screws to prevent damage to the device. 5.6.1 Mounting brackets The mounting brackets make it possible to mount the device in floor boxes, underneath tables, etc. Scope of delivery... -
Page 36: Rack Panel
Crosshead screwdriver Remove the 4 screws on the front of the device. Remove the rubber protection. Place the device in the rack panel. Fix the device with the four screws. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 37: After Operation
The DPRO Adapter does not contain any parts that can be maintained or repaired by the user. Only have the DPRO Adapter repaired by a specialist dealer authorized by Neutrik. Check the DPRO Adapter regularly for visible damage to the housings, controls, connections, cables and plugs. -
Page 38: Disposal
Dispose of packaging and packaging elements in accordance with the applicable local regulations. Take device components made of plastic, metal or other recyclables for reclamation in accordance with the applicable local regulations. User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... -
Page 39: Appendix
Signal-to-noise ratio > 112 dB, BW 22.4kHz, A-weighted THD + noise < 0.005% (20 Hz to 20 kHz, +4 dBu) Crosstalk -100dB, adjacent INPUT/OUTPUT channels (input gain = min.) User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08... - Page 40 –40 °C to +150 °C App Requirements min. 2 GB Display resolution min. 1280 x 1024 px Operating System Windows 7 or later MAC OS X 10.12 or higher User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
-
Page 41: Poe (Power Over Ethernet)
Power required by PoE class at the Powered Device (PD)w 802.3af 0.44 - 3.84 W 802.3af 3.84 - 6.49 W 802.3af 6.49 - 12.95 W 802.3at PoE+ 12.95 - 25.5 W User Manual – DANTE Adapter NA2-IO-DPRO | BDA 573 V1 2019/08...
