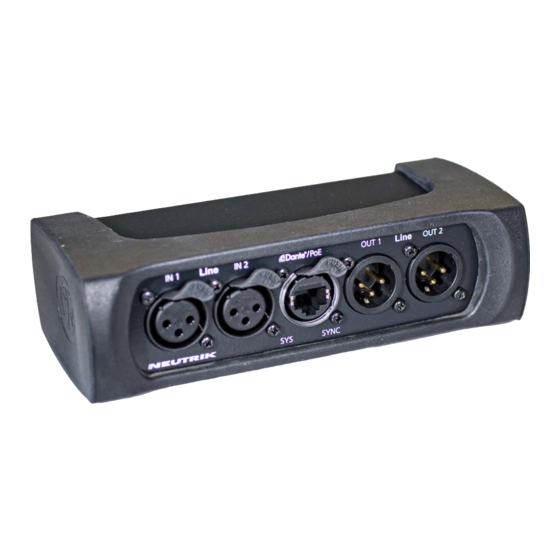

NEUTRIK NA-2I2O-DLINE Quick Start Manual

NA-2I2O-DLINE
NA-2I-DLINE
NA-2O-DLINE
Line I/O to Dante Interface
®
Quick Start Guide
Liechtenstein (Headquarters)
Neutrik AG, Im alten Riet 143, 9494 Schaan
T +423 237 24 24, F +423 232 53 93, neutrik@neutrik.com
Wichtige Hinweise
DE
Beachten Sie die Sicherheitshinweise in der Bedienungsanleitung.
Die Bedienungsanleitung zu diesem Gerät finden Sie als
PDF-Datei im Internet unter www.neutrik.com.
EN Important notes
Please read the safety information provided in the
User Manual. The User Manual for this device is available for
download as a PDF file from our website at www.neutrik.com.
Indicaciones importantes
ES
Tengaen cuenta las indicaciones de seguridad incluidas en
el User Manual (las instrucciones de empler). El User Manual
(Las instrucciones de empler) para este equipo puede
consultarse en la dirección de Internet www.neutrik.com.
FR Remarques importantes
Respectez les consignes de sécurité reprises dans le manuel
d'utilisation. Vous trouverez le manuel d'utilisation
de cet appareil au format PDF sur Internet à l'adresse
www.neutrik.com.
www.neutrik.com
BDA 655 – DANTE Adapter Quick Start Guide 2022/07 V1
1
Overview Variants
Balanced XLR inputs
NA-2I2O-DLINE & NA-2I-DLINE
Dante
SYS LED
®
Dante
SYNC LED
®
2
Connection setup
LINE IN LINE OUT
PoE switch
NA-2I2O-DLINE
PoE
etherCON
®
to the Dante
Line
IN 1 IN 2 / PoE OUT 1
TM
SYS SYNC
Important:
Requires a Power over Ethernet switch or a PoE injector
(802.3 af/at/bt).
or
LINE OUT
LINE IN
chassis for connection
network
®
Balanced XLR outputs
NA-2I2O-DLINE & NA-2O-DLINE
Line
OUT 2
Switch with
no PoE support
PoE
Injector
NA-2I2O-DLINE
PoE
Audio connection
Network connection
LINE OUT
LINE IN
100 / 240 V
