NEUTRIK NPP-TB Instruction Manual

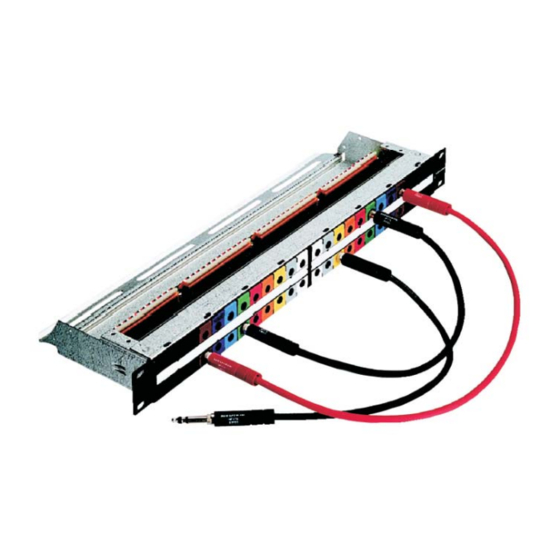

Patch panel “easy patch” | 48 tb jack
Hide thumbs

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
NPP-TB

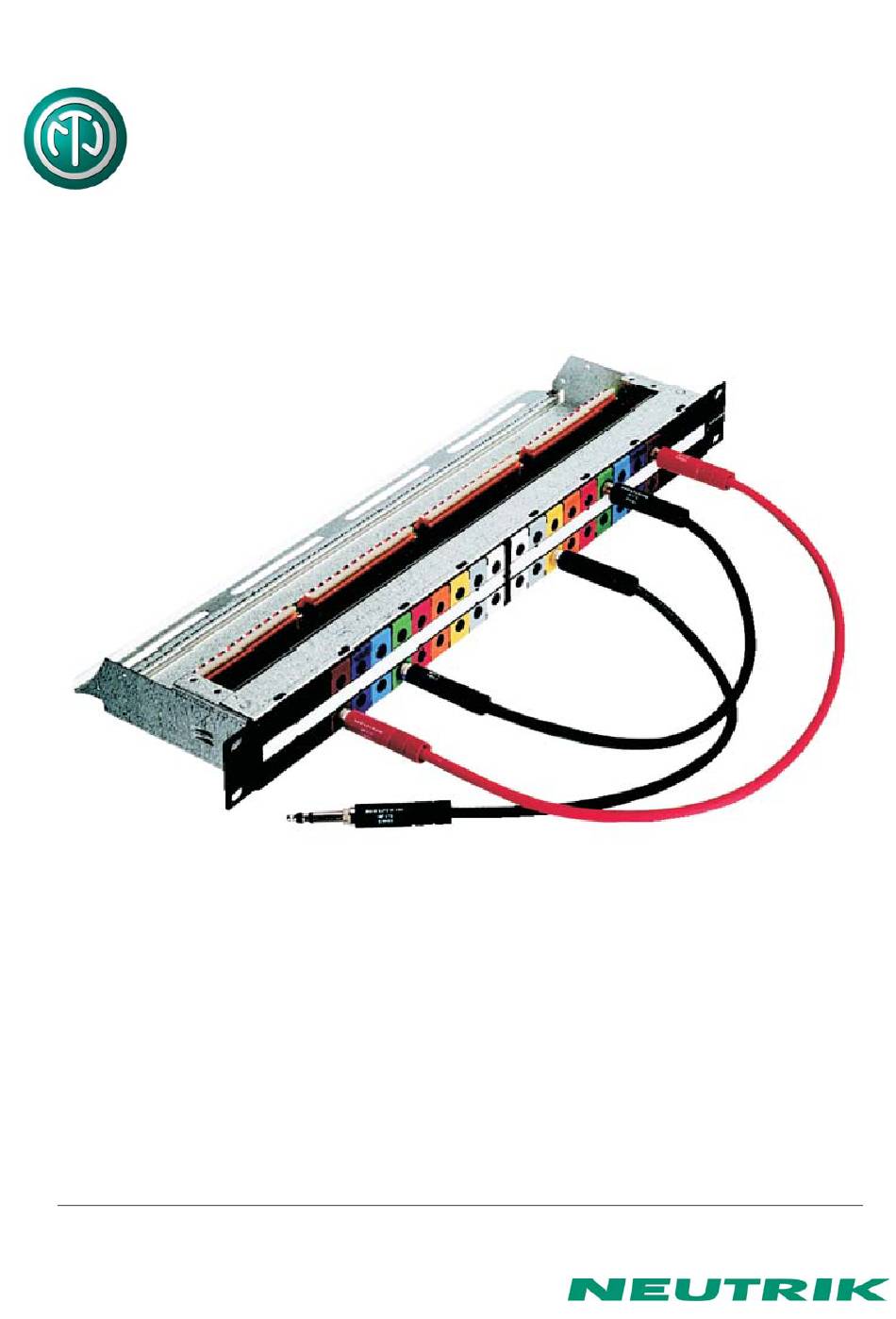

PATCH PANEL "Easy Patch"
NEUTRIK AG
NEUTRIK Zürich AG
Liechtenstein
Switzerland
Tel.: +423/237 24 24 Tel.: +41 44/736 5010
Fax: +423/232 53 93 Fax: +41 44/736 5011
www.neutrik.com
Draft. Nr.:
NPP-TB
03.08.2009
Update:
Data subject to change without prior notice. ©2007 NEUTRIK . ALL RIGHTS RESERVED.
NEUTRIK (UK) Ltd.
NEUTRIK USA INC.
Great Britain
USA
Tel.: +44 1983/811 441 Tel.: +1 732/901 9488
Fax: +44 1983/811 439 Fax: +1 732/901 9608
|
48 TB Jack
NEUTRIK Tokyo Ltd.
NEUTRIK France
Japan
France
Tel.: +81 3/3663 4733
Tel.: +33 1/4131 6750 Tel.: +49 8131/28 08 90
Fax: +81 3/3663 4796
Fax: +33 1/4131 0511 Fax: +49 8131/28 08-30
NEUTRIK Vertriebs GmbH
Germany/Netherlands/Austria

Advertisement

loading
Need help?

Need help?

Do you have a question about the NPP-TB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NEUTRIK NPP-TB

Summary of Contents for NEUTRIK NPP-TB

  • Page 1 Fax: +423/232 53 93 Fax: +41 44/736 5011 Fax: +44 1983/811 439 Fax: +1 732/901 9608 Fax: +81 3/3663 4796 Fax: +33 1/4131 0511 Fax: +49 8131/28 08-30 www.neutrik.com Draft. Nr.: NPP-TB 03.08.2009 Update: Data subject to change without prior notice. ©2007 NEUTRIK . ALL RIGHTS RESERVED.

  • Page 2: Table Of Contents

    NPP-TB Instruction Manual Index 1. Electrical configuration....................3 2. Grounding Variations ....................4 3. Wiring ..........................5 4. Cable retention to the unit....................6 5. Cannel Identification ....................7 6. Lettering strip.......................8 7. Technical data ......................11 Page 2 of 11...

  • Page 3: Electrical Configuration

    • fully normalled ..quickly and easily by jumper blocks individually for each channel. The delivery configuration for EASY PATCH NPP-TB is "Full Normalled". Circuit diagrams and jumper positions for the four configurations: Page 3 of 11...

  • Page 4: Grounding Variations

    NPP-TB Instruction Manual 2. Grounding Variations There are several possibilities for individual grounding. The following items correspond to the drawing. 1. Standard grounding is to connect the ground terminals (marked with an "S") with the shield of the incoming cable, individual grounds are not connected.

  • Page 5: Wiring

    NPP-TB Instruction Manual 3. Wiring Wire are connected to WAGO spring clamping devices. There is NO soldering or screwing necessary. Simply insert the stripped wire (6 mm) after pressing down the white key by means of a screwdriver. Lettering above the insertion holes: T ...

  • Page 6: Cable Retention To The Unit

    NPP-TB Instruction Manual 4. Cable retention to the unit The cable retention is at the back of the one piece metal housing. Simply put the cable onto the prismatic bar and attach it with cable ties as shown in the drawing.

  • Page 7: Cannel Identification

    NPP-TB Instruction Manual 5. Cannel Identification Easy Patch is equipped with all channel identification labels in color black. If you need to replace or change the label colors first remove the label by means of a small screwdriver. To insert a new label position it at the side of the lettering strip first, then press in the other side with your finger.

  • Page 8: Lettering Strip

    NPP-TB Instruction Manual 6. Lettering strip Between the top and the bottom connector row is located the lettering strip. To write on the paper strip lift the strip with your fingernail at the indentation on the left and right respectively of the Easy Patch and pull it out. Separate the paper and the Plexiglas, write the identification on the paper and insert it into panel from outside end to the center.
  • Page 9 NPP-TB Instruction Manual Wiring diagram vertical PCB Page 9 of 11...
  • Page 10 NPP-TB Instruction Manual Wiring diagram horizontal PCB Page 10 of 11...

  • Page 11: Technical Data

    NPP-TB Instruction Manual 7. Technical data Electrical Connector contact resistance: < 10 mΩ / Switch contact resistance: < 15 mΩ Insulation resistance: > 10 Ω @ 500 VDC / Dielectric withstanding voltage: 1000 VDC acc. IEC 512-2 Cross talk between stereo pairs: >...
