- Page 1 User Manual NA-2I2O-DLINE NA-2I-DLINE NA-2O-DLINE Line I/O to Dante Interface ™...
- Page 2 Document No: BDA 641 V4 Version: 2024/02 Language: English Manufacturer Neutrik ® Im alten Riet 143 9494 Schaan Liechtenstein T: +423 2372424 F: +423 2325393 E: neutrik@neutrik.com www.neutrik.com User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02...
-
Page 3: Table Of Contents
7 Application & Safety Instructions ................... 21 7.1 Assembly ........................21 7.2 Application ........................21 7.3 Operation ........................21 7.4 Cleaning ......................... 21 7.5 Damages ........................21 8 Product images ......................... 22 User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 4: About This Document
Pass this user manual on to every user, e.g., by lending it, or to the future owner of the product. If this user manual is lost or damaged, a copy of it can be downloaded from the Neutrik's website (www.neutrik.com). -
Page 5: Explanation Of Symbols
Carry out the action steps in the order they are presented. 1.4 Target group This user manual is addressed to sound engineers, musicians and personnel who have comprehen- sive experience in sound and event technology. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 6: Safety
Connect the equipment into an outlet on a circuit different from that to which the • receiver is connected. Consult the dealer or an experienced radio/TV technician for help. • User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 7: Declaration Of Conformity
Safety w NOTICE Changes or modifications made to this equipment not expressly approved by Neutrik may void the FCC authorization to operate this equipment. 2.3.1 Declaration of conformity The device meets all the relevant EU directives and therefore has the CE marking. The Declaration of Conformity may be consulted at www.neutrik.com/en/approvals-and-certificates. -
Page 8: Description Of Product
With optional mounting brackets or a rack panel, the box can be mounted below tables, in floor boxes, or in equipment racks. 3.2 Device Pos Description Sheet metal housing Rubber protection (removable) Connections and displays 3.3 Connections and displays 3.3.1 NA-2I2O-DLINE User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 9: Na-2I-Dline
SYS + SYNC LED flashes green: the device has LED lights up red: system is starting. • been identified via the identification function of • LED lights up green: system is ready. the Dante™ Controller. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 10: Components And Accessories
(Kit includes 2 brackets, 2 fixing screws, 2 torx screws and 2 spacers) Rack panel NRP1RU-2A Removable rubber protection NA-RC Trussmount kit (Kit includes 4 cross screws, 4 fixing screws, 2 safety frames, 1 yoke mount) NA-TM-KIT User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 11: Operation
PoE injector. The Dante adapter is ready for operation. Set up the desired audio connection with the "Dante controller" software. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 12: Connection Diagram Using A Switch With Poe Support
4.2.2 Connection diagram using a switch without PoE support w NOTICE Only use a PoE injector that complies with IEEE 802.3af, 802.3at or 802.3 bt. Injector LINE OUT LINE IN 100 / 240 V User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 13: Applications
Headphone PoE support amplifier NA-2I2O-DLINE LINE OUT LINE OUT LINE IN Using the Dante adapter, the two applications described above can also be operated simultaneously (= mixed mode). User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 14: Controlling The Dante
(routing) between devices and to configure the involved devices. During operation, the computer and the "Dante Controller" software can be disconnected from the network, since all relevant information remains saved on the involved devices. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 15: Accessories Assembly Instructions
Turn the brackets as required for the mounting situation. Tighten the fixing screw firmly. Mount the fixing screw as shown on the picture. Repeat these steps on the opposite side of the device. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 16: Rack Panel Nrp1Ru-2A
Remove the rubber protection. Remove the 4 screws on the front of the device. Place the device in the rack panel. Fix the device with the four screws. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 17: Trussmount Na-Tm-Kit
Use the existing installed screws (4 pcs. M3 x 6 mm). Place the safety frame onto the device and tigthen it. Fix the device with the fixing screw. Place the device in the yoke mount. Position the screw. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 18: After Operation
Dispose of packaging and packaging elements in accordance with the applicable local regulations. Take device components made of plastic, metal or other recyclables for reclamation in accordance with the applicable local regulations. User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 19: Appendix
(without rubber protection) B = 66 mm (2.6 inches) H = 41 mm (1.6 inches) Operating environment Indoor Operating temperature –5°C to +60°C Storage temperature –40°C to +150°C User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 20: Poe (Power Over Ethernet)
6.49 – 12.95 W IEEE 802.3at 12.95 – 25.5 W IEEE 802.3bt 25.5 – 40 W 40 – 51 W 51 – 62 W 62 – 73 W User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -
Page 21: Application & Safety Instructions
7.5 Damages Handle products with care. • In case of visible damages, check the suitability of the product for use. • User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... -

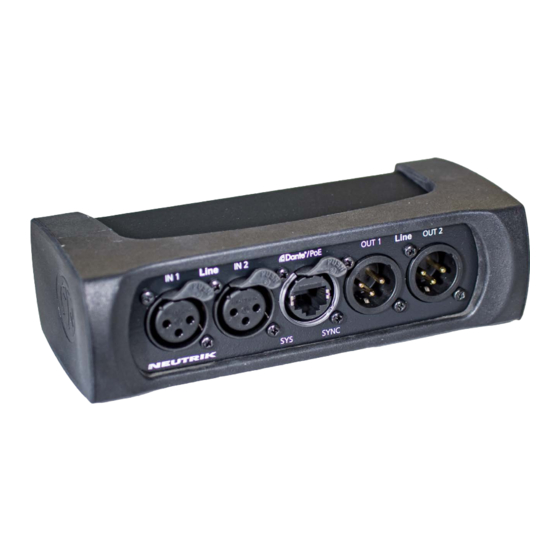

Page 22: Product Images
Product images 8 Product images NA-2I2O-DLINE NA-2O-DLINE NA-2I-DLINE User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02... - Page 23 Product images User manual – NA-2I2O-DLINE (and all other variants) | BDA 641-V4 2024/02...
- Page 24 LIECHTENSTEIN (HEADQUARTERS) Neutrik AG, Im alten Riet 143, 9494 Schaan T +423 237 24 24, F +423 232 53 93, neutrik neutrik.com GERMANY / NETHERLANDS / DENMARK / AUSTRIA / FRANCE / UNITED KINGDOM Neutrik EMEA GmbH, Felix-Wankel-Straße 1, 85221 Dachau, Germany T +49 8131 28 08 90, neutrik.emea.de@neutrikgroup.com...
