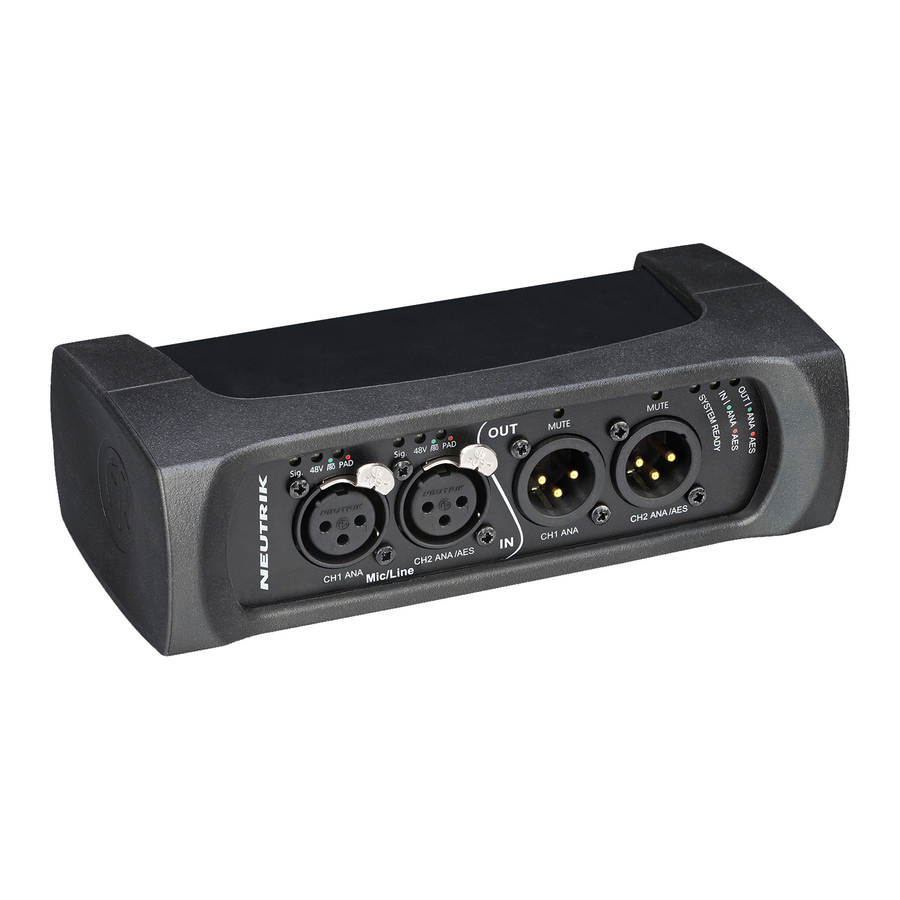

- Page 1 User Manual NA2-IO-DPRO Q-SYS Control Plugin...
-
Page 2: Table Of Contents
Q-SYS Control Plugin Q-SYS Designer Setup for NA2-IO-DPRO (further DPRO Adapter) Explanation: DPRO Controller Dante Controller ® Q-SYS Designer Software This document describes the use of an AES67 multicast flow via Dante Controller. ® Q-SYS Designer Software v8.3.1 or higher supports Software-based Dante for the Q-SYS ®... -
Page 3: Using Dpro Controller To Find Out Current Ip Address Of The Device (Or To Change It)
Note: The Q-SYS Core has to be unplugged during the further steps 1. USING DPRO CONTROLLER TO FIND OUT CURRENT IP ADDRESS OF THE DEVICE (OR TO CHANGE IT) Download the DPRO Controller from Neutrik’s website: https://www.neutrik.com/en/na2-io-dpro and install it. -
Page 4: Q-Sys Designer To Setup/Control Q-Sys Control Plugin In Configuration
Q-SYS Control Plugin 2. Q-SYS Designer to setup/control Q-SYS control plugin in configuration Download the Neutrik-Dante -Adapter-Pro Plugin ® from the website: https://www.neutrik.com/en/na2-io-dpro The plugin is also directly available in Q-SYS asset manager Double click on the icon to install it or just copy and paste the plugin into the plugin folder of Q-SYS Designer on the Computer. - Page 5 I/O section during running from core: If there is no XLR connection to the DPRO, the I/O section is completely hidden. I/O section in the plugin will be displayed when there is a XLR connection to the DPRO Adapter. NA2-IO-DPRO BDA 583-V2 2020/07...
-
Page 6: Parameters
Q-SYS Control Plugin 3. PARAMETERS Within Q-SYS plugin, various parameters related to DPRO operation can be chosen and routed according to user preference and used in the configuration. NA2-IO-DPRO BDA 583-V2 2020/07... -
Page 7: Aes67 In Association Via Dante Controller
Doubleclick the DPRO Adapter in the left side menu. Click on the AES67 Config tab. Choose Enabled to set the device into AES67 Mode. Click Yes to confirm. Click Reboot for the changes to take effect. NA2-IO-DPRO BDA 583-V2 2020/07... - Page 8 Select AES67 in the Flow Config. Add all channels you want to send to your Q-SYS Designer. Note: Maximum of 8 channels is allowed per Multicast flow. The DPRO Adapter only supports 2 channels. Click Create NA2-IO-DPRO BDA 583-V2 2020/07...
-
Page 9: Aes67 Receiver (Dpro Adapter Input)
Add the AES67 Receiver as a new inventory item. Press F5 (Save to Core & Run). Doubleclick the AES67 Receiver and select the NA2-DPRO on the Stream Name. The status should be OK. If it is not, then review the prior setup steps. NA2-IO-DPRO BDA 583-V2 2020/07... - Page 10 Q-SYS Control Plugin NA2-IO-DPRO BDA 583-V2 2020/07...
- Page 11 Subject to change due to technical advances! This user manual corresponds to the level of technology at the time the product was delivered and not the current stage of development at Neutrik. If any pages or sections of this user manual are missing, please contact the manufacturer at the address listed below.
- Page 12 LIECHTENSTEIN (HEADQUARTERS) Neutrik AG, Im alten Riet 143, 9494 Schaan T +423 237 24 24, F +423 232 53 93, neutrik neutrik.com GERMANY / NETHERLANDS / DENMARK / AUSTRIA Neutrik Vertriebs GmbH, Felix-Wankel-Straße 1, 85221 Dachau, Germany T +49 8131 28 08 90, neutrik neutrik.de...
