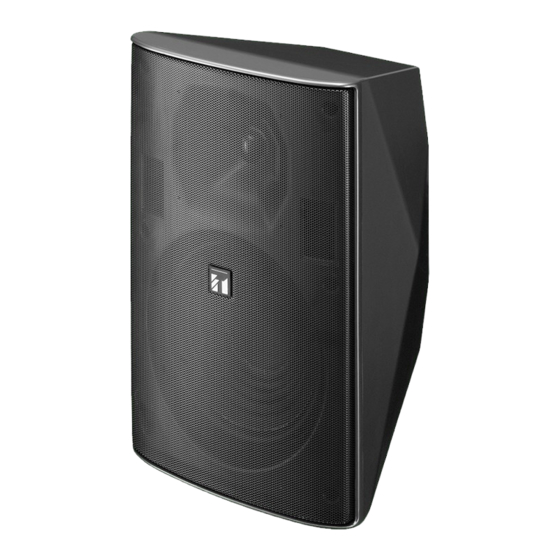

SPEAKER SYSTEMS
Thank you for purchasing TOA's Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
F-1300B
F-1300BT
F-1300BTWP
OPERATING INSTRUCTIONS
F-1300W
F-1300WT
F-1300WTWP
533-06-181-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-1300B and is the answer not in the manual?

Questions and answers

Related Manuals for Toa F-1300B

Summary of Contents for Toa F-1300B

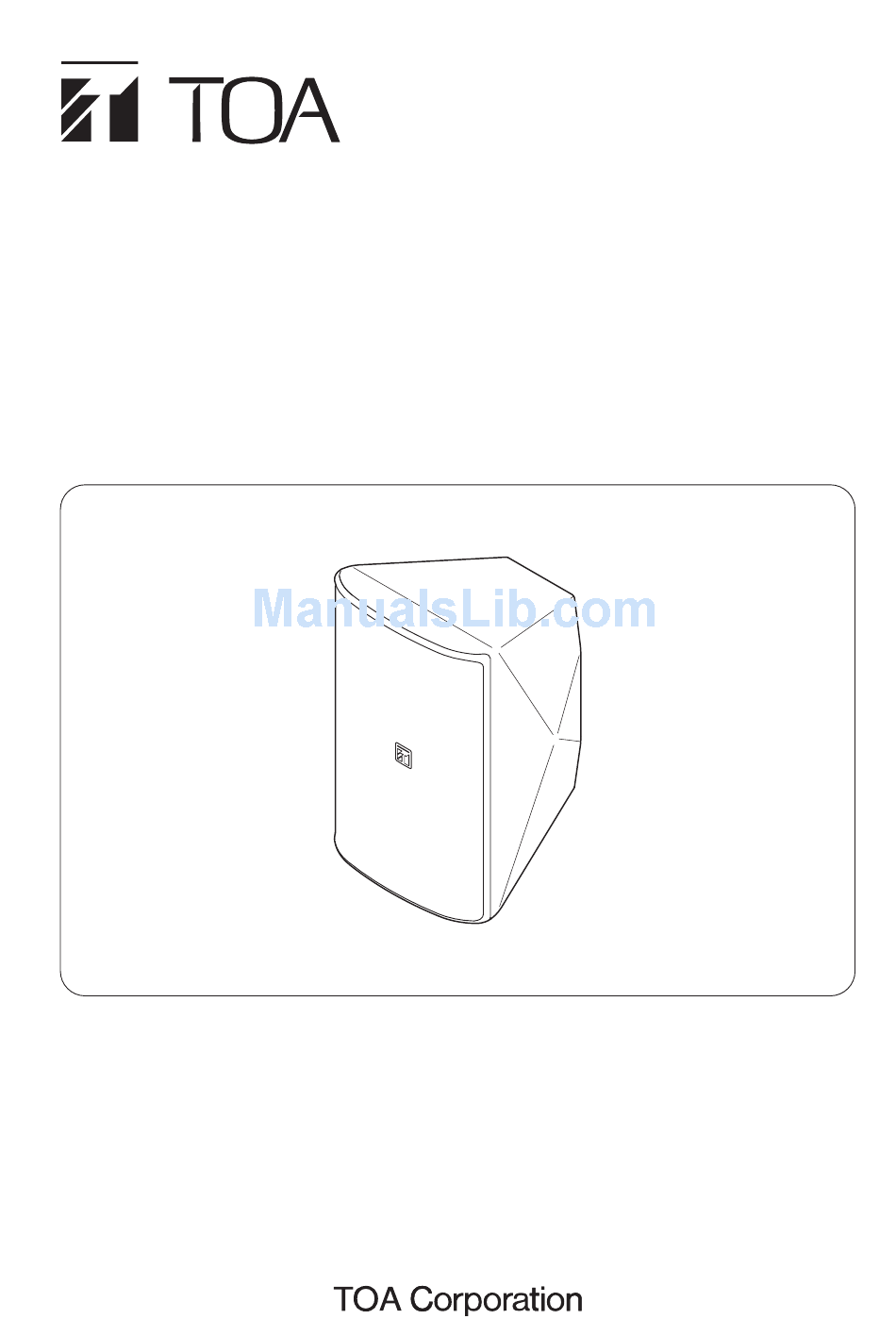

  • Page 1 SPEAKER SYSTEMS Thank you for purchasing TOA's Speaker System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. OPERATING INSTRUCTIONS F-1300B F-1300BT F-1300BTWP F-1300W F-1300WT F-1300WTWP 533-06-181-30...

  • Page 2: Table Of Contents

    8.4. Ceiling Mounting ... 10 8.5. Speaker Stand Mounting ... 12 8.6. Pole Mounting (F-1300BTWP and F-1300WTWP only) ... 13 8.7. Partition Board Mounting (F-1300B, F-1300BT, F-1300W, and F-1300WT only) ... 14 9. REPAINTING THE SPEAKER 10. SPECIFICATIONS 10.1. F-1300B and F-1300W ... 16 10.2.

  • Page 3: Safety Precautions

    • (F-1300B, F-1300BT, F-1300W, and F-1300WT only) Since the unit is designed for in-door use, do not install it outdoors. If installed outdoors, the aging of parts causes the unit to fall off, resulting in personal injury.

  • Page 4: General Description

    • Both the F-1300BTWP and F-1300WTWP feature a waterproof design (IPX4 standard) for protection from any adverse effects of outdoor installations. Applies to the F-1300BTWP and F-1300WTWP. Applies to the F-1300B, F-1300BT, F-1300W, and F-1300WT. 4. DIMENSIONAL DIAGRAM [Top] [Front] 162 (6.38)

  • Page 5: Impedance Change

    Failure to follow this instruction could result in damage to the speaker or amplifier. 6. ABOUT THE INPUT OVERLOAD PROTECTION CIRCUITRY (F-1300B and F-1300W only) The speaker system features internal input overload protection circuitry for both high and low frequencies.

  • Page 6: Notes On Outdoor Installation

    7. NOTES ON OUTDOOR INSTALLATION • Be sure to mount the speaker in a vertical (portrait-style) orientation. • Adjust the speaker's tilt angle within the shaded range shown below. [Wall and pole: 0º horizontal to 45º downward] Note Mount the speaker so that its rear-mounted terminal cover is positioned on the upper side.

  • Page 7: Installation

    8. INSTALLATION 8.1. Using the Supplied Brackets The speaker system is supplied with the following brackets. Use these brackets properly depending on the installation location and intended application. [Speaker bracket] 8.1.1. When using only the supplied brackets Installation Application Location When horizontal and vertical angle adjustability is desired.

  • Page 8: Wall Mounting

    8.3. Wall Mounting When adjusting horizontal and vertical angles: Use the supplied wall bracket, joint bracket, and speaker bracket to permit adjustment of the horizontal and vertical* speaker coverage angles. * Vertical installation. Horizontal: Max. 75º, Vertical: Max. 45º downward Horizontal installation.
  • Page 9 Step 2. Attach the joint bracket to the wall bracket using the supplied screws, adjust the horizontal speaker angle, then tighten the screws. Note: Match the orientation of the arrows on both the wall bracket and joint bracket. Step 3. Attach the speaker bracket to the speaker's rear using the supplied screws. Note: Attach the speaker bracket according to the speaker mounting orientation.

  • Page 10: Ceiling Mounting

    8.4. Ceiling Mounting Vertical orientation Use the supplied joint bracket and speaker bracket. Note Speaker coverage angles can only be adjusted in the vertical direction (Max. 45º downward). Adjust the speaker's tilt angle within the shaded range shown below. [Speaker angle vs. Bracket position] 0º...
  • Page 11 The mating surfaces of the speaker bracket and joint bracket are designed to interlock. Ensure that both parts are securely engaged with each other after mounting is complete. Horizontal orientation (F-1300B, F-1300BT, F-1300W, and F-1300WT only) Use the supplied joint bracket and speaker bracket in combination with the optional HY-CM10B or HY-CM10W Ceiling Mount Bracket.

  • Page 12: Speaker Stand Mounting

    8.5. Speaker Stand Mounting The speaker can be mounted on the optional ST-16A Speaker Stand using the supplied joint bracket and speaker bracket. Speaker unit Machine screw M5 x 20 (with plain washer and spring washer) Butterfly nut (supplied with the ST-16A) Washer (supplied with...

  • Page 13: Pole Mounting (F-1300Btwp And F-1300Wtwp Only)

    8.6. Pole Mounting (F-1300BTWP and F-1300WTWP only) To mount the speaker on a pole with diameter of 10 – 34 cm (3.94 – 13.39"), use the supplied wall bracket, joint bracket, and speaker bracket in combination with the optional YS-60B Pole Band. Speaker coverage angles can be adjusted in the horizontal and vertical direction*.

  • Page 14: Partition Board Mounting (F-1300B, F-1300Bt, F-1300W, And F-1300Wt Only)

    HY- BH10B Board Hanger Bracket. Refer to the instruction manual enclosed with the optional mounting bracket for its mounting details. (F-1300B, F-1300BT, F-1300W, and F-1300WT only) [Installation example] Vertical speaker mounting Horizontal speaker mounting...

  • Page 15: Repainting The Speaker

    9. REPAINTING THE SPEAKER Follow the procedure below when repainting the speaker grill and cabinet. Note Take care not to touch the speaker diaphragm during work. Step 1. Peel off the logo carefully, then remove the screw underneath to detach the mesh speaker grill. [Detaching the mesh grill] Mesh speaker grill Countersunk head...

  • Page 16: Specifications 10.1. F-1300B And F-1300W

    10. SPECIFICATIONS 10.1. F-1300B and F-1300W Model No. Enclosure Type Power Handling Capacity Rated Impedance Output Sound Pressure Level Frequency Response Crossover Frequency Directivity Angle Speakers Input Terminals Enclosure Mesh Speaker Grill Speaker Bracket Joint Bracket, Wall Bracket Dimensions Weight...

  • Page 17: F-1300Bt And F-1300Wt

    10.2. F-1300BT and F-1300WT Model No. Enclosure Type Power Handling Capacity Rated Impedance 100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: Output Sound Pressure Level Frequency Response Crossover Frequency Directivity Angle Speakers...

  • Page 18: F-1300Btwp And F-1300Wtwp

    3.6 kg (7.94 lb) (including the supplied brackets) Pole band: YS-60B Authorized representative: F-1300WTWP 30 W 2 kHz IPX4 HIPS, white Surface-treated steel plate, white, anti-rust paint Aluminum die-cast, white, paint TOA Electronics Europe GmbH Suederstrasse 282, 20537 Hamburg, Germany URL: http://www.toa.jp/...
