WIDE-DISPERSION SPEAKER SYSTEM
F-2000B/BT/BTWP
Without Horn Adapter (110 × 100-deg Octagon Horn)
Horizontal 110°
×
With Horn Adapter
(80
80-deg Octagon Horn)
Horizontal 80°
DESCRIPTION

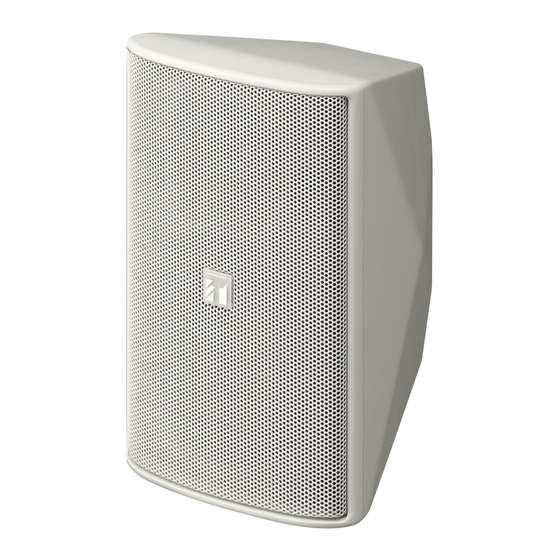

The TOA F-1000 and F-2000 Series comprise a two-way
speaker line of compact units offering wide frequency
response and higher, more powerful performance. These
highly adaptable speaker systems are intended to meet the
requirements of a wide range of venues and applications, both
indoors and outdoors.
For clear, wide-area sound coverage, the Series include
Octagon Horn wide dispersion-angle (110° x 100° on the
F-2000 and 90° x 90° on the F-1000) high-frequency horns,
plus an easily-added 80° x 80° dispersion angle horn adapter
on the F-2000 for tighter dispersion control. Both high-
impedance and low-impedance models are available. Low
impedance models come with separate HF and LF protection
circuitry. High impedance models have a rear-panel rotary
control for making impedance settings that optimally match
amplifier and speaker performance.
The speaker units have a design that combines stylishness and
a high degree of performance-enhancing rigidity. Even the
decor-enhancing convex bulge on the side of the casing serves
to improve rigidity. Brackets for easy speaker-stand, wall and
ceiling installation are included, and there are also optionally
available brackets for more challenging installation venues and
sound reinforcement applications. Push-in terminals make
connections quick and easy, and there are models for outdoor
use that meet IP-X4 splash-proof standards.
F-1000/F-2000 SERIES
F-2000W/WT/WTWP
FEATURES
110° x 100° (F-2000) and 90° x 90° (F-1000) dispersion angle
high-frequency horns (Octagon Horn) ensure an enhanced
sound coverage area and a more even balanced tone.
Easily-mountable 80° x 80° dispersion angle horn adapter
included on the F-2000 for increased dispersion control.
Waterproof design with anticorrosive punching net and
terminal cover, meeting IP-X4 splash-proof ratings, available
on models F-1000BTWP/WTWP and F-2000BTWP/WTWP.
All speaker models are repaintable.
Low impedance models have high and low frequency filter
and protection circuitry.
Included accessory brackets allow a wide choice of
installations on walls and ceilings.
Optionally available brackets meet an even wider variety of
installation demands.
Stylish and highly rigid casing design for attractive installation
with clearer sound reproduction.
Sensitivity: 87dB, 1W, 1m (F-1000)
F-1000B/BT/BTWP
F-1000W/WT/WTWP
92dB, 1W, 1m (F-2000 without horn adapter)
93dB, 1W, 1m (F-2000 with horn adapter)

Advertisement

loading
Need help?

Need help?

Do you have a question about the F-1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Toa F-1000

  • Page 1 F-1000B/BT/BTWP F-2000W/WT/WTWP FEATURES ● 110° x 100° (F-2000) and 90° x 90° (F-1000) dispersion angle high-frequency horns (Octagon Horn) ensure an enhanced sound coverage area and a more even balanced tone. ● Easily-mountable 80° x 80° dispersion angle horn adapter included on the F-2000 for increased dispersion control.
  • Page 2: Specifications

    (F-1000BT/WT/ BTWP/WTWP only) Notes • For the speaker cable, use a cable with a diameter of 6 – 10 mm, which will fit the cable bushing. • To ensure waterproof capabilities, firmly mount the terminal cover to the speaker and *Hole plugs are pre-fitted into tighten the bushing on the cover.
  • Page 3 Rear View BTWP/WTWP only) Notes • For the speaker cable, use a cable with a diameter of 6 – 10 mm, which will fit the cable bushing. • To ensure waterproof capabilities, firmly mount the terminal cover to the speaker and tighten the bushing on the cover.
  • Page 4 F-1000 SERIES Polar Response 0° 30° 330° 60° 300° 60° 270° 90° 90° 120° 240° 120° 150° 240° 500Hz 180° 400Hz 315Hz 0° 30° 330° 60° 300° 60° 270° 90° 90° 120° 240° 120° 240° 150° 2000Hz 180° 1600Hz 1250Hz 0°...
  • Page 5 F-2000 SERIES • without HF Horn Adapter Polar Response 0° 30° 330° 60° 300° 270° 90° 90° 120° 240° 240° 150° 500Hz 180° 400Hz 315Hz 0° 330° 30° 60° 300° 270° 90° 90° 120° 240° 240° 150° 2000Hz 180° 1600Hz 1250Hz 0°...
  • Page 6 CLUSTER BRACKET • For F-1000 Series HY-CL10B • Finish: Steel plate, black, paint • Dimensions: 109.3 (W) × 39 (H) × 109.3 (D)mm (4.3" × 1.54" × 4.3") • Weight: 380g (0.84 lb) HY-CL20B • For F-2000 Series • Finish: Steel plate, black, paint •...
