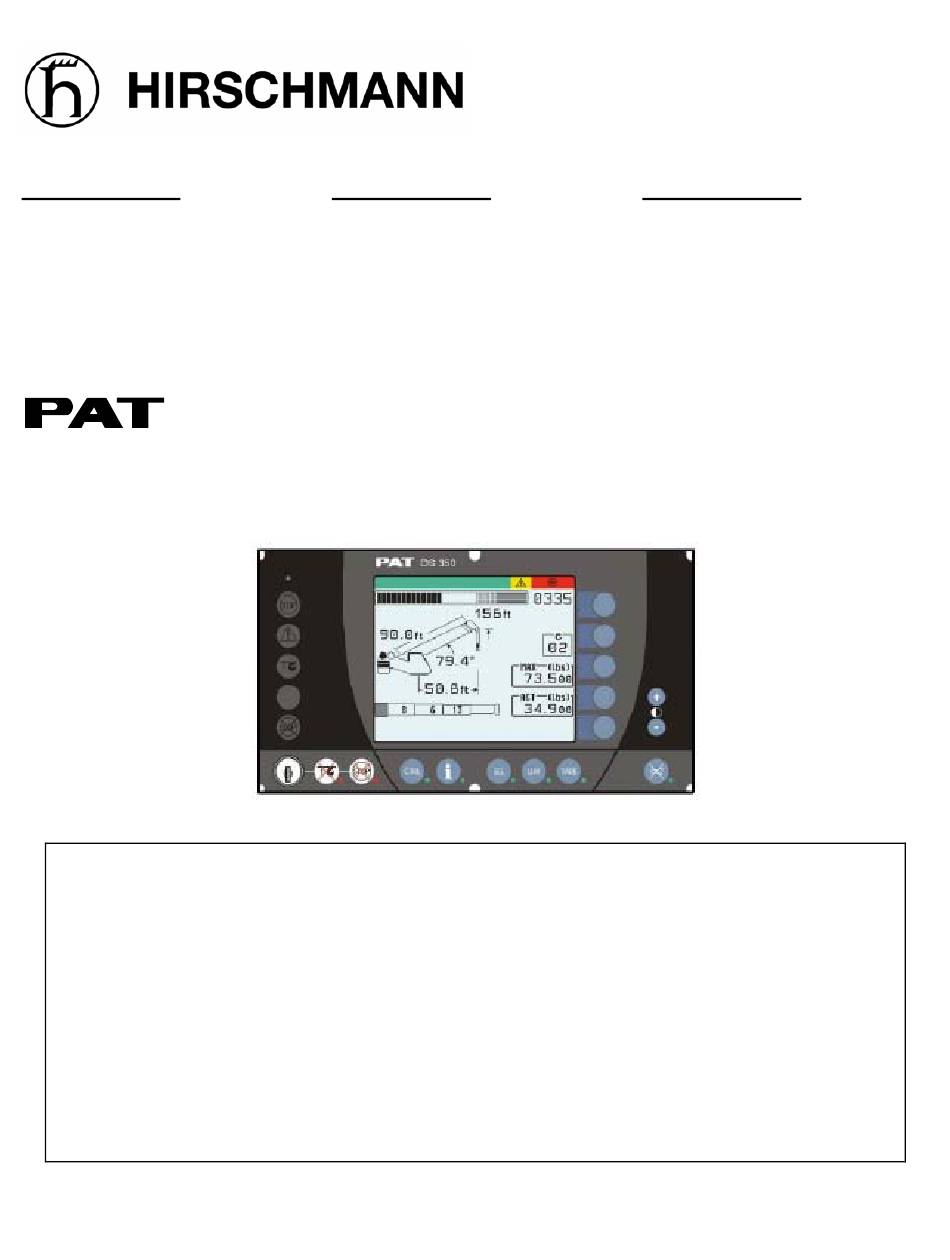

050-350-061-351
CONSOLE, DS350 ON-DASH
GRAPHIC REPLACEMENT
FOR:
050-350-061-063
050-350-061-166
050-350-061-173
050-350-061-219
050-350-061-318
CONSOLE REPLACEMENT INSTRUCTIONS
Document Part Number 031-300-530-032
Hirschmann ECS makes no warranty of any kind with regard to this material, including, but not limited to the
implied warranties of merchantability and fitness for a particular purpose.
Hirschmann ECS shall not be liable for errors contained in this manual or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual. This document contains
No part of this document may be photocopied, reproduced, or translated to another language without the prior
Hirschmann ECS
© 2006
050-350-061-354
CONSOLE, DS350 ON-DASH
GRAPHIC REPLACEMENT
FOR:
The information in this document is subject to change without notice.
proprietary information that is protected by copyright.
All rights are reserved.
written consent of Hirschmann ECS.
031-300-530-032 Revision F 03/28/06
050-350-061-062
050-350-061-158
050-350-061-328
050-350-061-361
NOTICE
0032_F53
050-350-061-355
CONSOLE, DS350 IN-DASH
GRAPHIC REPLACEMENT
FOR:
050-350-061-189
050-350-061-319
