Texas Instruments TMS320C66 Series Quick Start Manual page 2

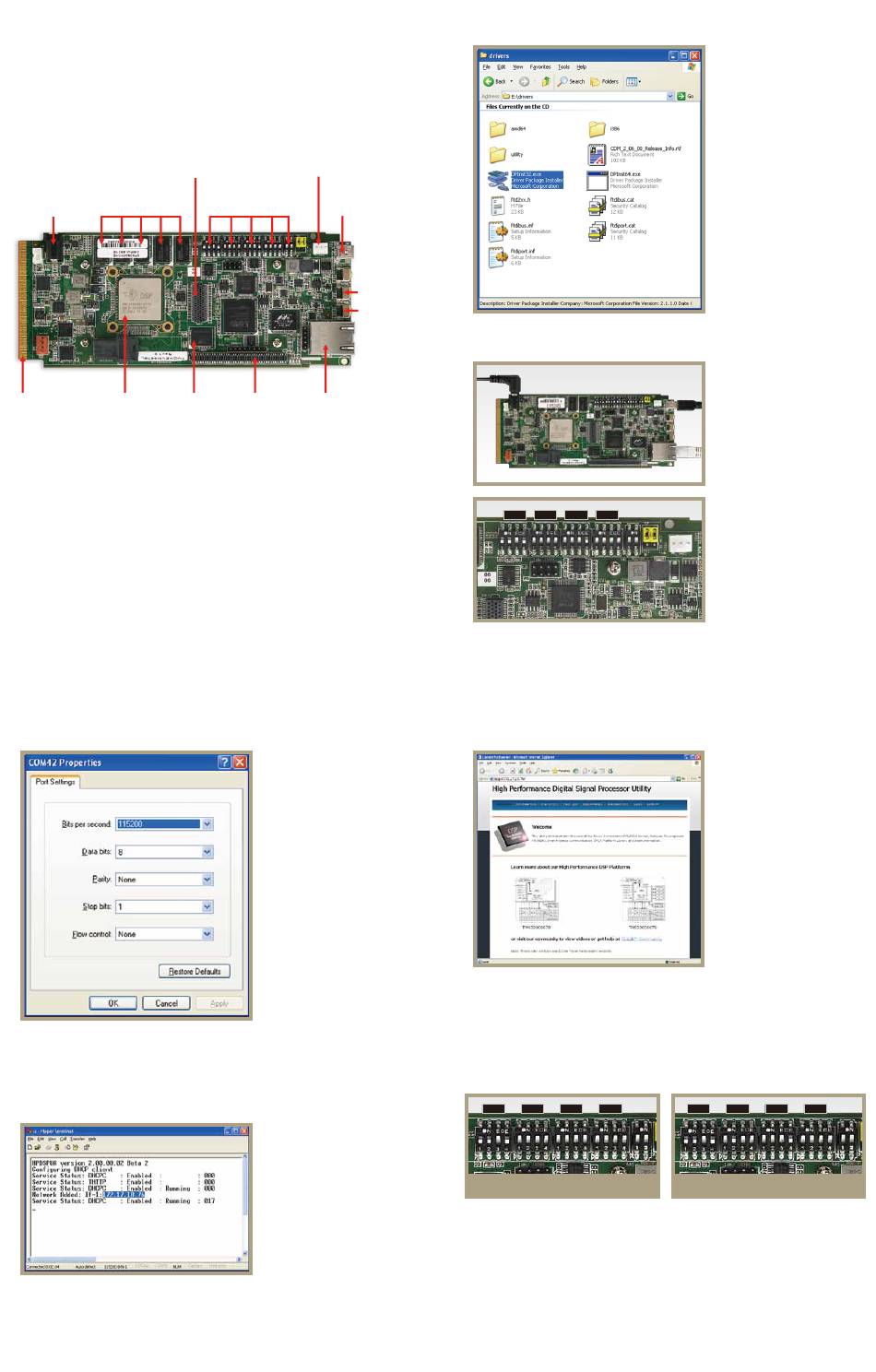

TMDSEVM6678L
TMS320C6678 Evaluation Module
60-pin header for
external emulator
DDR3 SDRAM
DC 12V 512 MB
AMC TMS320C6678 NAND Flash
Type B+ (8 core DSP)
The TMDSEVM6678L (Evaluation Module) kit includes:
• TMS320C6678 Evaluation Module
• Power adapter and power cord
• USB cable for on-board JTAG emulation (XDS100v1)
• Ethernet cable
• RS-232 serial cable
• Software (DVD) and documentation
On-Board RS-232
Serial Port
Boot Mode /
Configuration USB mini-B for XDS100
Setting embedded emulator
Miscellaneous Gigabit
64 MB I/O 80pin Ethernet
connector
3
Open HyperTerminal, select COM
port, configure settings.
4
Press the RESET_FULL button on the
EVM.
Allow 40 seconds for the BIOS
Out-Of-Box (OOB) Demo to
complete booting.
The demo acquires an IP address
from server and displays it on
console.
Copy the Network Added: Inf-1: IP
address from HyperTerminal
screen.
Warm Reset
Full Reset
SW3
Note:
1. Additionally, this EVM has two boot modes settings, Power-On Self Test (POST) boot and Linux OOB Demo boot.
The settings of the EVM configuration switches (SW3, SW4, SW5 and SW6) for power-on self test boot is shown as
left figure and Linux OOB Demo boot is shown as right figure.
Press the RESET_FULL after changing switch settings and follow HyperTerminal and webpage settings in Step 4
and 5.
SW3 SW4
Power-On Self Test (POST) boot
2. Follow the READ_ME_FIRST instructions for installing tools, MCSDK 2.0 and demos on your PC.
3. Refer to the Getting Started Guide under MCSDK for details on boot configurations.
4. Visit the following website for the latest MCDSK updates:
http://focus.ti.com/docs/toolsw/folders/print/bioslinuxmcsdk.html
SW4 SW5 SW6
SW5 SW6 SW3
1
Insert the DVD and load the USB
COM driver by executing the
program \drivers\DPlnst32.exe
For 64-bit systems execute the
program \drivers\DPInst64.exe
2
Connect the USB mini-B cable to
USB1, Ethernet cable to Ethernet
port (LAN1) and 12V DC power
adapter to power jack.
Ensue EVM configuration switch
(SW3, SW4, SW5 and SW6) are set
as shown.
5
Open the web browser, copy the
IP address (172.17.10.76) from step
4 to the web browser.
SW4 SW5 SW6
Linux OOB Demo boot
