Summary of Contents for fadini BARRI 88

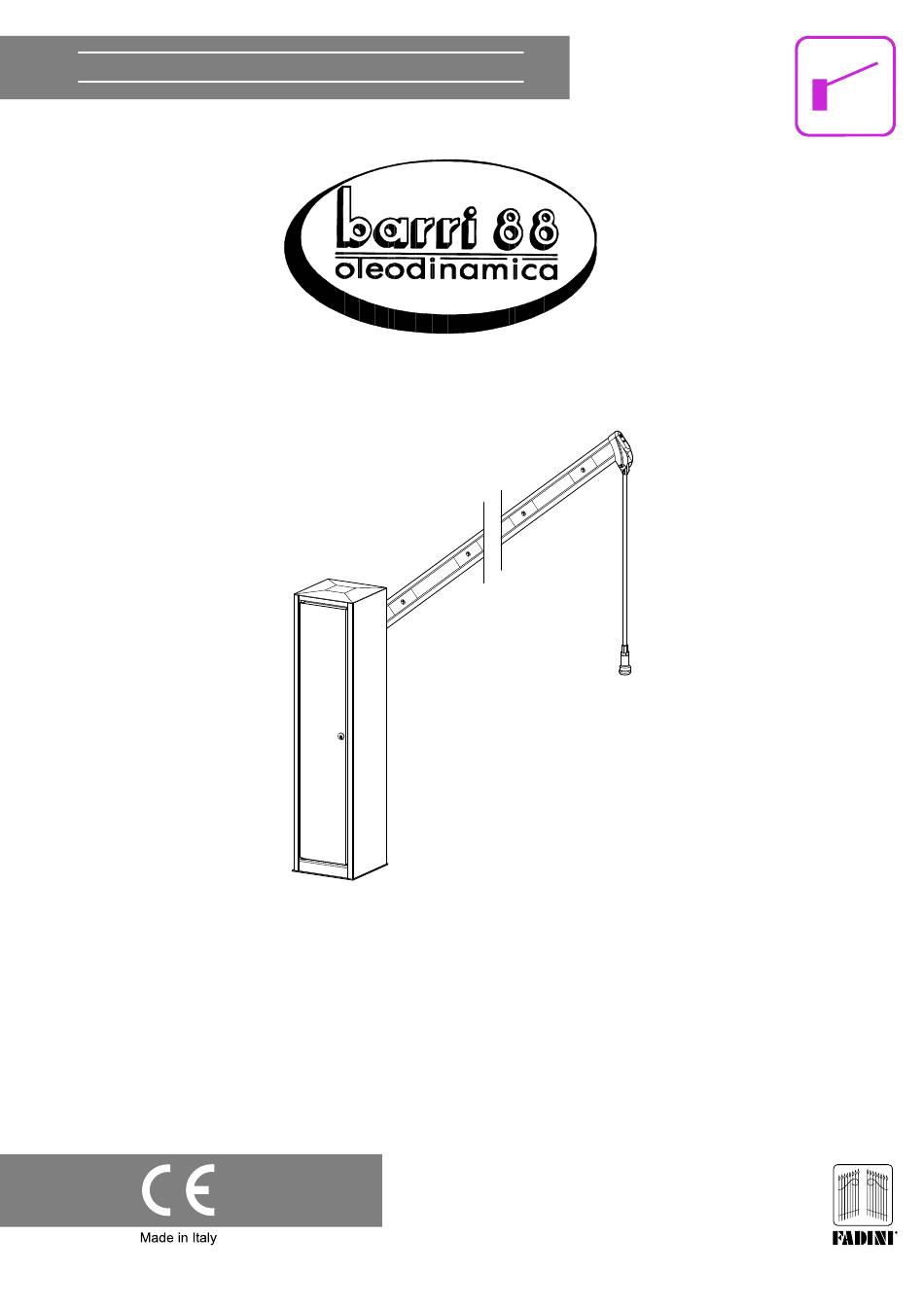

- Page 1 GB Instructions manual 1 - 12 pages Oil-hydraulic road barrier for 4 meters gateways • Left- and right-handed versions • Folding or fixed pedestal options • Adjustable slowdown in opening and closing • option with articulated arm EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Before Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Barri 88 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 11. Beam limit switch assembly with adjustment screws 12. 80x30 L = 4 m beam 13. Folding pedestal 14. Fixed pedestal (optional) Pic. 1 IDENTIFYING BARRI 88 INTO RIGHT- OR LEFT-HANDED Barri 88 Barri 88 Left - Sx Right - Dx...
-
Page 4: Fitting The Beam
BARRI 88 Oil-hydraulic road barrier with beam of 4 meters SETTING THE ANCHORING BASE PLATE INTO THE GROUND FOUNDATION The first operation is fixing the anchoring base plate on a flat level into a concrete foundation; it is advised that, during this phase, one or two corrugated tubes, 30 mm of diameter, be laid in the foundation allowing for the electric cables to be driven through (electric power supply to the installation, command and safety accessories), as illustrated in Pic. - Page 5 BARRI 88 Oil-hydraulic road barrier with beam of 4 meters FIXED PEDESTAL INSTALLATION Pic. 6 INSTALLATION OF THE POST SUPPORTING THE PHOTOCELL TRIFO 11 Post mounted with TRIFO 11 photocell Ø 30 Ø 30 Ø 30 Junction pit Pic. 7...
- Page 6 (not provided with the equipment). Beyond 100 m cable section to be 2,5 mm² 2. Miri 4 flasher with Birio A8 aerial 3. Trifo 11 photocell receiver 4. Barri 88 oil-hydraulic barrier with Elpro 88 controller and Vix 53/2 R plug-in radio receiver 5. Fixed pedestal with fork end 230 V 6.
-
Page 7: Limit Switch Setting
Once satisfied the beam is in the correct position and a couple of operations performed to assess this, tighten the central screw to “lock back” the adjustment screws (Pic. 10). 1st OPERATION 2nd OPERATION 3rd OPERATION BARRI 88 LEFT BARRI 88 RIGHT LIMIT SWITCH LIMIT SWITCH ADJUSTMENT... -
Page 8: Maintenance
BARRI 88 Oil-hydraulic road barrier with beam of 4 meters PRESSURE VALVE ADJUSTMENT BARRI 88 LEFT BARRI 88 RIGHT + more power + more power - less power - less power (green screw) (red screw) (green screw) (red screw) POWER CONTROL... - Page 9 Oil-hydraulic road barrier with beam of 4 meters APPPLICATION WITH FOLDING ARM (OPTIONAL) Depending on the site requirements, it is possible to equip Barri 88 with a folding device, following the indications in Pic. 15. Beam section B = max 1 m...
-
Page 10: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 11 BARRI 88 Oil-hydraulic road barrier with beam of 4 meters...
- Page 12 20 atm Capacitor 12,5 µF Max. pump pressure 40 atm Working temperature -20 °C +80 °C Oil type Oil Fadini - Item 708L Reservoire capacity 1,2 liters ELECTRIC MOTOR PERFORMANCE Frequency of use intensive Power output 0,24 kW (0,33 HP)
