Page 1

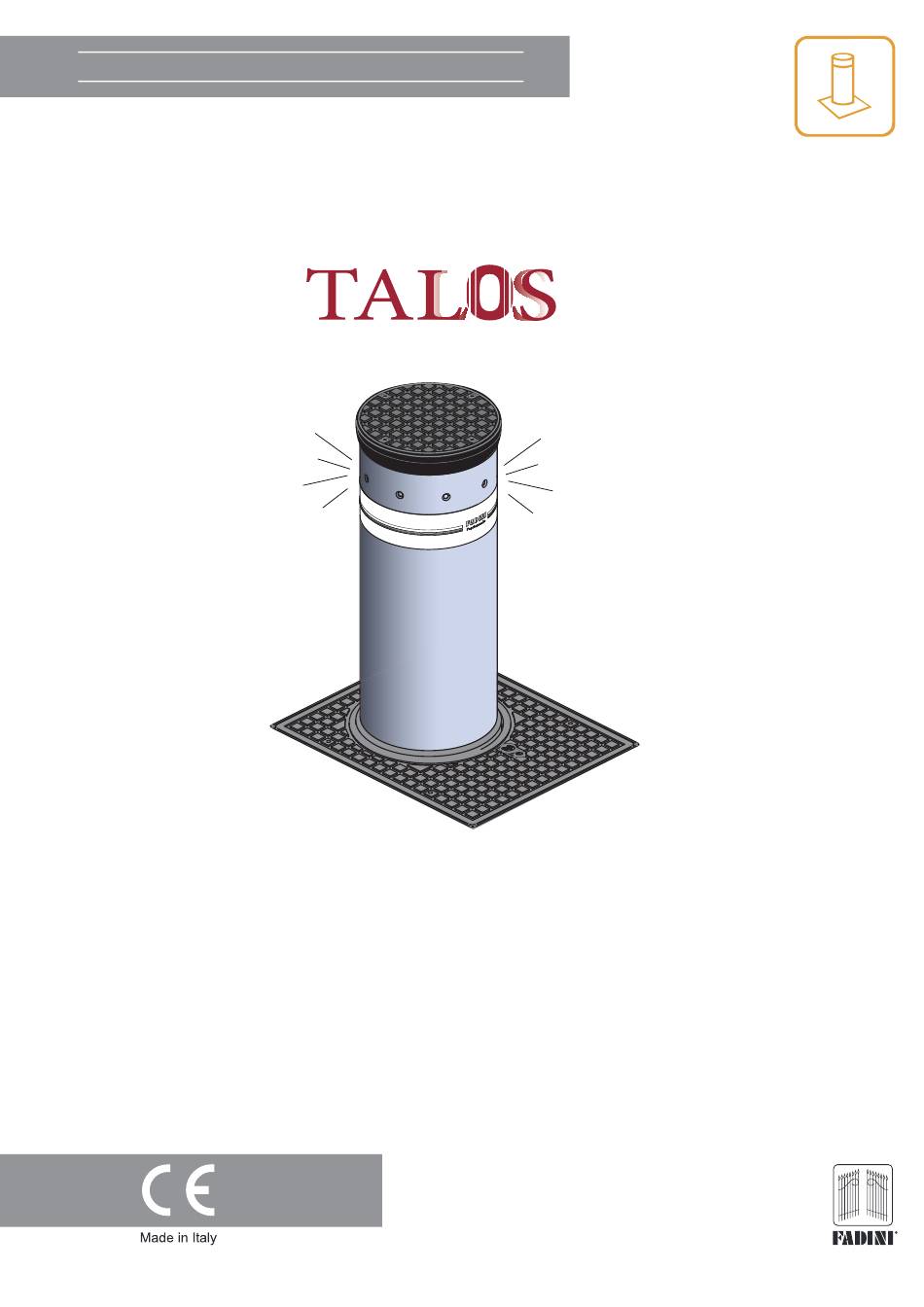

GB Instructions manual 1 - 20 pages BOLLARD WITH RETRACTABLE CYLINDRICAL POST OIL-HYDRAULICALLY OPERATED EN 13241 EN 12453 EN 12445 the gate opener...
Any applications not explicitly included in this manual may impact forces and reporting of residual risks. cause operation problems or damages to properties and people. □ Meccanica Fadini snc is not liable for damages INFORMATION FOR END-USERS caused by the incorrect use of the equipment, or for...
DECLARATION OF CONFORMITY: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under its own responsibility that TALOS is in compliance with the Directive 2006/42/EC on machinery, moreover: is to be sold and installed as a comprehensive “Automatic System”, including the accessories and components as recommended by the Manufacturing Company.
Retractable Oil-hydraulic Bollard MAIN COMPONENTS Post cover with rubber edge Release spanner with triangular socket end n°9 Led lights flashing amber in colour Stroke 500 Back-reflecting sticker Stroke 600 with logo Stroke 700 Cover Retractable, cylindrical post. Stroke 800 plate 500/600/700/800 mm stroke options Thickness: 4 mm or 12 mm Stainless steel inox: only 4 mm...
Page 5
7 - Fit 55 photocell receiver, recess mount 8 - Pre-assembled loop with power supply cable 9 - Post for Fit 55 photocell projector 10 - Oil-hydraulic bollard Talos series 11 - Vix 53 remote control transmitter 12 - Post for Fit 55 photocell receiver...
Page 6
Retractable Oil-hydraulic Bollard REMOVE THE BOLLARD FROM ITS CASING Remove the M10 screws on the squared cover plate Screw the two lifting rings down into the pre-holed seats Remove the inner fixing plate NOTE WELL: make sure the Carefully hoist and remove the inner ground cable is assembly of the bollard by a winch.
Page 7
Retractable Oil-hydraulic Bollard CEMENTING THE CASING A pit is to be dug into the ground following the dimensions as indicated in Pic. 5. INTERNAL SIDE TO PROTECT EXTERNAL SIDE 43 cm Road surface 21 cm 21 cm and walking level 6 -12 cm 6 -12 cm stroke constraint P...
Page 8
Retractable Oil-hydraulic Bollard The upper level of the foundation casing is to be 1-2 cm higher than the surrounding walking surface, in order to limit the amount of water that may get inside it. Cast concrete all around the casing up to 5-10 cm from walking level. Wait all the time required for concrete to set firmly (at least 7 days) and complete the finishing of the road surface.
Page 9
Retractable Oil-hydraulic Bollard ARRANGING FOR THE MAGNETIC LOOPS (OPTIONAL) IMPORTANT: Make sure that the area near and below the ground level where the accessories are installed is clear from electromagnetic sources to prevent interference problems with the detections of the loops and with any other electronic device to control the installation.
Page 10
Retractable Oil-hydraulic Bollard ELECTRIC CONNECTIONS TO THE ELECTRONIC CONTROLLER ELPRO S40 The electronic controller Elpro S40 is to be installed in a dry and protected place to prevent unauthorized actions. Make sure that all the electric cables of the command and safety accessories are properly led to the controller (Pic.3). Through the previously laid corrugated tube pull a multicore cable, type BUT FLESSIBILE FG 7OR 12x1,5 mm²...
Page 11
- brown wires Card of the pressure switch (if fitted) Pre-wiring box “Heater to be series connected with Talos series” with connector the other safety accessories (if mounted) motor live limit switch closing motor (Pic.
Page 12
Retractable Oil-hydraulic Bollard FIRST RUNNING TEST ATTENTION: supply the system with power only when wiring is completed. Once the bollard and all of the the safety (make sure that all the NC contacts in the Elpro S40 controller are actally closed) and command accessories are finally installed, the respective connections to Elpro S40 done and the risk 230 V analysis completed, the first running test can be carried out.
Page 13
Retractable Oil-hydraulic Bollard Once satisfied that voltage is properely supplied to the system, and provided that the LEDs of the limit switches are correctly switched (post down L8 is OFF), by the first pulse the post should rise, if not swap the motor live connections (in Elpro S40) after voltage supply to the system has been switched off.
Page 14
Retractable Oil-hydraulic Bollard BOLLARD WITH SOLENOID VALVE (OPTIONAL ACCESSORY) With the version of the bollard where a solenoid valve (24 Vdc) is fitted, in case of power failure, the post is allowed to lower by itself flat to ground level. If a solenoid valve is fitted, a voltage stabilizer is also required: this accessory is absolutely necessary and is to be fitted between the solenoid valve power output (terminals 22 and 23) and the solenoid valve.
Page 15
Retractable Oil-hydraulic Bollard MANUAL RELEASE AND LOWERING OPERATIONS The bollard has an override system allowing for the manual lowering of the post. A spanner with a universal triangle socket at the end is supplied with the equipment to release the unit and allow manual lowering.
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.
Page 17
Retractable Oil-hydraulic Bollard OPERATIONS FOR ORDINARY ROUTINE MAINTENANCE OF FADINI AUTOMATIC BOLLARDS (EVERY SIX MONTHS) The standard maintenance routine sequence is as follows: • Clean the ground cylinder and suck all material settlements. • Clean water drains located at the bottom of the ground cylinder and/or excavation pit.
Page 18
As far as configuration and execution of the system are concerned, these are to comply with the laws in the country of installation. Meccanica Fadini is not liable for any possible damages derived from incorrect use or from any use not indicated in this manual, furthermore it is not answerable for malfunctioning caused by the use of materials or accessories not approved by the company itself.
Retractable Oil-hydraulic Bollard PRODUCT SPECIFICATIONS Fully retractable automatic bollard for very heavy duty applications, made up of an incorporated oil-hydraulic motor pump unit and an oil-hydraulic actuator inside the moving cylinder. Suitable for protecting garages, shops, gateways to shopping centers, banks, car saloons and generally speaking all those areas under risk of attack requiring safeguard. For residential, community and industrial installations.
