GB Instructions manual
Oil-hydraulic road barrier for traffic control from 3 to 8 metres
• Stainless steel and painted versions
• Version with aluminium fence
• Version with articulated beam
• Folding or fixed leg with forked end
• Fully convertible into right or left versions
• Pre-set braking on opening and adjustable on closing
• Beams with flashing led lamps on request
EN 13241
EN 12453
EN 12445
1 - 24
pages
Oil-hydraulic
the gate opener

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAYT 980 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fadini BAYT 980

Summary of Contents for fadini BAYT 980

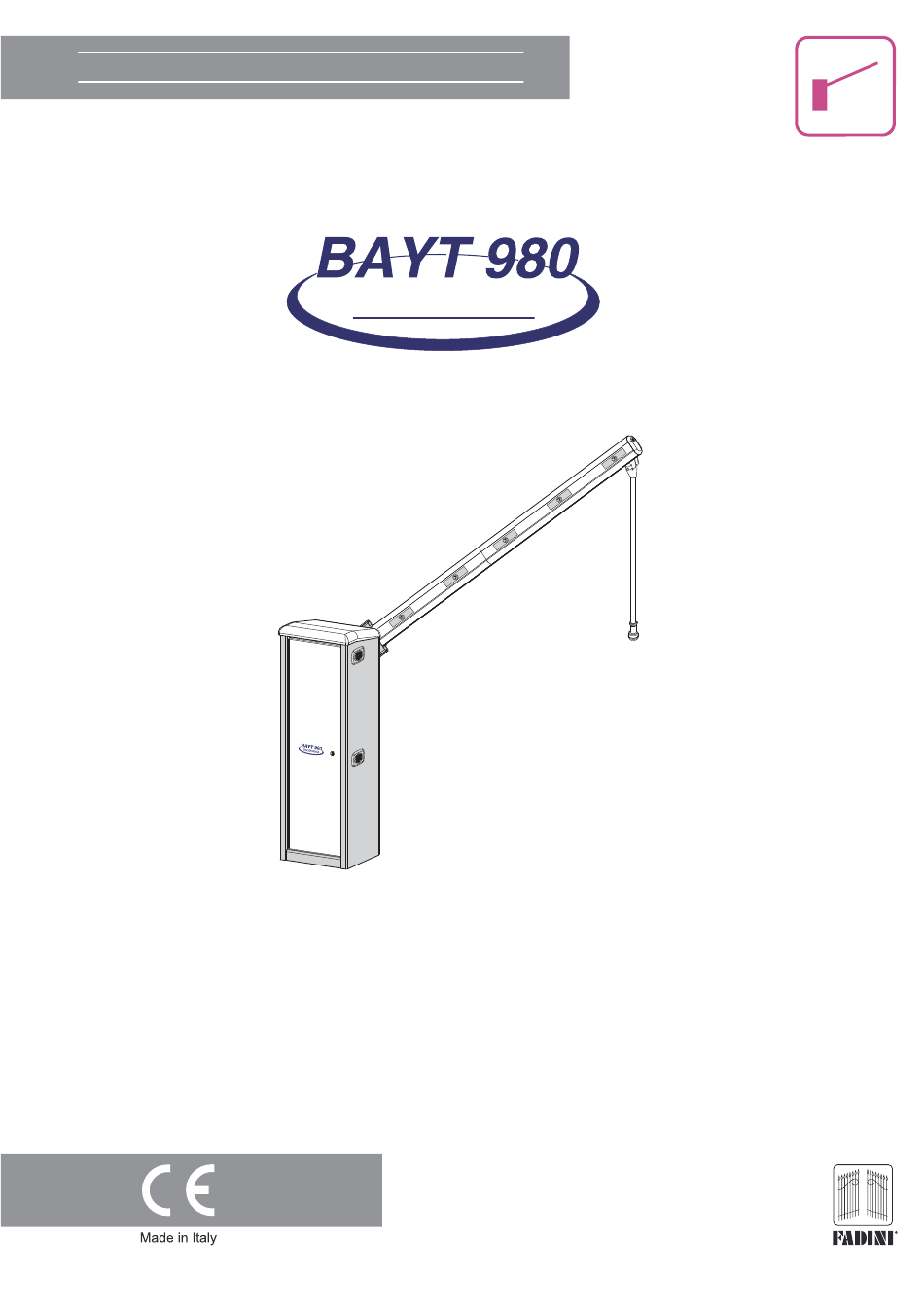

  • Page 1 GB Instructions manual 1 - 24 pages Oil-hydraulic Oil-hydraulic road barrier for traffic control from 3 to 8 metres • Stainless steel and painted versions • Version with aluminium fence • Version with articulated beam • Folding or fixed leg with forked end •...

  • Page 2: Installation

    CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Bayt 980 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company.
  • Page 3 9. Folding leg (optional) Pic. 1 10. Fixed pedestal with beam catcher (optional) RECOGNITION OF THE RIGHT AND LEFT HANDED BAYT 980 The Bayt 980 traffic control barrier is distinguished in right handed or left handed versions according to how it is observed from outside the installation: in any case the opening thrust of the hydraulic piston must always lift the barrier beam (Pic.
  • Page 4 INSTALLATION OF THE ANCHORING PLATES FOR TWO BARRIERS For installations that require two Bayt 980 roadway barriers it is necessary to arrange an underground electrical conduit between the two housing cabinets, for the connection of the photocells or other accessories and for the service cabling (Pic. 4).
  • Page 5 FIXING THE HOUSING CABINET Once satisfied the anchor plate has firmly set into the ground (it is necessary to wait until the concrete has hardened), the Bayt 980 housing cabinet can be mounted onto it and then the four M14 hexagonal nuts can be securely tightened with their respective washers (onto the anchor bolts protruding from the base of the cabinet) as illustrated in Pic.
  • Page 6 HOW TO TURN A LEFT HANDED BAYT INTO A RIGHT HANDED BAYT AND VICE VERSA This operation is necessary in case a previously supplied Bayt 980 be required to be converted to meet the installation requirements or on the customer’s request.
  • Page 7 BAYT 980 oil-hydraulic barrier INSTALLATION OF THE BARRIER BEAM AND POSSIBLE COMBINATIONS The R532 aluminium barrier beam is attached to the beam clamp located on the side of the housing cabinet, facing the entrance that is to be controlled with the barrier. To perform this operation it is first of...
  • Page 8 INSTALLATION OF COUNTERWEIGHTS ON THE BAYT 980 In Bayt 980 installations with beams that are 6,40 metres in length or longer and fittted with a fence, it is necessary to also attach counterweights by means of nuts, bolts and a support bracket (Pic. 14).
  • Page 9 BAYT 980 oil-hydraulic barrier ATTACHMENT OF THE HINGED BARRIER BEAM TO THE HOUSING CABINET According to the demands of the installation it is possible to apply a hinge coupling to Bayt 980 following the instructions in Pic. 15. Ceiling Barrier beam...
  • Page 10 (1) with the three M5 screws (4) on the outside of the cover - Pic. 18. • Replace the cover on the housing cabinet (17) and attach it with the three M8 screws so as to cover the Bayt 980 cabinet, as shown in Pic.
  • Page 11 BAYT 980 oil-hydraulic barrier ELECTRICAL CONNECTIONS FOR 1 BAYT 980 TO THE ELPRO 980 PROGRAMMER The main assembly Cos 982, voltage disconnector, limit switches and blue led light are factory pre-set. For a detailed explanation of all of the functions, including the automatic/semiautomatic...
  • Page 12 • Elpro 980 master: perform all of the connections necessary for the operation of the Bayt 980; any command accessories, radio PCB etc. must be connected exclusively to the Elpro 980 master.
  • Page 13 ADJUSTMENT OF THE BARRIER BEAM IN HORIZONTAL AND VERTICAL POSITIONS The Bayt 980 hydraulic barrier has a simple but effective adjustment system for the moving arm, in opening and in closing, as indicated in Pic. 22. Important: the adjustment of the Bayt 980 arm is factory pre-set. Make sure of the absolute necessity of changing it at the time of the installation, and carry out some opening and closing operations before doing it.
  • Page 14 ADJUSTMENT OF THE BARRIER BEAM IN OPENING POSITION (Pic. 24) Important: the adjustment of the Bayt 980 arm is factory pre-set. Make sure of the absolute necessity of changing it at the time of the installation , and carry out some opening and closing operations before doing it.

  • Page 15: Ordinary Maintenance

    BAYT 980 oil-hydraulic barrier ORDINARY MAINTENANCE Periodically it is necessary to perform maintenance to the Bayt 980 barrier and put some grease by means of the greasing nipples factory-fitted to the equipment (Pic. 26). Important: it is recommended that some grease be put every three...
  • Page 16 POSSIBILITY OF INSTALLATION OF THE ALUMINIUM BARRIER BEAM WITH LED LAMPS In the event of an installation of the Bayt 980 with LED lamps, it is possible to connect the Al.Flex 34 control device and have the lights switching on in series, or all flashing simultaneously (Pic. 29).
  • Page 17 BAYT 980 oil-hydraulic barrier OVERALL DIMENSIONS FOR THE HOUSING CABINET AND SPECIFIC ACCESSORIES 360 mm net length 2,85 - 3,85 - 4,95 6,05 - 7,05 - 8,15 m max 460 ø 80 ø 80 • Zinc-coated anchor bolts: M14x200 In zinc-coated iron.
  • Page 18 Important: do not put oil into the reservoir. It has already been filled. To check the oil level in the reservoir of the Cos 982, the piston must be perpendicular to the housing cabinet of the Bayt 980. Pic. 31...
  • Page 19 SWING AWAY SYSTEM ALA.180 FOR THE PROTECTION OF THE BEAM AND HOUSING IN CASE OF IMPACT ALA.180 system, accessory for BAYT 980 (item code No. 9897L), allows the opening (swinging away) of the beam in the direction of the impact with a vehicle and has been designed to protect the main structural components of BAYT 980 barrier and beam.
  • Page 20 BAYT 980 oil-hydraulic barrier HOW TO FIX THE BEAM TO ALA.180 SWING AWAY SYSTEM Ø 10 Ø 10 Beam Once the beam is well fitted in, Before tightening M10 screw and locknut, make tighten hard the screws of the joint.
  • Page 21 BAYT 980 oil-hydraulic barrier BRINGING BACK ALA.180 SWING AWAY SYSTEM TO ORIGINAL POSITION, AFTER A COLLISION M6x14 Before tightening M10 screw INOX and locknut, make sure the beam is perpendicular (vertical in opening). Pic. 36...
  • Page 22 BAYT 980 oil-hydraulic barrier...

  • Page 23: Maintenance Record

    NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s.

  • Page 24: Product Specifications

    Metallic grey, orange peel finish (for Bayt 980 painted) Housing, door and top Aisi 304 inox, brushed (for Bayt 980 stainless steel) PERFORMANCE (4 s - 4,20 m beam) PERFORMANCE (8 s - 6,40 m beam) Frequency of use very intensive...
