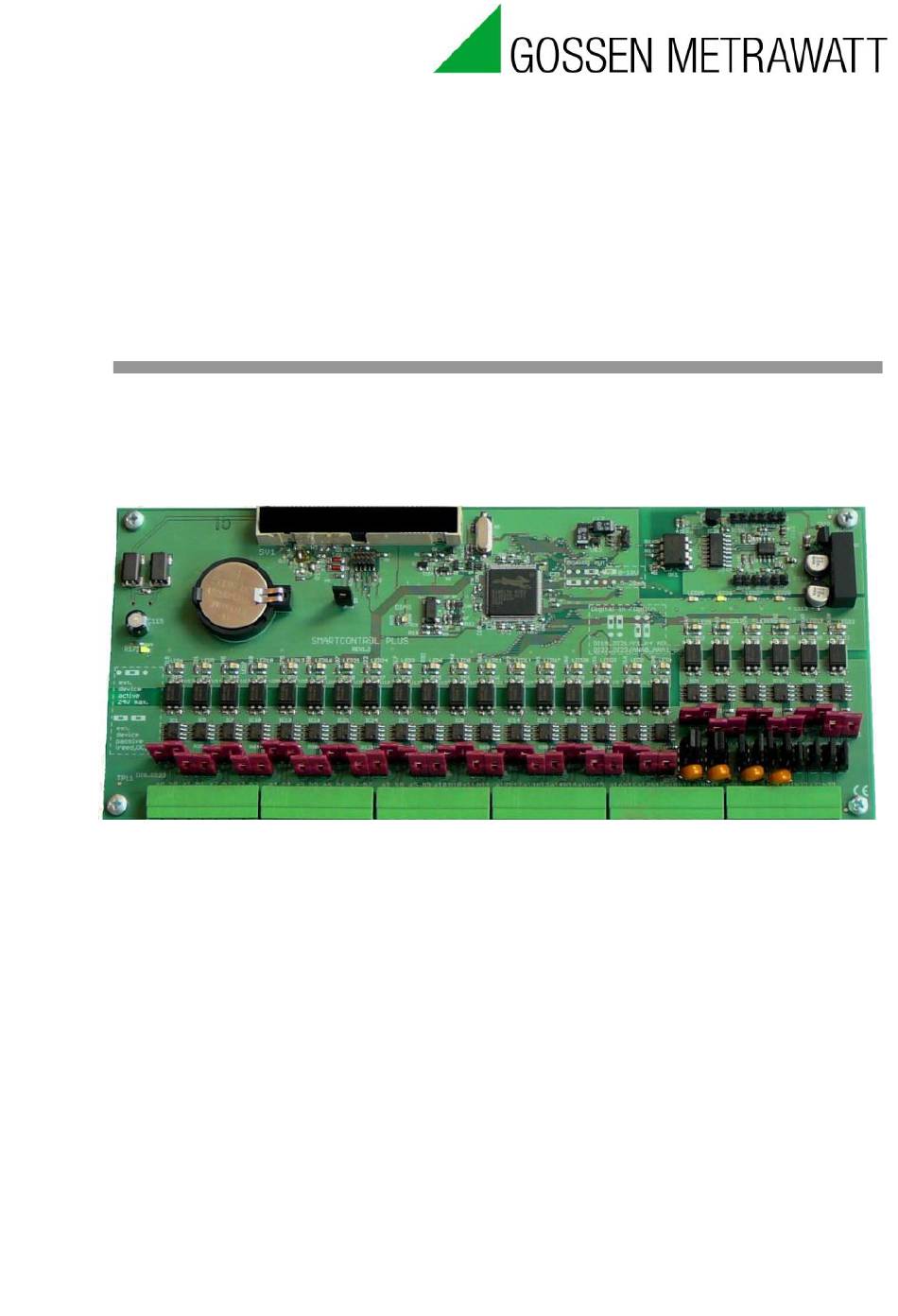

  • Page 1 Installation Instructions SMARTCONTROL | Energy Management System Installation of I/O24 Expansion Module 3-349-595-03 3/5.19...
  • Page 2 1. Prerequisites The I/O24 expansion set can only be installed if a basic PCB from revision level 2.3x onwards is available, see encircled marking in the picture below. GMC-I Messtechnik GmbH...
  • Page 3 2. Installation The installation accessories which come with the standard equipment consist of four 20 mm hexagonal distance sleeves and a 10 cm flat ribbon cable.  Disconnect the SMARTCONTROL from the mains system.  Ground persons and tools before starting the installation work.
  • Page 4  Place the I/O24 interface onto the distance sleeves and establish a screw connection with the four M3 screws.  Connect the expansion slots with the flat ribbon cable. The connection of the input/output terminals and further configuration with the Software SMARTCONTROL Manager is described in the operating instructions (3-349-552-03), which you can find on our Homepage.
  • Page 5 3 Repair and Replacement Parts Service, Calibration Center and Rental Instrument Service If required please contact: GMC-I Service GmbH Service-Center Beuthener Str. 41 90471 Nuremberg, Germany Phone: +49 911 817718-0 Fax: +49 911 817718-253 e-mail: service@gossenmetrawatt.com www.gmci-service.com This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries.
  • Page 6 Edited in Germany • Subject to change without notice • A pdf version is available on the internet Phone+49 911 8602-111 GMC-I Messtechnik GmbH Fax +49 911 8602-777 Südwestpark 15 E-Mail info@gossenmetrawatt.com ● 90449 Nürnberg Germany www.gossenmetrawatt.com GMC-I Messtechnik GmbH...
