Installation Instructions
SMARTCONTROL |
ECS
Energy Management System
Installation of the LON Expansion Set
3-349-594-03
3/5.19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTCONTROL ECS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gossen MetraWatt SMARTCONTROL ECS

Summary of Contents for Gossen MetraWatt SMARTCONTROL ECS

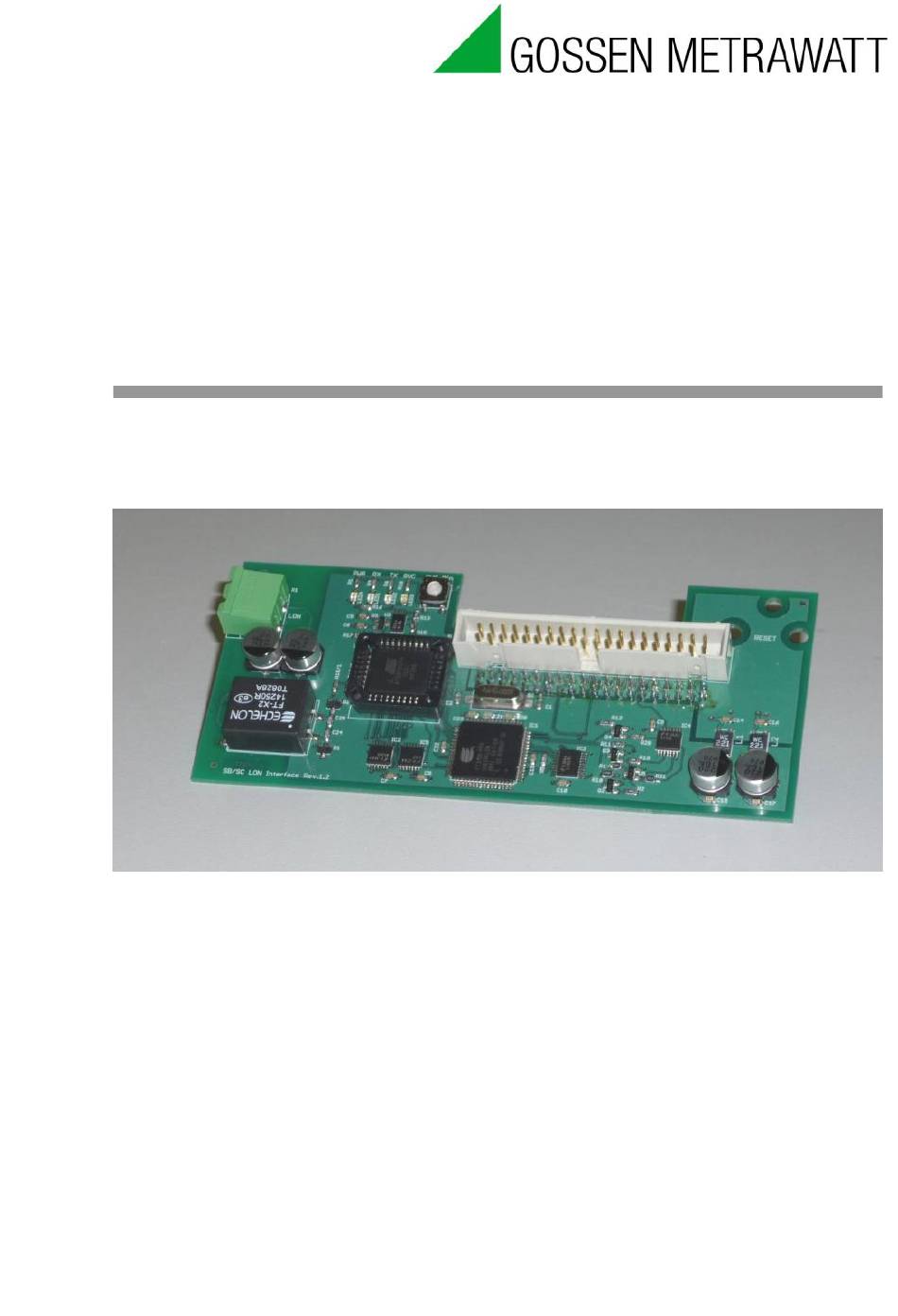

  • Page 1 Installation Instructions SMARTCONTROL | Energy Management System Installation of the LON Expansion Set 3-349-594-03 3/5.19...
  • Page 2 1 Prerequisites The LON expansion set can only be installed if a basic PCB from revision level 2.3x onwards is available, see encircled marking in the picture below. GMC-I Messtechnik GmbH...
  • Page 3 12.3 mm 18.5 mm A opening is required in the housing cover of the SMARTCONTROL standard model for connecting the LON plug. Perforations have already been provided for penetration in the housing of models from version 2 onwards. If no perforations have been provided, an opening of 18.5 x 12.3 mm must be sawn out of the material.
  • Page 4 2 Installation The installation accessories which come with the standard equipment consist of two 18 mm hexagonal distance sleeves.  Disconnect the SMARTCONTROL from the mains system.  Ground persons and tools before starting the installation work.  Remove the top two M3 screws and replace them by the two distance sleeves.
  • Page 5  Insert the LON PCB into the centre of the expansion slot. Please insert with caution and make sure that the all the pins make contact with the appropriate jacks.  Fix the LON expansion PCB afterwards with the two M3 screws. The connection of the LON bus and further configuration with the software SMARTCONTROL manager is described in the operating instructions (3-349-553-03), which you can find on...
  • Page 6 3 Repair and Replacement Parts Service, Calibration Center and Rental Instrument Service If required please contact: GMC-I Service GmbH Service-Center Beuthener Str. 41 90471 Nuremberg, Germany Phone: +49 911 817718-0 Fax: +49 911 817718-253 e-mail: service@gossenmetrawatt.com www.gmci-service.com This address is only valid in Germany. Please contact our representatives or subsidiaries for service in other countries.
