Summary of Contents for Gossen MetraWatt SECUTEST SI

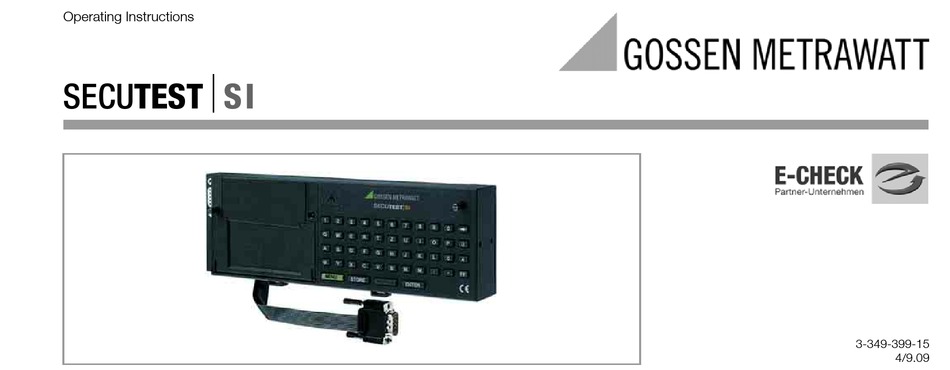

- Page 1 Operating Instructions SECUTESTSI 3-349-399-15 4/9.09...
- Page 2 SECUTESTSI without function MENU GMC-I Messtechnik GmbH...
- Page 3 1 Ribbon cable with RS232 plug for connection of the SI module to the tester Combined keyboard instructions for report entry (only for SECUTEST... test instrument) 2 Knurled screw Deletes the line on which the cursor is positioned. 3 RS232 connection socket for PC, barcode reader or RFID scanner 4 Signal lamp, lights up briefly when connected with the test instrument and remains ...
-
Page 4: Table Of Contents
Contents Page Page Applications ................. 6 How to Display and Store Reports ..........11 Application SECUTEST.................6 How to Display Reports, Enter and Store Texts ..........11 Application PROFITEST 204 and METRISO 5000 D-PI ........6 Automatic Report Storage ................. 13 Meaning of the Symbols on the Unit .............6 Quick Report Storage ................ - Page 5 Contents Page Page Error Message ................20 Technical Data ................21 Maintenance ................24 11.1 How to Reset the SI Module ..............24 11.2 Housing ....................24 11.3 Device Return and Environmentally Compatible Disposal ......24 Repair and Replacement Parts Service ........25 Product Support ................
-
Page 6: Applications
Applications Application PROFITEST 204 and METRISO 5000 D-PI Operation with these test instruments is limited to the function „Entry of The SI (Storage Interface) module SECUTESTSI is a special accessory for comments via the alphanumeric keyboard.“ Only the following chapters the the following test instruments: are relevant in this context: SECUTEST..., PROFITEST 204 und METRISO 5000 D-PI... -
Page 7: Safety Features And Safety Precautions
Safety Features and Safety Precautions When the SECUTESTSI is properly used, the safety of both the user and Data Backup (only instruments of the SECUTEST... series) the unit is assured. In order to meet the legal regulations for electromagnetic compatibility (EMC), an electrically conductive plastic material is used for the housing The measurement, report and entry data can be safely stored in the for shielding. -
Page 8: Getting Started
Getting Started Attention! Installing the SI Module As long as the signal lamp lights up at the SI module, a syn- SECUTEST... only: Remove the cover from the lid of the SECUTEST..For chronization between the test instrument and the SI module is this purpose, press the cover to the side. -
Page 9: Presettings
Request menu Presettings Upon selection of the menu item „Setup“ Press 1x MENU you can perform the following settings: Selection and execution of the functions listed in the menu is done by means of the corre- sponding keys on the test instrument. The other operating controls and connectors should remain unchanged while the SI module is active so that the data traffic will not be dis-... -
Page 10: Enter And Delete Top And Bottom Lines
Enter and Delete Top and Bottom Lines You will get to the next line by pressing the ENTER You can delete the top and bottom lines with the keys Clear Memory To clear the memory, press the ENTER on the SI module. -
Page 11: How To Display And Store Reports
How to Display and Store Reports The test report automatically contains the test result including the mea- sured and limit values as well as information on the visual inspection. Note Further specific information on device under test, customer and repair Storage of the results of the safety and function tests as well as their can be integrated in the test report by entries via the keyboard or a bar- entry into reports and statistics is only possible after tests have been... - Page 12 End the text entry of a line by pressing the Figure at left: key. At the same time, this brings you Info on DUT ENTER to the next line. max. 24 charact. each To store, press the STORE key. returns you to the SI menu.
-
Page 13: Automatic Report Storage
If there are no data available in the test instru- SECUTEST... test instrument: Select the desired test at the function selector switch of the test in- ment when the menu item Protocol is called up, strument. the following message appears: ... -
Page 14: Quick Report Storage
Quick Report Storage Note If many measurements are to be made successively and the results are If a reset has been made accidentally after the test, e.g. by to be evaluated later, the function "Quick report storage" presents itself. changing the position of the function switch or pulling the inter- face cable off, the ident number must again be entered in the This function can only be performed after a test (safety test and/or func-... -
Page 15: Requesting Stored Reports
Requesting Stored Reports A list of all stored reports can be requested at any time in order to display and print out the contents of individual reports at a later date. The first column contains the consecutive numbers, the second one the ident numbers. -
Page 16: Statistics
Statistics Getting Started for Statistics Recording Where statistic data are to be recorded, the associated class designation Altogether, statistic data of a maximum of eight equipment classes can must be defined prior to a measurement by selection of Class. If a class be recorded. -
Page 17: View Statistic Data
The safety tests as well as the function tests can now be performed for View Statistic Data the selected class. Select the Statistics menu to request statistic data: After the start of a report recording, the setting First or All in the statistics ... -
Page 18: Delete Statistic Data
Delete Statistic Data With , move the cursor to Delete and press Select the class the data of which is to be deleted Select Delete: all to delete the stored statistic data of all classes! After all classes are deleted, class A is set active and the error type of each class is set to First. -
Page 19: Operation With Barcode Reader
Operation with Barcode Reader Configuring the Barcode Reader The barcode reader B3261 and Z720A are configured for the following The barcode reader B3261 and Z720A (each as accessory) allow for all barcodes: information available in barcode form to be quickly, easily and safely CODE 39 / CODE 128 / EAN13 (12 digits) * entered into the test reports. -
Page 20: Data Exchange With A Pc
Error Message Data exchange with a PC Transmission of the data to the PC is only possible when the SI module Message when the STORE key has been is connected to the test instrument, which, in turn is connected to the pressed although there is no free memory. -
Page 21: Technical Data
Technical Data Data Memory Connection elements RAM (data) 100 kbytes Real-time clock with date battery-backed by embedded Lithium cell Fasteners on test instrument 2 knurled screws for fastening in the lid of the test instrument; transmission of mea- Interface sured data and power supply via ribbon cable and 9-pin D-SUB connector, to be Type RS232, serial, per DIN 19241... - Page 22 The 9-pin D-SUB connector for connection of the SI module to the Reference Conditions SECUTEST 0701S tester has the following pin assignment: Auxiliary power 0.5 V DC or 8 V 0.5 V rectified 1: Enable remote control „Plus“ ...
- Page 23 Electromagnetic Compatibility (EMC) Interference emission, interference immunity DIN EN 61326 Mechanical Design Protection type IP 20 for the housing Dimensions 240 mm x 81 mm x 40 mm (excl. knurled screws and ribbon cable) Weight approx. 0.4 kg GMC-I Messtechnik GmbH...
-
Page 24: Maintenance
Maintenance 11.3 Device Return and Environmentally Compatible Disposal The instrument is a category 9 product (monitoring and control instru- 11.1 How to Reset the SI Module ment) in accordance with ElektroG (German Electrical and Electronic Should the SI module no longer react, e.g. due to incorrect operation, it Device Law). -
Page 25: Repair And Replacement Parts Service
Repair and Replacement Parts Service Product Support When you need service, please contact: When you need support, please contact: GMC-I Service GmbH GMC-I Messtechnik GmbH Service Center Product Support Hotline Thomas-Mann-Straße 20 Phone +49 911 8602-0 90471 Nürnberg • Germany +49 911 8602-709 Phone +49 911 817718-0 E-Mail support@gossenmetrawatt.com... - Page 26 Edited in Germany Subject to change without notice A pdf version is available on the internet Phone +49 911 8602-111 GMC-I Messtechnik GmbH +49 911 8602-777 Südwestpark 15 E-Mail info@gossenmetrawatt.com 90449 Nürnberg • Germany www.gossenmetrawatt.com...
