Summary of Contents for Bartscher VP3000 1R

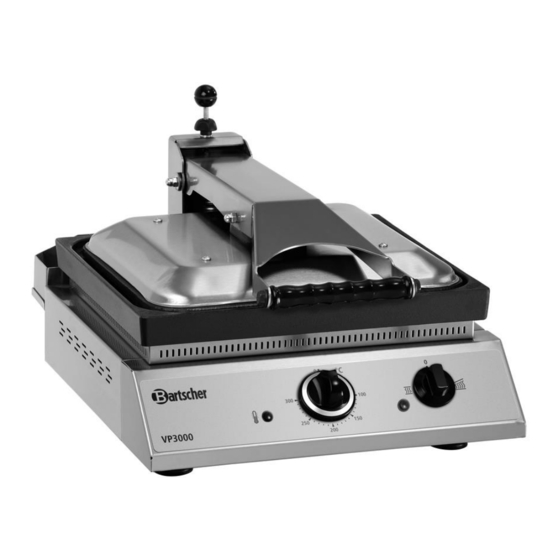

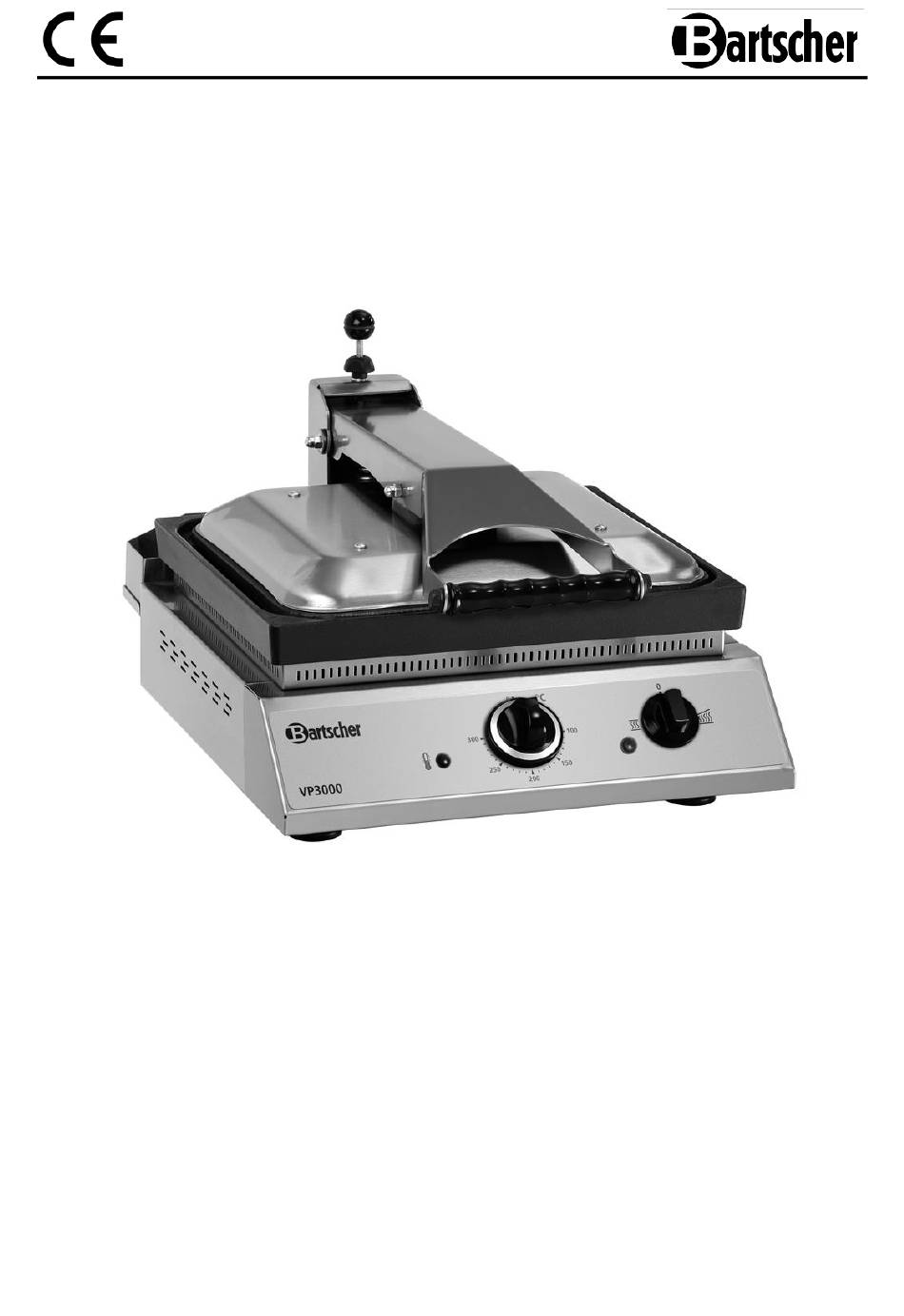

- Page 1 VP3000 1R A150685 Original-Gebrauchsanleitung V2/0418...
-
Page 2: Table Of Contents
4.2 Technical specification ..................26 5. Installation and operation ..................27 5.1 Installation ......................27 5.2 Operation ......................28 6. Cleaning ........................31 7. Waste disposal ......................32 Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120 33154 Salzkotten... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. - Page 5 Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
- Page 6 The supply cable must be disconnected from the socket only by pulling the plug. Never carry or lift the device by the supply cable. In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 7: Proper Use
WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: To avoid a risk of fire and damaging the device, never place kitchen utensils, towels, paper etc. on the grill plate. Never use the device near the flammable materials (e.g. gasoline, spirits, alcohol, etc.). -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Thermal insulator handle Upper grill plate Lower grill plate Control panel Feet Body Ventilation holes Fat collecting pan Fat drip spout Height adjustment screw - 25 -... -
Page 11: Control Panel
Heating indicator (green) Temperature control knob ON/OFF indicator (red) Heating power control knob 4.2 Technical specification Name Contact grill VP3000 1R A150685 Code-no.: Material: Body: stainless steel; grill plates: cast iron corrugated grill surface, W 330 x D 300 mm ... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation Positioning Unpack the device and remove all packing material. Remove the protective foil form the device. If there are any glue residues on the device, remove them using appropriate solvent. Screw the supplied feet into the appropriate holes. CAUTION! Never remove the rating plate and any warning signs from the device. -
Page 13: Operation
5.2 Operation Prepare the device Before the first use, clean the device thoroughly according to the instructions included in section 6 „Cleaning“. Mount the fat collecting pan on the left side of the lower grill plate. The pan is used for collecting vegetable and animal fat dripping from the device during grilling. - Page 14 The device allows for selecting 2 heating power levels which are set by means of the heating power control knob: standard heating power with low energy consumption (turn the control knob left). Heaters of the upper and lower grill plates are switched off.
- Page 15 WARNING! Risk of burns! Protect your face and hands against possible fat splashes! Put the temperature in the range from 50 °C do 100 °C (standby mode) during breaks between subsequent grilling stages. If necessary set the higher temperature and the device will heat up in a few minutes.
-
Page 16: Cleaning
6. Cleaning WARNING! Before cleaning, disconnect the device from the power supply (unplug!) and leave to cool off. Never clean the device with use of pressurized water jet. Protect the device from the water penetration. Cleaning of the device o Clean the device and the end of each working day or if necessary also between the grilling processes. -
Page 17: Waste Disposal
For that purpose disconnect device from mains supply and remove mains connection cable from the device. For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH phone: +49 5258 971-0 Franz-Kleine-Str. 28 fax: +49 5258 971-120...
