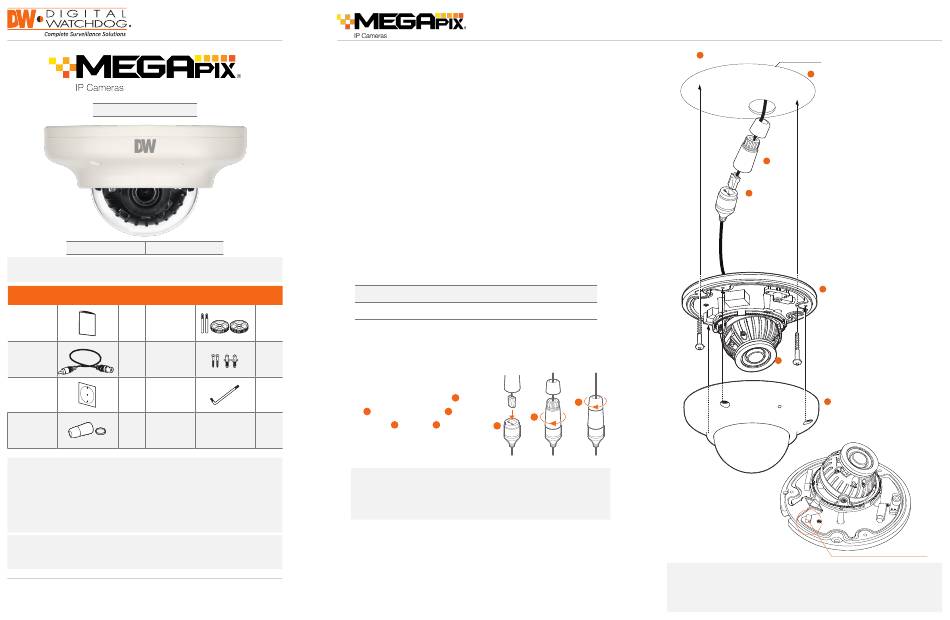

Digital Watchdog MEGAPIX DWC-MV72Wi4A Quick Start Manual

Quick Start Guide
DWC-MV72Wi4A / DWC-MV72Wi28A
Username: admin Password: admin
NOTE: It is highlighy recommended to change the admin's default
password after installation.
WHAT'S IN THE BOX
Mount Bolt &
QSG Manual 1 Set
Nut – 2pcs
Test Video Screw & Plastic
1 Set
Cable Anchor – 2pcs
Template Sheet
for installing by 1 Set Torx Wrench
Bolt & Nut
Waterproof
1 Set
Cap
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search
bar. Results for applicable part numbers will populate automatically based on the
part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides
(QSG), software and firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set-up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: 866-446-3595 / 813-888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must bear five times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover
to be damaged. This may cause a breakdown or fire.
3. For the installation process, remove the dome cover from the camera module
by loosening the three (3) screws on the dome. Use the wrench provided with
the camera.
4. Using the mounting template sheet or the camera itself, mark and drill the
necessary holes in the wall or ceiling.
STEP 2 – CABLING THE CAMERA TO EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
5.
connections.
a. NETWORK CONNECTIONS – The camera supports a PoE power
connection. Use a PoE Switch to connect the camera using an Ethernet
cable for both data and power.
Power Requirements
POE IEEE 802.3af Class2
1 Set
STEP 3 – INSTALLING THE CAMERA
6. Attach the main body to the mount bracket by tightening the lock screw
1 Set
using the six-angle wrench.
7. To use the camera's water proof wiring:
1 Set
(1). Install the LAN cable into
(2). will be assembled to
b
(3). Thread
Note: To ensure moisture seal, make sure the o-ring is in place between
(a) and (b). In extreme environments use of an outdoor rated sealer
is recommended.
Note: When using the waterproof cap, crimp the RJ45 connector after
passing the cablie through the waterproof cap.
8. Use the camera's 3-Axis gimbal to adjust the camera's tilt and angle. The
camera's maximum tilting angle is 70.
9. Assemble the dome cover over the camera body and detach the protecting
film from the dome bubble.
digital-watchdog.com
Power Consumption
Max. 5.2W
a .
with a 1/4 turn.
a
b
c tightly to .
b a
1
3 5
c
Resetting the camera: To reset the camera, use the tip of a paper clip or
a pencil and press the reset button. Pressing the button for five (5) seconds
will initiate a camera-wide reset of all the settings, including network settings.
Quick Start Guide
Template Sheet
2
4
7 3
6
8
9
Reset Button
