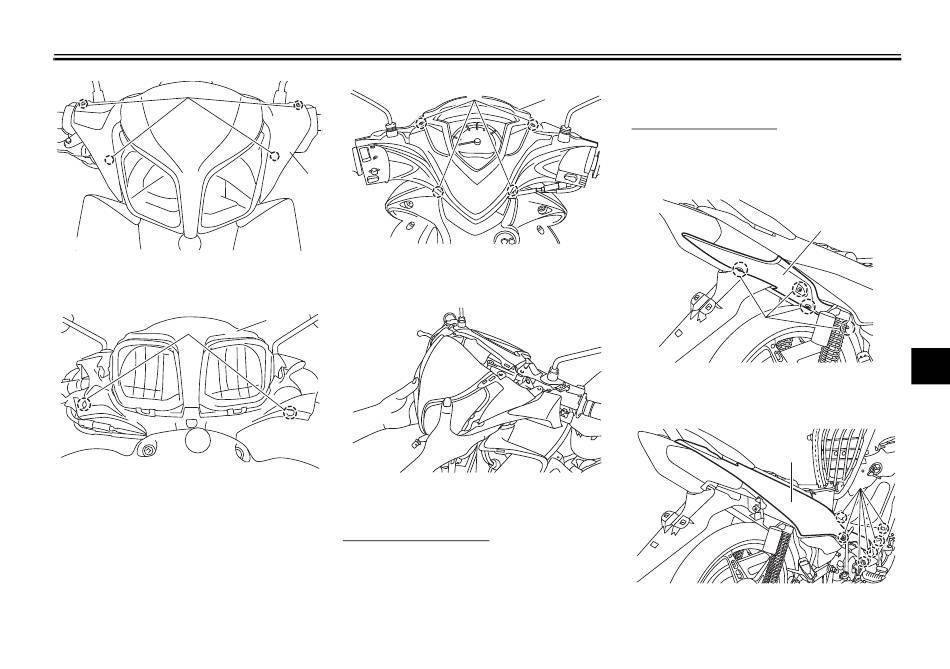

1. Cowling B
2. Screw
2
ZAUV0328
1. Cowling B
2. Screw
1
ZAUV0671
1. Cowling B
2. Screw
1
ZAUV0330
2. Disconnect the headlight coupler.
To install the cowling
1. Connect the headlight coupler.
2. Place the cowling in the original
position, and then install the
screws.
Periodic maintenance and adjustment
2
1
7-8
Cowlings C and D
To remove a cowling
Remove the screws and the quick fas-
tener screw, and then pull the cowling
off as shown.
2
1. Cowling D
2. Screw
1
1. Cowling C
2. Screw
1
