Joovv Max Quick Start Manual

FIG. A
FIG. B
FIG. C
If you'd prefer instructional setup
videos, please visit:
www.joovv.com/setup
Joovv Max & Joovv Quad

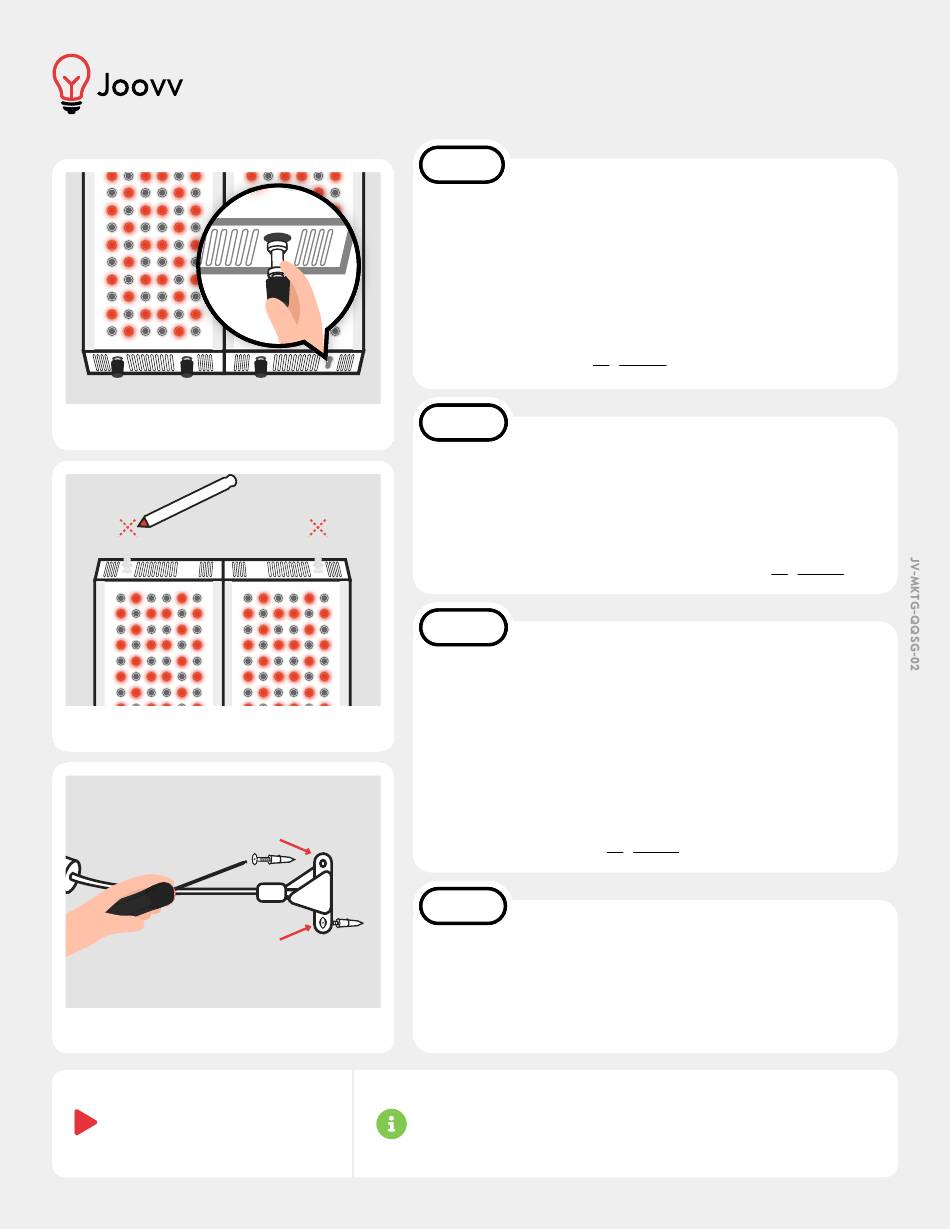

Quickstart Guide — Wall Setup
STEP 1
After assembling your Max or Quad following the
steps on the opposite side, attach the included floor
bumpers on the bottom end caps. First, insert the
end with the nut into the slotted hole and slide back
into position. Then, while pulling to hold the nut in
position, twist the bumper clockwise to lock it in
place, as shown in Figure A.
STEP 2
Insert the threaded posts into the far left and far
right positions on your Max or Quad system. Place
the system in position on the wall at the desired
location. Then, with a pencil, mark the spot directly
behind the threaded posts, as shown in Figure B.
STEP 3
Next, install the anti-tip bracket to the wall. Place
the bracket on the wall with the upper hole aligned
with the previously-marked location. Then mark the
lower hole position. Drill a 7/32" hole for all 4
locations for the included drywall anchors. Use a
hammer to tap the anchors into position, then
attach the brackets to the wall using the included
screws, as shown in Figure C.
STEP 4
Place your Max or Quad back into position and
screw in the end of the steel cables to the threaded
posts. Plug in the power cords and you're ready to
start Joovvin'!
Failure to securely install the anti-tip kit could could result in serious
injury. For comprehensive instructions, please review the product
manual that was included with your Joovv devices.
