successfully.

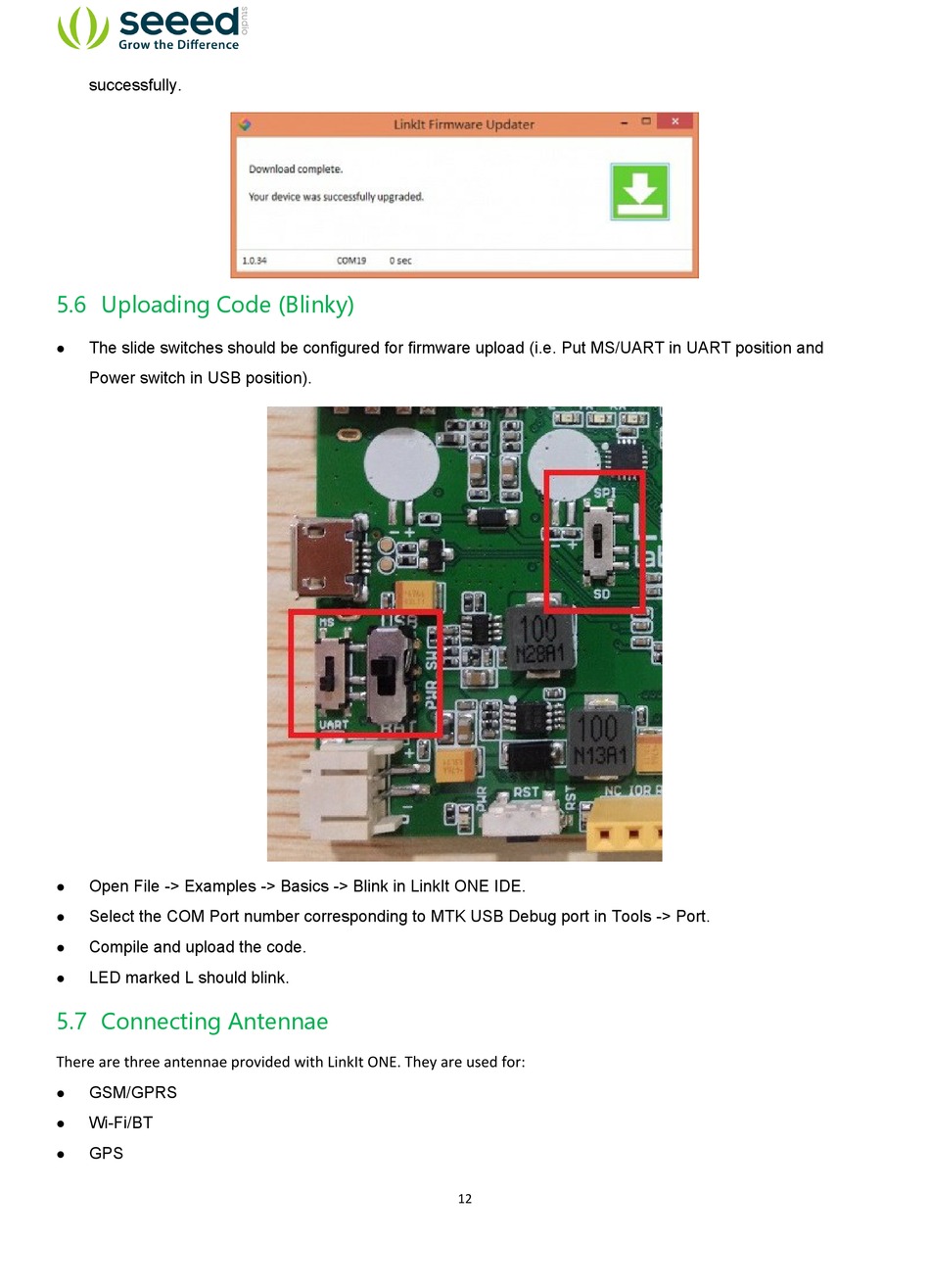

5.6 Uploading Code (Blinky)

The slide switches should be configured for firmware upload (i.e. Put MS/UART in UART position and

Power switch in USB position).
Open File -> Examples -> Basics -> Blink in LinkIt ONE IDE.

Select the COM Port number corresponding to MTK USB Debug port in Tools -> Port.

Compile and upload the code.

LED marked L should blink.


5.7 Connecting Antennae

There are three antennae provided with LinkIt ONE. They are used for:
GSM/GPRS

Wi-Fi/BT

GPS

