05/19
SUNNI SEAT
INSTRUCTIONS FOR USE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNNI SEAT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for smirthwaite SUNNI SEAT

Summary of Contents for smirthwaite SUNNI SEAT

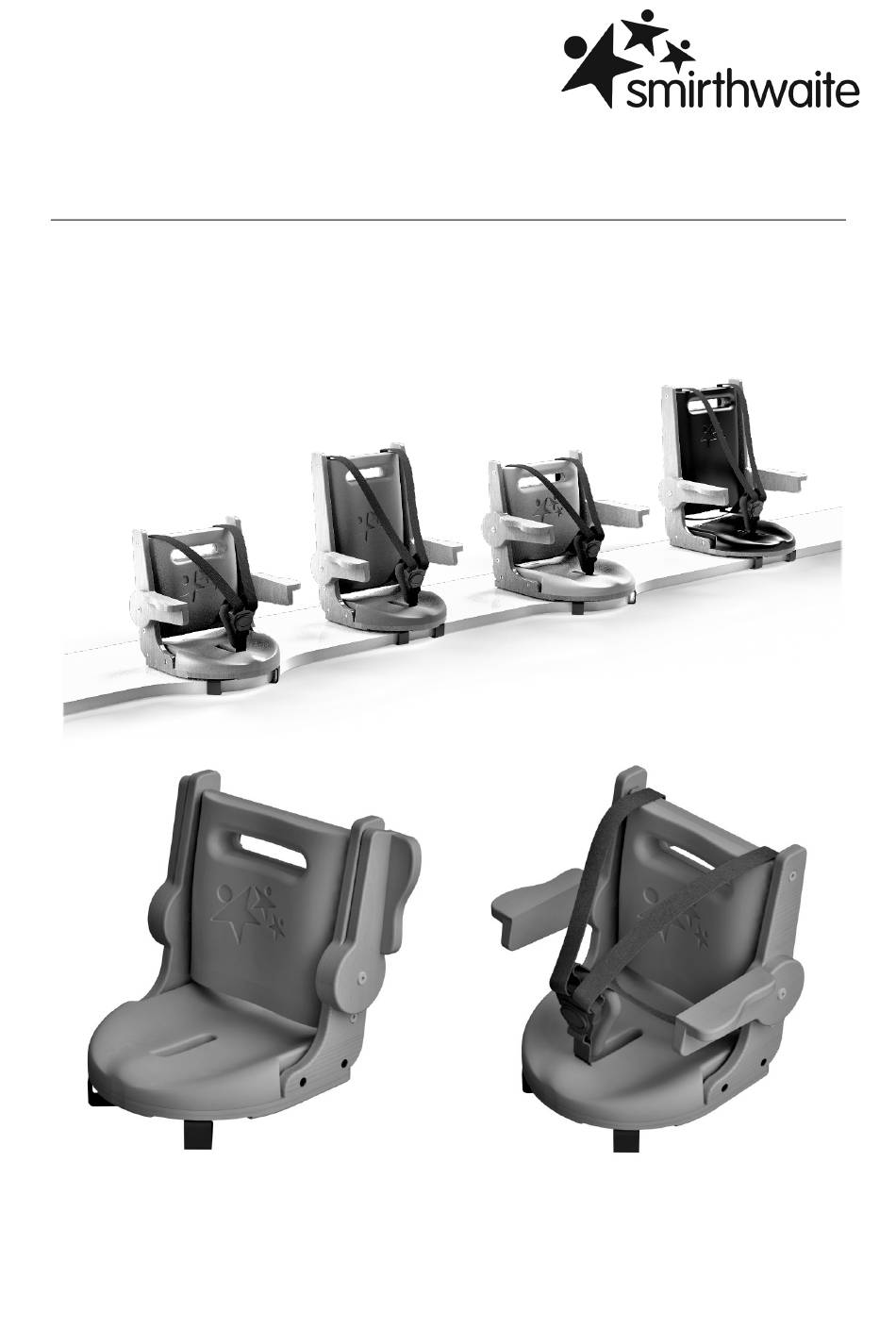

  • Page 1 05/19 SUNNI SEAT INSTRUCTIONS FOR USE...

  • Page 2: Table Of Contents

    Illustration of Your Chair ................... 2 Technical Data ....................2 For Your Safety ....................3 Unpacking Your Sunni Seat ................9 Setting Up and Adjusting Your Sunni Seat ............. 10 5-Point Harness ..................10 5.1.1 Adjusting the Base Strap ..............10 5.1.2...

  • Page 3: Introduction

    INTRODUCTION Thank you for choosing the Sunni Seat from Smirthwaite Ltd in conjunction with Sunni. This simple chair can be hooked onto a range of stools and seats to offer a higher level of postural support. IMPORTANT! These instructions should be read by all therapists and carers using the equipment and should be retained for future reference.

  • Page 4: Illustration Of Your Chair

    F - 5 Point Harness TECHNICAL DATA Size 1 High Back 2 High Back Code Dimension Overall Height (mm) Back Height (mm) Overall Width (mm) Seat Width (mm) Overall Depth (mm) Seat Depth (mm) User weight (kg) Sunni Seat 2...

  • Page 5: For Your Safety

    • If you believe the chair or any fitted accessory to be faulty at any time, DO NOT USE – contact Smirthwaite by telephone on +44 (0)1626 835552. • The therapist should be familiar with the methods of adjustment and have completed all adjustments appropriately to meet the needs of the child before transferring the child onto the chair.
  • Page 6 Closed To adjust the tray depth; • Remove bolts (N) (Two per side). • Locate into desired position, using the holes on the bottom of the tray. • Retighten the bolts (N) in desired location. Sunni Seat 4...
  • Page 7 To adjust the height of the footrest; • Loosen handwheels (R). • Lift footplate to desired height. • Retighten handwheels (R). To Flip up the footplate; • Loosen handwheels (R). • Flip Footplate up 90 degrees • Retighten handwheels (R). Sunni Seat 5...
  • Page 8 SAFETY STRAP BUCKLE To operate the buckle; • To fasten, simply connect the two parts, the buckle will ‘click’ and lock in place. • To unfasten, press areas (X) to unlock the buckle and pull the two buckles apart. Sunni Seat 6...
  • Page 9 • Loop the free end of the strap around the desired object. • Bring the loose end back through the toggle (Y) following the black arrows, looping out, around and down through the toggle (Y). • To tighten, pull on the loose end of the strap. Sunni Seat 7...
  • Page 10 • Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by Smirthwaite Ltd authorised personnel. If you believe this product to be faulty -DO NOT USE- Contact G&S Smirthwaite Ltd on T: +44 (0)1626 83552. Sunni Seat 8...

  • Page 11: Unpacking Your Sunni Seat

    • Please take note of any instructions on the packaging/box when unpacking. • Once the chair has been carefully unpacked, please check all parts. STOP! If you believe this product to be faulty – DO NOT USE – Contact Smirthwaite Ltd on T: +44 (0) 1626 835552 Sunni Seat 9...

  • Page 12: Setting Up And Adjusting Your Sunni Seat

    SETTING UP AND ADJUSTING YOUR SUNNI SEAT 5-POINT HARNESS The 5-point harness can be easily adjusted and unbuckled to allow the user easy access to the chair whilst also getting a high level of support. 7.1.1 ADJUSTING THE BASE STRAP •...

  • Page 13: Unbuckling/Buckling The Harness

    • To buckle, align the 2 rectangular sections on the buckles on the 2 longer straps (I) & (J) and insert them into the corresponding cavity in the buckle clip (K) Sunni Seat 11...

  • Page 14: Removing The Cushions

    Both cushions can be attached to the chair by aligning the holes in the cushions with the corresponding holes in the frame. Then two bolts per cushion need to be inserted through the frame and threaded into the inserts that are in the cushions. Sunni Seat 12...

  • Page 15: Rotating The Base Clips

    Only loosen the bolts in the curved slots. • Once loosened, the clips will be able to rotate. Once the clips are in the desired position, the bolts can be retightened. Sunni Seat 13...

  • Page 16: Accessories

    Closed To adjust the tray depth; • Remove bolts (N) (Two per side). • Locate into desired position, using the holes on the bottom of the tray. • Retighten the bolts (N) in desired location. Sunni Seat 14...

  • Page 17: Footrest

    To adjust the height of the footrest; • Loosen handwheels (R). • Lift footplate to desired height. • Retighten handwheels (R). To Flip up the footplate; • Loosen handwheels (R). • Flip Footplate up 90 degrees • Retighten handwheels (R). Sunni Seat 15...

  • Page 18: Safety Strap

    SAFETY STRAP BUCKLE To operate the buckle; • To fasten, simply connect the two parts, the buckle will ‘click’ and lock in place. • To unfasten, press areas (X) to unlock the buckle and pull the two buckles apart. Sunni Seat 16...

  • Page 19: Safety Strap Toggle

    • Loop the free end of the strap around the desired object. • Bring the loose end back through the toggle (Y) following the black arrows, looping out, around and down through the toggle (Y). • To tighten, pull on the loose end of the strap. Sunni Seat 17...

  • Page 20: Care And Maintenance

    • Store the chair in a cool dry place out of direct sunlight. • DO NOT use bleach, solvents, abrasives, synthetic detergents, wax polishes, antibacterial sprays or wipes. • For further information, please refer to MHRA or your NHS cleaning guidelines. Sunni Seat 18...

  • Page 21: Daily Checks

    The user should not be seated while the checks are carried out. 10.2 SERVICE INTERVAL The Sunni Seat should be serviced every 3 years. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. 10.3...

  • Page 22: Extending Nominal Service Life

    10.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.

  • Page 23: Warranty & Service

    If in any doubt, ALWAYS seek ADVICE. WARRANTY & SERVICE Smirthwaite Ltd warrants the products detailed on your order to be free from defects in materials and workmanship for a period of 2 years from date of delivery. If a fault develops during the period, please call Customer Services by email or telephone 01626 835552 who will advise you on the best course of action.

  • Page 24: Service Inspection

    11.0 SERVICE INSPECTION 11.1 PRODUCT INFORMATION Model: Size: Date of Manufacture: Serial Number: Final Inspection: 11.2 SERVICE & INSPECTION RECORD FORM Date Procedure Service Personnel Sunni Seat 22...
  • Page 25 Smirthwaite, 16 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk www.smirthwaite.co.uk...
