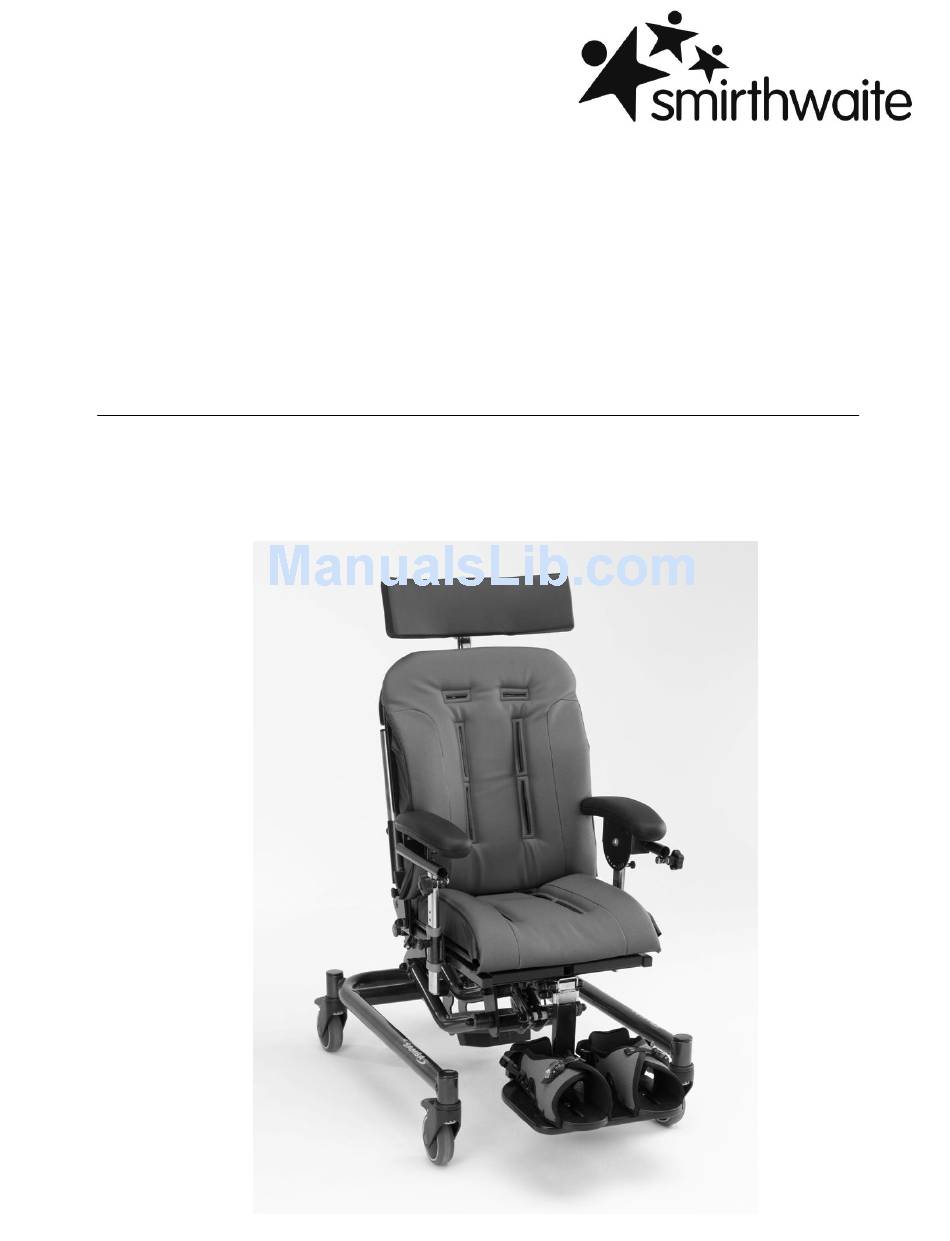

  • Page 1 4/11 Samba INSTRUCTIONS FOR USE Codes 8801-04 & 8810...

  • Page 2: Table Of Contents

    1.0 INTRODUCTION Thank you for choosing the Smirthwaite Samba Chair. The Samba is a highly adjustable, high-low, tilt in space chair that offers a modular midline support system for children requiring greater levels of postural control. The variable seat height allows a child to engage in education, play and everyday activities at peer level, supporting their ongoing development.

  • Page 3: Illustration Of Your Chair

    2.0 ILLUSTRATION OF YOUR CHAIR A. Contoured Seat B. Contoured Backrest C. Armrest D. Headrest E. Footrest F. Sandals G. Lockable Castors H. Tray...
  • Page 4 I. Push Handle J. Actuator K. Tilt in Space lever...

  • Page 5: For Your Safety

    G&S Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices. Any repairs required must be carried out by G&S...

  • Page 6: Unpacking Your Chair

    – this must be fully pulled out in order to charge and adjust the chair height. If you believe this product to be faulty - DO NOT USE - Contact G&S Smirthwaite Ltd on T: +44 (0) 1626 835552.

  • Page 7: Setting Up And Adjusting Your Chair

    5.0 SETTING UP AND ADJUSTING YOUR CHAIR Set up is made safer and easier by following the instructions below. PLEASE NOTE: ALWAYS TURN LEVER LOCKS, HANDWHEELS AND SCREWS CLOCKWISE TO TIGHTEN OR ANTI-CLOCKWISE TO LOOSEN. THE CHAIR MUST BE FULLY ADJUSTED BY A THERAPIST OR TRAINED BEFORE USE.
  • Page 8 5.2 ARMRESTS 5.2.1 HEIGHT To raise or lower the armrests  Release spring plunger (A).  Slide armrests desired position.  Replace plunger (A) to lock.  Repeat on opposite side.  Ensure both armrests are at the same height. 5.2.2 ANGLE ...
  • Page 9 5.3 BACK ADJUSTMENTS 5.3.1 HEIGHT To raise or lower the backrest  Pull the indexing plunger pin (A) on both sides of the chair place into park position.  Slide backrest to desired height.  When seated, child’s shoulder should be slightly above slots shoulder harness to be used.
  • Page 10 5.4 MID LINE SUPPORT SYSTEM  The Mid line support system is secured to a centrally positioned block (A) that can be adjusted vertically on the back of the chair by loosening hand wheel (B). 5.4.1 PELVIC STRAP  Push the 2 short ends through the slots (C) on the seat base.
  • Page 11  Use the straps to gently adjust the tension between the mid line point and the chest plate. 5.5 LATERAL SUPPORTS  Lateral supports can be fitted to the Samba chair.  The supports swing away from the chair when plunger operated, easing client transfer.
  • Page 12 5.7 FOOTREST  The footrest assembly adjusted for height position by using the hex key provided and loosening screw (A).  Ensure screw securely tightened before using the chair.  Each footplate can be independently indexed by loosening the hand wheel (B) as shown.
  • Page 13  Ensure bolts (C) are tightened once the desired angle is achieved. 5.10 TRAY  The tray is fitted to the Samba by inserting the tray tubes into the tube receivers found on each arm rest (A).  The tray is then secured into place by tightening hand wheel (B).

  • Page 14: Care & Maintenance

    6.0 CARE AND MAINTENANCE All our wooden chairs are easy to clean. Each chair has anti-bacterial properties ensuring that surfaces are kept hygienic to reduce any risk of cross infection. ! CAUTION CLEANING IS RECOMMENDED ON A REGULAR BASE  Clean upholstery and wooden parts with a damp cloth and mild detergent. ...

  • Page 15: Guarantee & Service

    6.2 ANNUAL SERVICE The Samba chair should be serviced annually. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. 7.0 GUARANTEE & SERVICE The chair is issued with a full parts and labour guarantee for 2 years from the date of delivery.

  • Page 16: Warranty & Aftersale

    9.0 WARRANTY & AFTERSALE 9.1 Product Information Model: Size: Date of Manufacture: Serial Number: 9.2 Service & inspection record form: Date Procedure Service Personnel...
  • Page 17 G&S Smirthwaite, 17 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk W: www.smirthwaite.co.uk...
