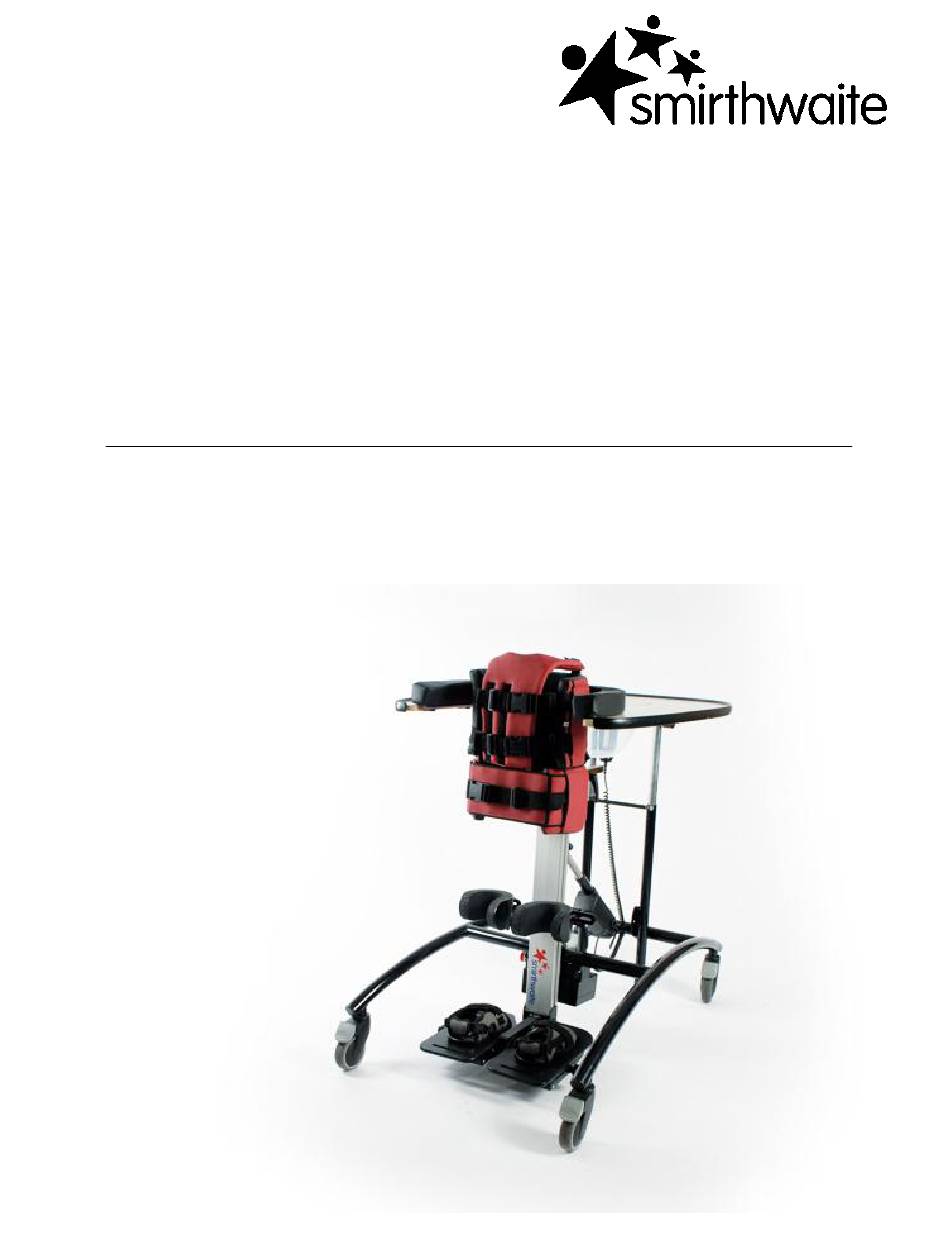

- Page 1 2/11 Whirl INSTRUCTIONS FOR USE Codes 8351-8354...
-
Page 2: Table Of Contents
10.0 WARRANTY AND AFTER SALES 1.0 INTRODUCTION Thank you for choosing your new Smirthwaite Whirl Stander. The Whirl has been designed to give excellent symmetry and enable children from a young age to gradually develop and maintain their ability to weight bear. It is suitable for children who require minimal to high levels of support and control. -
Page 3: Illustration Of Your Whirl
2.0 ILLUSTRATION OF YOUR WHIRL STANDER A. Padded thoracic support B. Padded pelvic support C. Activity tray and bowl D. Knee cups E. Mechanical angle adjustor* F. Indexable footrests *An electric actuator version is also available. 3.0 FOR YOUR SAFETY PLEASE READ THESE INSTRUCTIONS BEFORE MAKING ANY ADJUSTMENTS. -
Page 4: Setting Up Your Stander
Set the stander up approximately to these measurements and make final adjustments when the user is in place. Smirthwaite offer, at no extra charge, an appointment with a product specialist who will assist in the initial product set up. 5.0 ADJUSTING YOUR STANDER PLEASE NOTE Provided with your Whirl you will find a 4mm and 6mm Hexagon key. - Page 5 5.2 KNEE BLOCK ADJUSTMENT Depth (Flexion / Extension) Loosen the lever lock (B). Slide the knee block through the clamp to the desired depth. Retighten the lever lock (B). Height Loosen screw (C) with the 6mm hexagon key. ...
- Page 6 5.4 THORACIC SUPPORT Width Loosen 4 screws (K) using the hexagonal driver. Slide the aluminum sides to the desired width. Retighten the 4 screws (K). Fine Height The wooden block (L) on the rear of the thoracic support has two screws that, when loosened, permit the movement of the thoracic support through a fine...
- Page 7 5.6 COLUMN ANGLE ADJUSTMENT (MECHANICAL) Angle Adjustment Ensure hand wheel (Q) is tight to engage the drive. Rotate handle (R) until desired angle is achieved. Disengage hand wheel (Q) to ensure the angle adjustment is secure. 5.7 COLUMN ANGLE ADJUSTMENT (ELECTRIC) Angle Adjustment ...
- Page 8 5.8 BATTERY AND SAFETY CUT OUT Battery Care Charge the battery 24 hours before use. Keep the battery fully charged. Charge once a week, overnight for instance To charge, plug the charging unit into the mains - ensure the red stop button is released.
-
Page 9: Transfer
5.9 INDEXING FOOT RESTS Angle Adjustment Accurate foot placement can be achieved by making incremental adjustments of each foot rest. Loosen the locking hand wheel (W) on the foot rest. Pull the footrest outward slightly and rotate to the desired angle, using the stopper pin as a guide (X). -
Page 10: Care And Maintenance
This guarantee is issued at the discretion of G&S Smirthwaite Ltd on RTB (Return to Base) basis. If you have any questions or doubts relating to the safety or use of the product please contact us for advice or assistance on: T: +44 (0) 1626 835552 E: info@smirthwaite.co.uk. -
Page 11: Continuous Improvement
Should you have any suggestions or comments please send them to our product design department at: info@smirthwaite.co.uk. G&S Smirthwaite Ltd reserve the right to change the specification or material without prior notice. For catalogues, help and further information on our products please contact us at: G&S Smirthwaite Ltd... -
Page 12: Warranty And After Sales
10.0 WARRANTY & AFTERSALE 10.1 Product Information Model: Size: Date of Manufacture: Serial Number: 10.2 Service & inspection record form: Date Procedure Service Personnel... - Page 13 G&S Smirthwaite, 17 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: info@smirthwaite.co.uk W: www.smirthwaite.co.uk...
