#681 Camo Box

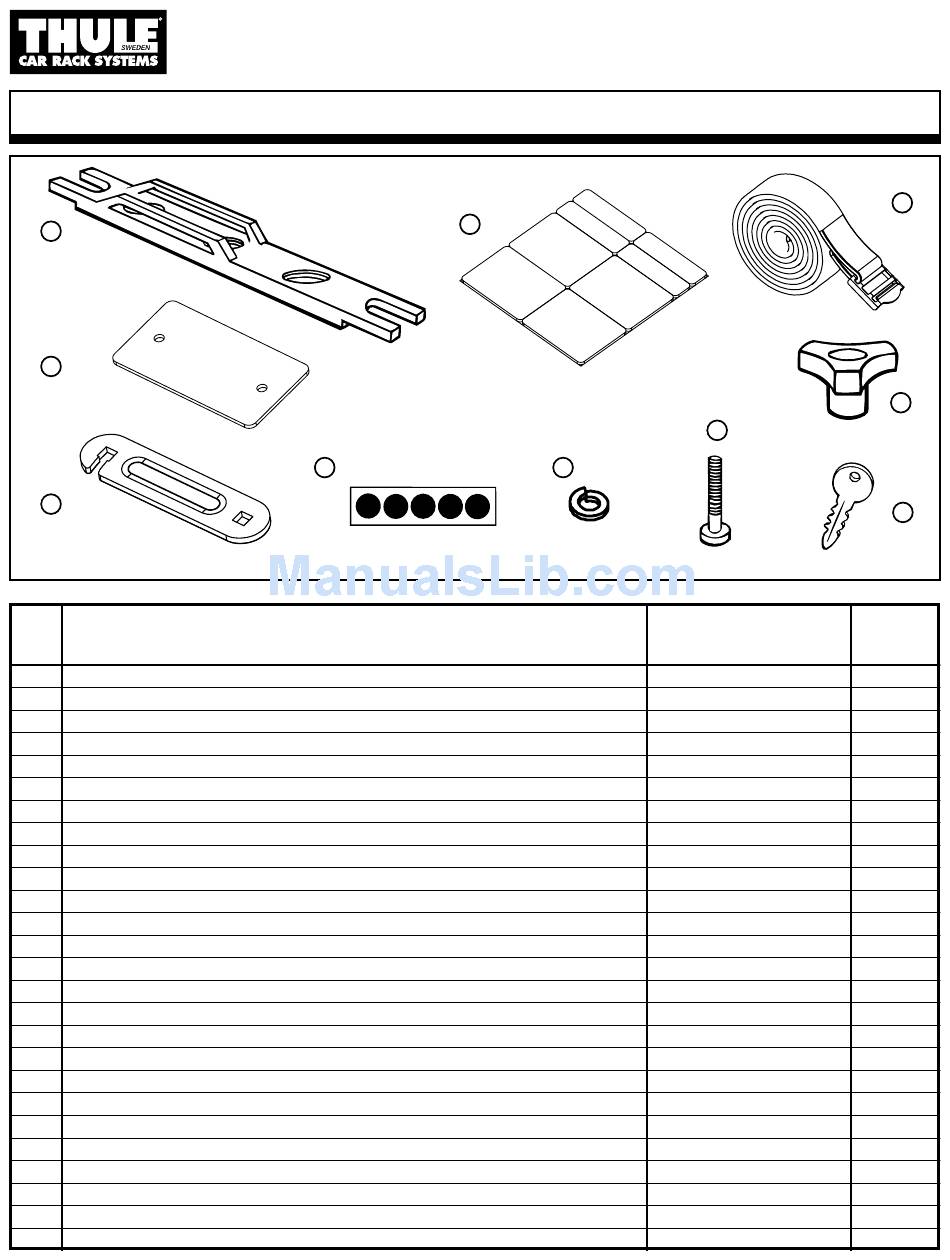

PARTS INCLUDED / PIÈCES INCLUSES / PIEZAS INCLUIDAS
A
B
C
part
pièce
parte
A
Bracket / Support de fixation / Abrazadera
B
Plate / Plaque / Placa
C
Quick-Mount Bracket / Support de montage rapide / Abrazadera de montaje rápido
D
Sealant Decals / Autocollants d'étanchéité / Calcomanías selladoras
E
Pads / Cales / Almohadillas
F
Split Washer / Rondelle fendue / Arandela partida
G
Carriage Bolt / Boulon de carrosserie / Perno de carruaje
H
Strap / Sangle / Correa
I
Knob / Écrou / Perilla
J
Key / Clé / Llave
E
D
description
description
descripcion
G
F
part number
numéro de pièce
numero de parte
10375
04998
04973
10171
05001
10180
10403
10169
04877
–––––––
H
1
J
qty.
qté
cantidad
4
4
4
1
1
8
8
2
8
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thule Camo Box 681
Summary of Contents for Thule Camo Box 681
- Page 1 #681 Camo Box PARTS INCLUDED / PIÈCES INCLUSES / PIEZAS INCLUIDAS part pièce parte Bracket / Support de fixation / Abrazadera Plate / Plaque / Placa Quick-Mount Bracket / Support de montage rapide / Abrazadera de montaje rápido Sealant Decals / Autocollants d’étanchéité / Calcomanías selladoras Pads / Cales / Almohadillas Split Washer / Rondelle fendue / Arandela partida Carriage Bolt / Boulon de carrosserie / Perno de carruaje...
- Page 2 • If necessary, adjust the distance between the load bars to match the pattern of the ready-drilled holes in the roof box. The maximum possible distance which can be accommodated by the existing holes should be used. The minimum required bar spread is 23 ⁄...
- Page 3 Carriage Bolt Vis de carrosserie Perno de carruaje • Open box. • Ouvrez le coffre de toit. • Caja abierta. • Assemble hardware into box following diagrams, using selected holes. • Montez les fixations du coffre selon les schémas, en utilisant les trous choisis. •...
- Page 4 Tighten knobs evenly. Serrez les écrous de façon uniforme. Apriete las perillas uniformemente. • Make sure that loads are evenly distributed inside the roof box. Do not exceed the maximum permitted load of 110 lbs./50kg. for the box or the maximum permitted load for the roof as recommended by the vehicle manufacturer, as well of the maximum load of the load carrier.
- Page 5 OPEN OUVERT ABIERTO EXCHANGING LOCK CORES / CHANGEMENT DE SERRURE / CAMBIO DE CERRADURA • In order to change the existing lock core to a different lock core number follow, steps 1–9 below. • Pour changer la serrure existante par une serrure de numéro différent, suivez les étapes 1 à 9 ci-dessous. •...
- Page 6 Por favor revise las instrucciones de uso y la garantía cuidadosa- mente. El montaje e instalación de nuestro producto son respons- abilidad del usuario final y están fuera del control de Thule. Por lo tanto, Thule limita exclusivamente su garantía a la reparación o reemplazo de productos defectuosos de Thule hasta 5 años a par-...
