A
960 Bike Carrier / 960 Porte-vélos / 960 Parrilla de bicicletas
B
Top Strap Assembly / Courroie supérieure / ensamble de correa superior
C
Side Hook Assembly w/Buckle / Courroie latérale avec boucle / ensamble de gancho con hebilla
D
Bottom Strap (Narrow) w/Hook / Courroie inférieure avec boucle / correa inferior (delgada) con gancho
E
End Cap / Embout / cobertor
F
Protective Sleeve / Courroie d'attache / Manga Protectora
G
Tie Down Strap / Courroie d'attache / correa de atar
H
2 Wing Adjustment Knob / Écrou de réglage à 2 ailettes / Perilla de ajuste de 2 alas
960 FREEWAY™
3 BIKE CARRIER / PORTE-VÉLOS TRIPLE / PARRILLA DE 3 BICICLETAS

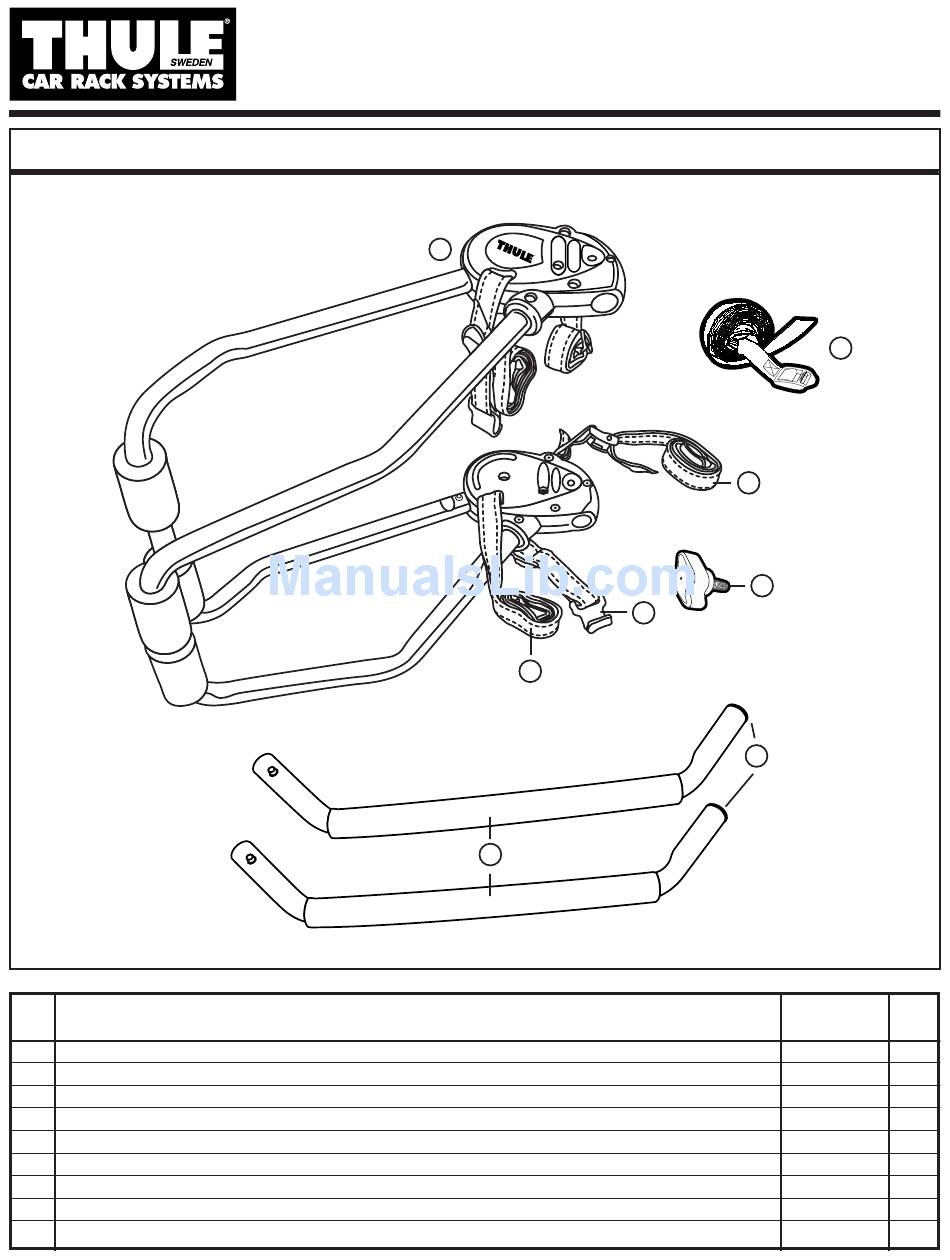

PARTS INCLUDED•PIÈCES INCLUSES•PIEZAS INCLUIDAS
description
description
descripcion
A
D
F
B
H
C
E
part number
numéro de pièce
numero de parte
–––––
753-2184
753-2877
753-0035-07
853-1477
853-2105-04
753-1492
753-3095
G
qty.
qté
cantidad
1
2
2
2
2
2
1
2
Advertisement
Related Manuals for Thule 3 Bike Carrier 960 Freeway
Summary of Contents for Thule 3 Bike Carrier 960 Freeway
- Page 1 960 FREEWAY™ 3 BIKE CARRIER / PORTE-VÉLOS TRIPLE / PARRILLA DE 3 BICICLETAS PARTS INCLUDED•PIÈCES INCLUSES•PIEZAS INCLUIDAS part pièce parte 960 Bike Carrier / 960 Porte-vélos / 960 Parrilla de bicicletas Top Strap Assembly / Courroie supérieure / ensamble de correa superior Side Hook Assembly w/Buckle / Courroie latérale avec boucle / ensamble de gancho con hebilla Bottom Strap (Narrow) w/Hook / Courroie inférieure avec boucle / correa inferior (delgada) con gancho End Cap / Embout / cobertor...
- Page 2 • Clean trunk/hatch and rear of car. • Nettoyez le couvercle du coffre ou du hayon et l’arrière de la voiture. • Limpie el portamaletas o puerta trasera y el parachoques de su vehículo. • Remove both 2 Wing Adjustment Knobs and adjust to correct fit numbers.
- Page 3 • With buttons squeezed in, firmly slide carrier arms into the hub. • Avec les boutons suffisamment enfoncés, faites coulisser fermement les bras de support dans le moyeu. • Con los botones apretados, firmemente meta los brazos del portabicicletas al centro de conección. •...
- Page 4 • Attach top strap according to the Fit Tips for your car. • Installez les sangles supérieures conformément aux Conceils de réglage s’appliquant à votre véhicule. • Sujete la correa superior de acuerdo a los puntos de encaje para su carro.
- Page 5 • Retighten all straps to ensure a snug fit to vehicle. • Resserrez fermement toutes les sangles pour assurer une fixation correcte sur le véhicule. • Apriete una vez más para asegurar un buen calce en su vehículo. • Roll up loose strap ends and secure. •...
- Page 6 • Squeeze buttons on hub to release arms. • Pressez les boutons dans le moyeu afin de libérer les bras. • Apriete los botones en el centro de conexión para librar los brazos. • Rotate arms down. • Tournez les bras du support vers le bas. •...
- Page 7 Veuillez lire attentivement les instructions et la garantie. L'utilisateur final est responsable du montage et de l'in- stallation qui ne sont pas du ressort de Thule. Cette dernière limite donc exclusivement sa garantie à la répa- ration ou au remplacement de ses produits défectueux pendant une période allant jusqu'à...
- Page 8 Make/Model Acura CL 2dr EL 4dr Integra 3dr Integra 4dr Legend 2dr Legend 4dr RL 4dr Vigor Audi 100 & 200 Series 80 & 90 Series A4 4dr A4 wagon A6 4dr A6 wagon Allroad Quattro 2dr RS 6 S4 4dr S4 wagon S6 4dr S6 wagon...
- Page 9 Make/Model S8 4dr 3 Series 2dr 3 Series 4dr 3 Series compact ti 3 Series wagon 5 Series 4dr 5 Series 4dr 5 Series wagon 6 series 7 Series 4dr Buick Century 4dr Century wagon LaCrosse LeSabre 4dr Park Avenue 4dr Ranier Reatta Regal 2dr...
- Page 10 Make/Model Escalade Escalade ESV Escalade EXT Pickup Fleetwood 4dr Seville, Seville STS Chevrolet Astro van Avalanche Aveo 4dr Aveo 5dr Beretta 2dr Blazer 2dr Blazer 4dr Camaro Caprice 4dr Caprice wagon Cavalier Cavalier 2dr Cavalier 4dr Cavalier wagon Cavalier Z24 Celebrity wagon Celebrity, Eurosport Cobalt 2dr...
- Page 11 Make/Model Prizm S-10 Blazer 2dr S-10 Blazer 4dr S-10 Pickup S-10 Pickup 2dr, std. cab Silverado Pickup Spectrum 2dr Spectrum 4dr Suburban Tahoe Tahoe 2dr Tahoe 4dr Tracker TrailBlazer 4dr TrailBlazer EXT 4dr Uplander Venture Chrysler 300M Cirrus Concorde Conquest Crossfire LeBaron 4dr LeBaron coupe...
- Page 12 Make/Model Colt 2dr Colt 4dr Colt hatchback Colt Vista wagon Dakota Pickup Daytona Durango Dynasty Intrepid Magnum Neon 2dr Neon 4dr Omni Ram Pickup Shadow 2dr Shadow 4dr Spirit Stratus 2dr Stratus 4dr Eagle Summit 2dr Summit 4dr Summit wagon Talon Ford Aerostar...
- Page 13 Make/Model Explorer Sport 2dr Explorer Sport Trac F-150 pickup F-150 Pickup 2dr, 4dr F-150 SuperCrew Pickup 4dr F-250/350 Pickup 2dr, 4dr Five Hundred Focus 3dr Focus 4dr Focus 5dr Focus wagon Freestar Freestyle Full Size Pickup Mustang Probe Ranger Pickup Taurus 4dr Taurus wagon Tempo 2dr...
- Page 14 Make/Model Envoy XUV Full Size Jimmy Full Size Pickup Jimmy 2dr Jimmy 4dr S-15 Jimmy S-15 Pickup Safari van Sierra Pickup Sonoma Pickup Suburban Yukon Yukon Yukon XL Honda Accord 2dr Accord 4dr Accord hatchback Accord wagon Civic 2dr Civic Si 3dr Civic 3dr Civic 4dr Civic wagon...
- Page 15 Make/Model Hummer H1/Hummer Hyundai Accent 3dr Accent 4dr Elantra Elantra 4dr Elantra wagon Excel 2dr Excel 4dr Excel 5dr Santa Fe Scoupe Sonata Tiburon Tuscon XG300/350 Infiniti FX35/45 G35 2dr G35 4dr M45 4dr QX4 w/o spare tire QX56 Isuzu Amigo Ascender Axiom...
- Page 16 Make/Model Pickup Truck space cap Pickup Truck std. cab Rodeo Stylus Trooper Jaguar S-Type S-Type VDP Vanden Plas XJ12 4dr XJ6 4dr XJS 2dr XK8 2dr X-Type 4dr X-Type wagon Jeep Cherokee CJ-7 Commanche Pickup Grand Cherokee Grand Wagoneer Liberty Wrangler Wrangler Unlimited Amanti...
- Page 17 Make/Model ES330 GS 300 GS 400 GS 430 GX470 IS 300 4dr IS 300 SportCross 5dr LS 400 LS 430 LX 450 LX 470 RX 300 RX 330 SC 300 SC 400 SC 430 Lincoln Aviator Continental Mark VII Mark VIII Navigator Town Car Mazda...
- Page 18 Make/Model Protégé 5 wagon RX-7 RX-8 Tribute Mercedes-Benz 190, C-Class 4dr 300 wagon 300 CD 300 CE 300 SDL 4dr 300 SE 420 SEL 560 SEC 560 SEL 560 SL 2dr C-Class 4dr C-Class coupe C-Class wagon E-Class wagon G-Class M-Class S-Class, 300-600 4dr only Mercury...
- Page 19 Make/Model Diamante 4dr Diamante wagon Eclipse Endeavor Expo/Expo LRV Galant Galant GTZ Lancer 4dr Lancer Sportback Mirage 2dr Mirage 4dr Montero Montero 2dr Montero Sport Outlander Pickup Precis 2dr Starion Nissan 200SX 240SX coupe 300ZX 350Z Altima Armada Frontier Pickup 2dr, 3dr, 4dr Maxima 4dr Maxima wagon Murano...
- Page 20 Make/Model Quest Sentra 2dr Sentra 4dr Stanza 4dr Titan Pick-up Xterra Oldsmobile 98 Regency Achieva 4dr Alero 2dr Alero 4dr Aurora Bravada Custom Cruiser wagon Cutlass Cutlass Ciera 4dr Cutlass Cruiser wagon Cutlass Supreme 2dr Cutlass Supreme 4dr Delta 88 Royale Intrigue 4dr Silhouette Silhouette...
- Page 21 Make/Model Aztec Bonneville Firebird Grand Am 2dr Grand Am 4dr Grand Prix 2dr Grand Prix 4dr LeMans Montana Montana SV6 Sunbird 2dr Sunbird 4dr Sunfire 2dr Sunfire 4dr Torrent Trans Sport Trans Sport Vibe Porsche Cayenne Saab 9-2x 9-3 3dr 9-3 4dr 9-3 convertible 9-3 5dr...
- Page 22 Make/Model SC 3dr SL 4dr SL 4dr SW wagon Scion Subaru Baja Forester Impreza 2dr Impreza 4dr Impreza/Impreza Outback wagon Impreza/Impreza WRX 4dr Impreza/Impreza WRX wagon Justy Legacy 4dr Legacy wagon Legacy/Legacy Outback wagon Loyale 2dr Loyale 4dr Loyale wagon Outback 4dr Outback wagon Outback Sport...
- Page 23 Make/Model 4 Runner 4 Runner 2dr 4 Runner 4dr Avalon Camry 2dr Camry 4dr Camry wagon Celica Celica 2dr Celica 3dr Celica coupe Corolla 4dr Corolla wagon Echo 2dr Echo 4dr Highlander Land Cruiser Matrix MR-2 MR2 Spyder Paseo Paseo convertible Pickup Pickup (small) Pickup Trucks (Standard)
- Page 24 Make/Model Tundra Pickup 2dr Tundra Pickup 4dr Volkswagen Beetle convertible Beetle hard top Cabriolet Corrado Golf Golf (Type III) Golf (Type IV) GTI 3dr Jetta 4dr Jetta wagon Jetta (Type III) 4dr Jetta (Type IV) 4dr Passat 4dr Passat wagon Phaeton Scirocco Touareg...
- Page 25 140 Lower arm of carrier will rest at bottom of trunk lip. 141 Vehicle not available at time of testing. Please call Thule at 1-800-238-2388 for update. Refer to RMS introduction page for carrier mounting guidelines. 142 Set lower clips/hooks on top edge of the metal bumper struts.
