Quick Installation Guide
TPE-1620WS (V2)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPE-1620WS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TPE-1620WS

Summary of Contents for TRENDnet TPE-1620WS

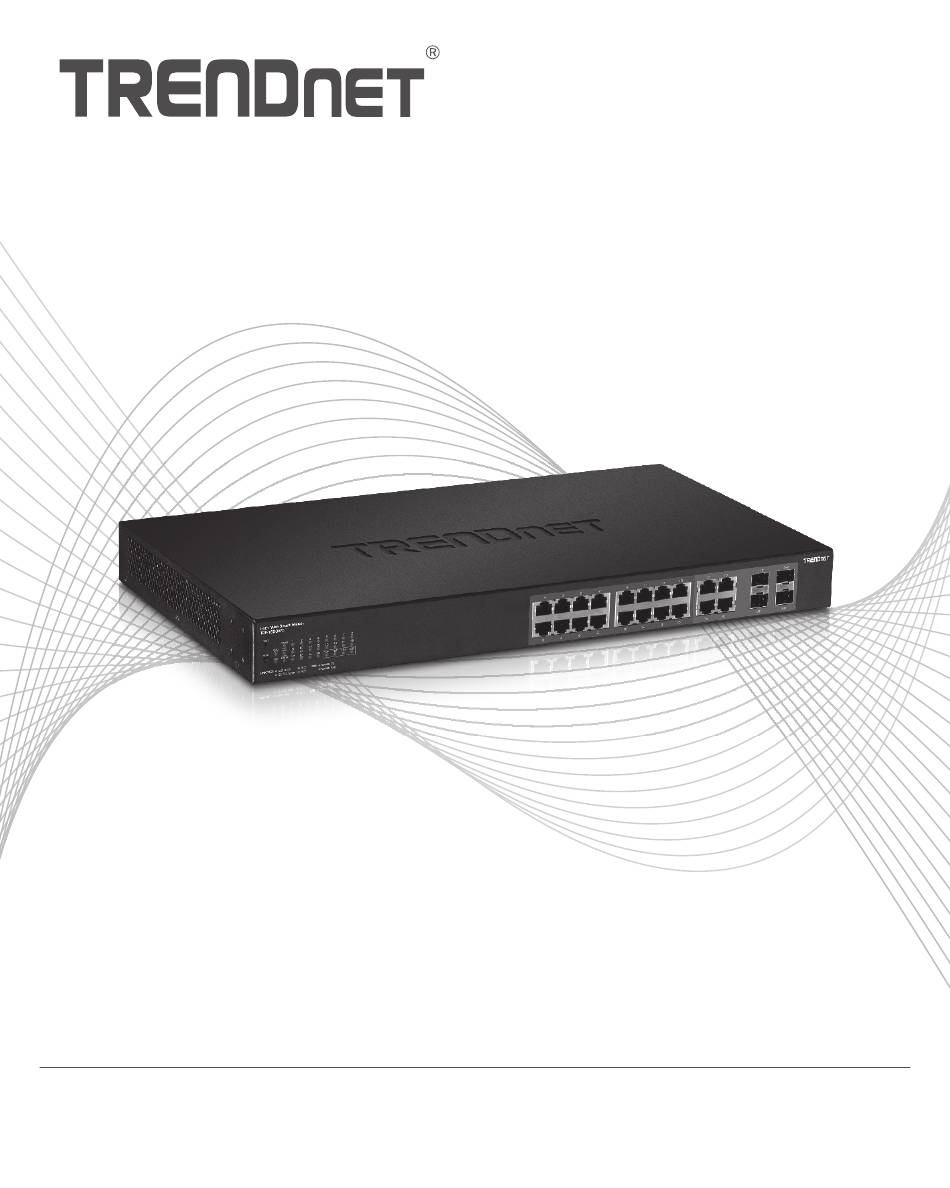

  • Page 1 Quick Installation Guide TPE-1620WS (V2)
  • Page 2 Table of Contents 1 English 1. Before You Start 2. Quick Reference 3. Hardware Installation and Configuration...

  • Page 3: Before You Start

    1. Before You Start Package Contents TPE-1620WS Ÿ Quick Installation Guide Ÿ CD-ROM (Utility and User's Guide) Ÿ Power cord (1.8m / 6 ft.) Ÿ Rack mount kit Ÿ Minimum Requirements Computer with an Ethernet port and web browser Ÿ...
  • Page 4 3. Hardware Installation and Configuration Power Non-PoE 3. Assign a Static IP address to your computer's network adapter in the subnet of 192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0. 4. Open your web browser, type the IP address of the switch in the address bar, and then press Enter.
  • Page 5 5. Enter the User name and Password, and then click Login. By default: User Name: admin Password: admin Note: User Name and Password are case sensitive. 6. Click System and then click IPv4 Setup. 7. Configure the switch to match the requirements of your network. Then click Apply. 8.
  • Page 6 . Follow the steps provided on the user's guide. 2. To download the latest version of the user's guide and the utility, please go to http://www.trendnet.com/support and select the TPE-1620WS from the products drop down list. For detailed information regarding the TPE-1620WS ’s configuration and advanced settings,...
  • Page 7 Product Name: 16-Port Gigabit Web Smart PoE+ Switch TRENDnet Trade Name: TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 EN 55032:2012+AC: 2013 (CISPR32:2012) (Class A)
  • Page 8 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: Toll free US/Canada: 1-866-845-3673 www.trendnet.com/register Regional phone numbers available at www.trendnet.com/support...
