TRENDnet TPE-1020WS User Manual

10-port gigabit web smart poe+ switch
Hide thumbs Also See for TPE-1020WS:
Table of Contents

Advertisement

Quick Links

Cover Page
TRENDnet User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPE-1020WS and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TPE-1020WS

Summary of Contents for TRENDnet TPE-1020WS

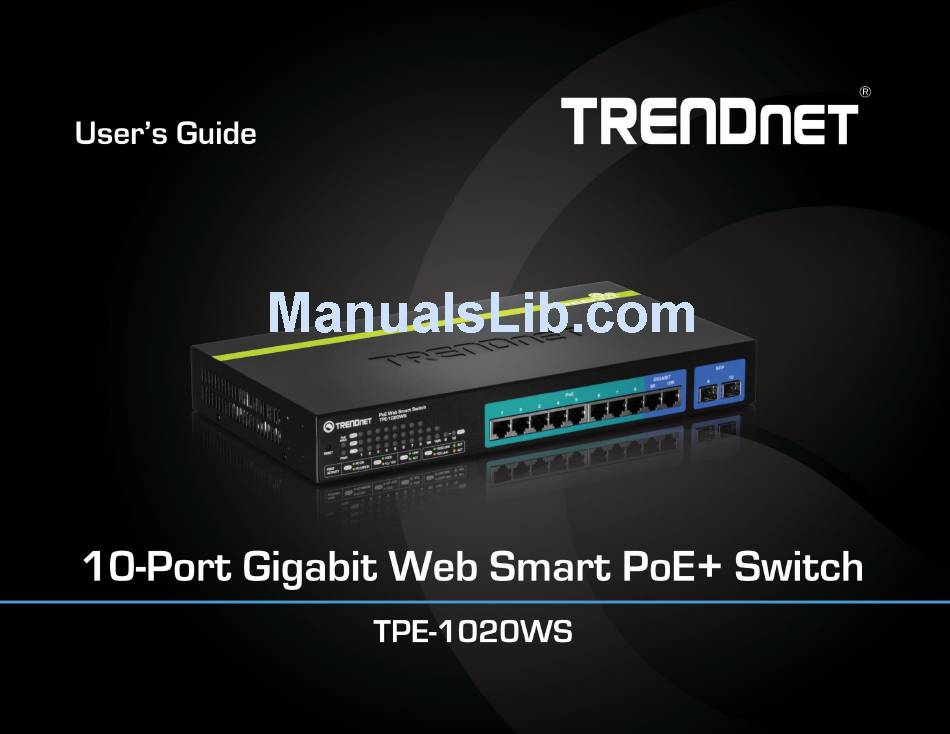

  • Page 1 Cover Page TRENDnet User’s Guide...

  • Page 2: Table Of Contents

    View and setup your switch logging ..............19 Configure VLAN Port Settings ................37 Configure the VLAN Forwarding Table Mode ............ 38 Physical Interface ......................20 View the switch VLAN dynamic forwarding table ..........38 © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 3 Reboot/Reset to factory defaults ................86 Create a Voice VLAN ..................64 Configure Voice VLAN OUI settings ..............65 Network Connectivity Test (Ping Tool) ................ 87 Security ........................66 Using the Web Smart Switch Management Utility ......88 © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 4 Launching the Utility ..................89 Discovery List ..................... 90 Monitor List ....................... 90 Device Setting ....................91 Main Menu Options ................... 92 Switch Management Page Structure ..........93 Technical Specifications..............94 Troubleshooting ................96 Appendix ..................97 © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 5: Product Overview

    Features Product Overview TRENDnet’s 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.

  • Page 6: Product Hardware Features

    Green : When the PoE powered device (PD) is connected and the when SFP slots (9-10) are in use.  port supplies power normally. SFP slots (9-10) – Supports optional 1000BASE-SX/LX mini-GBIC modules. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 7: Application Diagram

    When the mini-GBIC Amber LED lights on, the respective port is inserted mini-GBIC 100Mbps module. Amber blinking When the mini-GBIC Amber LED is blinking, the port is transmitting or receiving data on the Ethernet network. No link © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 8: Switch Installation

     When installing the Switch on a level surface, attach the rubber feet to the bottom of each device. The rubber feet cushion the hub and protect the hub Then, use screws provided with the equipment rack to mount each switch in the rack. case from scratching. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 9: Basic Installation

    8. Click Save Settings to Flash (menu). Note: User name and password are case sensitive. 9.Click Save Settings to Flash (button), then click OK. Note: Once the settings are saved, you can connect the switch to your network. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 10: Connect Additional Devices To Your Switch

    Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network settings (also called TCP/IP settings) are configured properly within the network subnet your switch is connected. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 11: Configure Your Switch

    Note: User Name and Password are case sensitive. Hardware Information  Version: Displays your switch hardware version.  DRAM Size: Displays your switch RAM memory size.  Flash Size: Displays your switch Flash memory size. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 12  Subnet Mask – Displays the current IPv4 subnet mask assigned to your switch. DHCP client.  Default Gateway – Displays the current gateway address assigned to your switch.  IPv6 DHCP Client Mode: Displays if your switch IPv6 address setting is set to DHCP client. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 13: System

     System Contact - Specifies the name of the network administrator responsible for managing the switch. This contact name is optional and may contain up to 30 characters. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 14: Set Your Ipv4 Settings

     System IP Mode: Click the drop-down list and select Static to manually specify your IP address settings or DHCP to allow your switch to obtain IP address settings automatically from a DHCP server on your network. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 15: Set Your Ipv6 Settings

    IPv6 Dynamic Gateway: To configure the switch to automatically obtain its IP this entry replaces the address in the configuration. configuration from a DHCP server on your network.  Link Local Address/Prefix length: Enter the Link Local Address/Prefix Length. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 16: Add Ipv6 Neighbors

    3. Review the settings. When you have completed making changes, click Apply to save the settings.  Neighbor IPv6 Address: Specifies the neighbor IPv6 address. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 17: Set Your Dns Server Settings

    NV-RAM to ensure that if the switch is rebooted or power list of specific IP addresses. cycled, the configuration changes will still be applied. 1. Log into your switch management page (see “Access your switch management page” on page 7). © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 18: Restrict Access To Switch Management Page

    Delete All to delete all entries in the table. When you have completed entering the IPv4 and IPv6 address entries, click the IP Restriction Status drop-down list at the top and select Enabled, then click Apply. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 19: Change Administrator Password And Add Accounts

    Note: The password consists of up to 12 alphanumeric characters. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 20: Enable Or Disable Snmp And Modify Idle Timeout Settings

    Disabled - When you enable this parameter, the SNMP agent is inactive.  Web Server Status – Displays the current SNMP status. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 21: Set The Switch Date And Time

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 22: Enable Https/Ssl (Secure Socket Layer) Management Access

    Disabled – Disabled HTTPS/SSL management access and enabled HTTP unsecured mode. (Default setting). If enabling SSL management access, you will need to access the switch management page using HTTPS instead of HTTP. (e.g. https://192.168.10.200) © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 23: Enable Dhcp Auto Configuration

    Facility - Click the drop-down list and which facility to store the logging. (Options: local0 – local7) Note: You can define the facility to store logging on your external syslog server. This helps to ensure you have separate logging sections for different devices. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 24: Configure Your Switch Ports And View Port Status

    Up -This parameter indicates a valid link exists between the port and switch is rebooted or power cycled, the configuration changes will still be applied. the end node. Down -This parameter indicates the port and the end node have not established a valid link. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 25 1000Mbps operation in half-duplex mode. Enabled - This parameter indicates that the port is permitted to use 100/Half -This parameter indicates the port is configured for 100Mbps flow control. operation in half-duplex mode. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 26: Spanning Tree (Stp, Rstp, Mstp)

    STP/RSTP domains on the boundary ports. Its range is 6 - 40 seconds Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 27: Configure Spanning Tree Protocol Port Settings

    Writing a value of '0' assigns the automatically calculated default Path Cost value to the port. If the default Path Cost is being used, this object returns '0' when read. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 28 The default setting for this parameter is Auto. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 29: Configure Spanning Tree Protocol Mst Settings (Mstp)

    VID List (1 - 4094): Displays the VID List. Click Add to add into MST Table below.  Priority: Enter the new priority in the Priority field. The user may set a priority value between 0-61440. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 30: View Your Spanning Tree Protocol Instance Information (Mstp)

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 31: Trunk Config (Link Aggregation)

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 32: View Your Trunk Group Status Information

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 33: Mirroring

    Check the port to monitor or copy inormation from. (Source) To copy data received on a specific port, check the port number(s) under the Ingress Port section or you could click All to copy data received on all ports. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 34: Loopback Detection

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 35: Static Unicast

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the Click Apply to add the Static Unicast entry to the list. switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 36: Static Multicast

    Group Member – Check the port(s) where the MAC address will reside. Note: You can click All to select all ports. Click Apply to add the Static Multicast Group entry to the list. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 37: Igmp Snooping

    In the VLAN ID router port list, you can configure your Static and Dynamic Router ports. IGMP Snooping Router Port configured manually is a Static Router Port, and a Dynamic Router Port is dynamically configured by the Switch when a query control message is received. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 38: Bandwidth Control

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 39: Set Ingress Rate Limiting

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 40: Vlan

    In the sections Static Tagged, Static Untagged, and Not Member, you can add the type of VLAN ports to add to the new VLAN (Tagged or Untagged) and assign ports that are not members (Forbidden) of the new VLAN. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 41: Configure Vlan Port Settings

    Note: Modifying settings in the row marked All, will apply the settings to all switch is rebooted or power cycled, the configuration changes will still be applied. ports. 4. Click Save Settings to Flash (menu). 5. Click Save Settings to Flash (button), then click OK. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 42: Configure The Vlan Forwarding Table Mode

    3. Click the learning mode drop-down list to select the forwarding table mode and click Apply to save settings. Note: The default mode is IVL. 4. Click Save Settings to Flash (menu). 5. Click Save Settings to Flash (button), then click OK. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 43: Create A Private Vlan

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the  switch is rebooted or power cycled, the configuration changes will still be applied. Set the Source Port to one of the following choices from the pull-down menu: All, 01 – 10. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 44: View The Current Vlan Database

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 45: Set Gvrp Port Settings

    Restricted VLAN Registration field. In other words, each port is set individually. Enable - The Restricted VLAN Registration is active for the port row selected. Disable - The Restricted VLAN Registration is de-active for the port row selected. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 46: Set Gvrp Time Settings

    Note: To ensure compatibility between network devices, you need to configure the same values for the GARP Join Timer, GARP Leave Timer, and GARP Leave All Timer on all participating GVRP devices in your network. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 47: Qos (Quality Of Service)

    For each Traffic Class whose queue you want to change, click on the CoS Table (Low, Medium, High, or Highest) radio button that applies to your configuration.  After you have completed this mapping process, select Enabled in the QoS Status field. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 48: Set Port Priority

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 49: Set The Scheduling Algorithm

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 50: Configure The Ipv6 Traffic Class Priority Settings

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 51: Snmp

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 52: Configure The Snmp Group Access Table

    Auth-Protocol has a password assigned and the Priv- Protocol has been selected as none on the SNMP User/Group page. AuthPriv: When the Auth-Protocol or Priv-Protocol have been enabled, choose this selection.  Click the Add button. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 53: Configure The Snmp User/Group Table

    - Specifies no encryption is applied to SNMP data. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 54: Configure The Snmp Community Table

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 55: Configure The Snmp Trap Management

    SNMP Community Table page. If you enter a Community Name that has not been pre-defined, the Trap Host entry is displayed, but agent/manager communication fails.  Click Add. The new host is added to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 56: Access Control Config

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 57 DSCP - The DSCP (Differentiated Services Code Point) value in the IP header ranging from 0 - 63. Source Layer 4 Port - Indicates the source layer 4 port ranging from 1 - 65535. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 58 Replaced-CoS or Replaced-DSCP to be processed by the switch. Note: You must enter a selection for Deny/Permit field even if the Profile Action ID that you have entered ignores both the Replaced- DSCP and Replaced-CoS fields. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 59 5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 60: Configure Rate Control

    You can also click Delete All to delete all of the entries in the table. If the entries span multiple pages, you can navigate page number in the Page field and click Go or you can click First, Previous, Next, and Last Page to navigate the pages. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 61: View Your Policy Database

    6. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 62: Configure Parameters For Rmon Ethernet Statistics

    Owner: This parameter is used to identify the person who created an entry. It is primarily intended for switches that are managed by more than one person, and is an optional field. Click Add to add the entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 63: Configure Parameters For Rmon History Control Settings

     Owner: This parameter is used to identify the person who created an entry. It is primarily intended for switches that are managed by more than one person, and is an optional field. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 64: Configure Parameters For Rmon Alarms

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 65 Note: This step saves all configuration changes to the NV-RAM to ensure that if the primarily intended for switches that are managed by morethan one person, switch is rebooted or power cycled, the configuration changes will still be applied. and is an optional field. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 66: Configure Parameters For Rmon Events

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 67: Voice Vlan

    If the IP phone(s) that you are installing cannot be configured with a VLAN ID, then the same, then no other IP phone MAC addresses need to be entered into the configuration. switch ports should be configured as Static tagged ports within the voice VLAN. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 68: Create A Voice Vlan

    VLAN IDs that have been defined. Aging Time - This parameter indicates the amount of time, in hours, after the last IP phone's OUI was received on a port, after which this © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 69: Configure Voice Vlan Oui Settings

    User Defined OUI - Description field. This parameter can be up to 20 characters Note: This step saves all configuration changes to the NV-RAM to ensure that if the in length. switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 70: Configure Port Access Control

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the 2. Click on Security and click on Port Access Control. switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 71: Create Dial-In Users (Local Authentication Method)

    If you enter 0, this field will be ignored. Click Add to add the entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 72: Add Radius Servers (Radius Authentication Method)

    1813.  Shared Secret – Enter the default authentication and encryption key for RADIUS communication between the device and the RADIUS server. Click Add to add the entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 73: Add Tacacs+ Servers (Tacacs+ Authentication Method)

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the TACACS+ communication between the device and the TACACS+ server. switch is rebooted or power cycled, the configuration changes will still be applied. Click Add to add the entry to the table. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 74: Destination Mac Filter

    Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. 3. Enter the MAC Address to add to the destination filter table. Click Add. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 75: Denial Of Service (Dos)

    6. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 76: Poe Configuration

    Low level receive power only when all 15.4W 6.49W to 12.95W the ports assigned to the Critical and High 34.2W 25.5W to 38.9W levels are already receiving power. This level is the default setting. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 77: Configure Poe Settings

    Voltage(V) - Indicates the Voltage in volts as measured at the port when the port is supplying power to the PD.  Current(mA) - Indicates the Current in milliamps that the port is supplyng to the PD. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 78: Dhcp Snooping

    Enable - Allows an Option 82 packet to be passed through the switch without being altered. Disable - Blocks an Option 82 packet from passing through the switch.  Verify MAC Address - Select one of the following choices from the pull-down menu: © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 79: Enable Dhcp Snooping

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 80: Set Trusted Interfaces

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 81 Static- The host IP Address is statically assigned. See “Static IP Addresses” on page 300 for more information.  Lease Time: This parameter is the time that IP address assignment by the DHCP server is valid. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 82: Lldp (Link-Layer Discovery Protocol)

    The range is from 2 to 10. Message TX Interval: Sets the transmit interval, which is the interval between regular transmissions of LLDP advertisements. The range is from 1 to 10 seconds. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 83 5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 84: View Lldp Neighbor Information

    LLDP information is received from them.  2. Click on Statistic and click on Traffic Information. Port: This parameter specifies the TPE-1020WS local port number where the LLDP information was received.  Chassis ID Subtype: This parameter describes the Chassis ID subtype of the 3.

  • Page 85: View Error Information Statistics

    Fragments: Number of fragments (packets with less than 64 octets, excluding framing bits, but including FCS octets) received.  Collisions: Number of collisions received. If Jumbo Frames are enabled, the threshold of Jabber Frames is raised to the maximum size of Jumbo Frames. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 86: Switch Maintenance

    TRENDnet may periodically release firmware upgrades that may add features or fix 2. Click on Tools, click on Firmware Upgrade, and click via HTTP. problems associated with your TRENDnet switch model and version. To check if there is a firmware upgrade available for your device, please check your TRENDnet model and 3.

  • Page 87: Firmware Upgrade Via Tftp Settings

    4. A separate file navigation window should open. 5. Select the switch configuration file to restore and click Restore. (Default Filename: config.bin). If prompted, click Yes or OK. 6. Wait for the switch to restore settings. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 88: Backup/Restore Via Tftp Settings

    TFTP Server IP: Enter the IP address of your TFTP server. config.bin)  Config File Name: Enter the configuration file name for the backup. (Default: config.bin) 5. Wait for the switch to restore settings. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 89: Cable Diagnostics Test

    2. Click on Tools and click on Cable Diagnostic. 3. Click on the Port drop-down list to select which port to run the cable diagnostic and click Test Now to run the test. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 90: Enable Ieee 802.3Az Power Saving Mode

    5. Click Save Settings to Flash (button), then click OK. Note: This step saves all configuration changes to the NV-RAM to ensure that if the switch is rebooted or power cycled, the configuration changes will still be applied. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 91: Network Connectivity Test (Ping Tool)

    Number of Ping Requests - Specifies the number of ping requests you want the switch to perform. The switch factory default settings are below. Administrator User Name admin Administrator Password admin Switch IP Address 192.168.10.200 Switch Subnet Mask 255.255.255.0 © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 92: Using The Web Smart Switch Management Utility

    Using the Web Smart Switch Management Utility The Web Smart Switch Management Utility allows you to do the following:  You can easily discover all TRENDnet web smart switches on your network using the discover feature.  You can modify the IP address settings, change the admin password, and upgrade firmware for multiple switches.

  • Page 93: Using The Utility

    7. In the Completion window, click Finish. You can also launch the utility from the Start Menu programs. Start > Programs (or All Programs) > TRENDnet Management Utility > TRENDnet Management Utility.exe © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 94: Discovery List

    Add Item: To add a device to the Monitor List manually, enter the IP Address of  Group Interval: the device that you want to monitor.  Delete Item: To delete the device in the Monitor List. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 95: Device Setting

    “Set” to process the data change immediately. The default password of TRENDnet Web Smart Switches is “admin”. Access Web: Double click the device in the Monitor List or select a device in the Monitor List and press this “Web Access”...

  • Page 96: Main Menu Options

    Choose 15 secs, 30 secs, 1 min, 2 min and 5 min to select the time of monitoring.  Group Interval: 120~1225 In the “Help TAB”, there is About function, it will show out the version of the Web Management Utility. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 97: Switch Management Page Structure

     GVRP RADIUS  Ping   TACACS+ Save Settings to Flash  SNMP Destination MAC Filter  Denial of Service  Engine ID  PoE Configuration View Table  Group Access Table © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 98: Technical Specifications

     Jumbo Frames: 10 KB 802.1p Class of Service (CoS)   HOL Blocking Prevention DSCP (Differentiated Services Code Point)   Forwarding rates: 14.88 Mpps (64-byte packet size) Bandwidth Control per port © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 99 Weight  Ether Type (IPv4 only)  1.9 kg (4.1 lbs.)  IP Protocol 0-255  TCP/UDP Port 1-65535 Certifications  802.1p   DSCP (IPv4 only)   IPv6 Address (IPv6 only) © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 100: Troubleshooting

    Then click Use the following IP address, and make sure to assign your network adapter an IP address in the subnet of 192.168.10.x. Click OK Note: If you are experiencing difficulties, please contact your computer or operating system manufacturer for assistance. © Copyright 2015 TRENDnet. All Rights Reserved.

  • Page 101: Appendix

    From the Location drop-down list, select Automatic. 2. In the Network Preference window, next to "Show:", select Network Status. You'll see d. Select and view your Ethernet connection. your network status and your IP address settings displayed. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 102 1. Apple Menu > System Preferences > Network 2. Select Ethernet from the list on the left. 3. Click the Advanced button. 3. On the Ethernet tab, the Ethernet ID is your MAC Address. © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 103 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA © Copyright 2015 TRENDnet. All Rights Reserved.
  • Page 104 TPE-1020WS TRENDnet User’s Guide nuostatas. TRENDnet tímto prohlašuje, že tento TPE-1020WS je ve shodě se Česky [Czech] základními požadavky a dalšími příslušnými ustanoveními směrnice Hierbij verklaart TRENDnet dat het toestel TPE-1020WS in Nederlands 2004/108/ES a 2009/95/ES. overeenstemming is met de essentiële eisen en de andere relevante [Dutch] bepalingen van richtlijn 2004/108/EG en 2006/95/EG.
  • Page 105 Upon receiving the RMA unit, TRENDnet may repair the unit using refurbished parts. In will be issued. An RMA number is required in order to initiate warranty service support the event that the RMA unit needs to be replaced, TRENDnet may replace it with a refurbished product of the same or comparable model.
  • Page 106 OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND evidence of the original purchaser's date of purchase. Replacement products may be OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY refurbished or contain refurbished materials. If TRENDnet, by its sole determination, is...

Table of Contents
