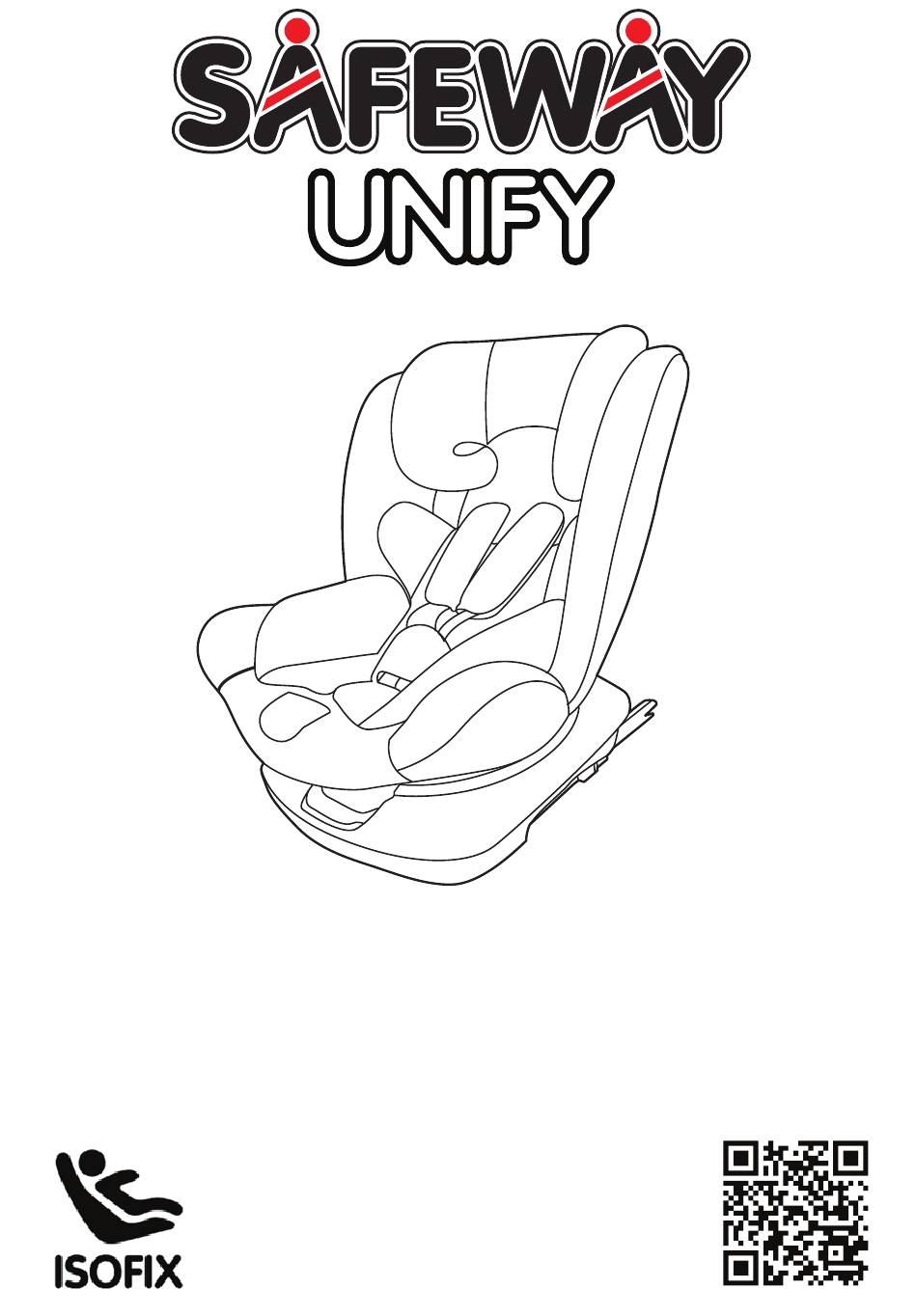

Created with Passion, Designed for Safety
INSTALLATION INSTRUCTIONS
GROUPS 0 / 1 / 2 / 3 (Birth - 36kg)
Rearward facing Birth to 18kg (BELT / ISOFIX / TT)
Forward facing 9 to 18kg (BELT / FIX)
Booster seat 15 to 36kg (BELT / FIX)
ISOFIX Class Size:
Group 0/1 - "D"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unify and is the answer not in the manual?

Questions and answers

Mariane
March 4, 2025

How do I arrange the strap at the back once I have washed the cover

0
1 comments:
Mr. Anderson
March 4, 2025

To arrange the strap at the back of the Safeway Unify after washing the cover:

1. Locate the two loops on the strap with the hook.
2. Choose the appropriate loop based on the position of the Top Tether Anchorage Point.
3. Ensure the Top Tether Straps are not twisted.
4. Lift the headrest upwards.
5. Twist the metal brackets and remove both straps.
6. Thread the straps through the backrest from the shell.
7. Re-thread the straps through the correct loop, ensuring the buckle faces outwards.
8. Thread both straps and buckles back through the backrest.
9. Ensure the hook opening faces downwards.

This will correctly secure the strap after reassembling the cover.

This answer is automatically generated

0

Related Manuals for Safeway Unify

Summary of Contents for Safeway Unify

  • Page 1 Created with Passion, Designed for Safety INSTALLATION INSTRUCTIONS GROUPS 0 / 1 / 2 / 3 (Birth - 36kg) Rearward facing Birth to 18kg (BELT / ISOFIX / TT) Forward facing 9 to 18kg (BELT / FIX) Booster seat 15 to 36kg (BELT / FIX) ISOFIX Class Size: Group 0/1 - “D”...

  • Page 2: Table Of Contents

    Contents Introduction Important Notices 3 - 4 Restraint Features Use of the Child Restraint in the Vehicle Adjusting the Height of the Headrest / Harness Adjusting the Recline Position Using the ISOFIX System Using the Top Tether System Using the Buckle & Harness System Removing the 5-Point Harness for Use as Group 2/3 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Method 1 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Method 2...

  • Page 3: Important Notices

    Important Notices • WARNING: Read this instruction manual carefully. Study the illustrations in this instruction manual before use, and, when installing the car seat. The Child Safety Seat is a safety product and is only safe when used according to the instructions.

  • Page 4: Introduction

    Introduction Dear parents Congratulations on the purchase of your Child Safety Seat. Safety, comfort and user-friendliness have at all times played an important role in the development of the Child Safety Seats. This product meets the most stringent safety regulations and has passed the most stringent compulsary safety testing required by law.
  • Page 5 Important Notices • It is recommended that child safety seats not be used longer than 10 years after the date of purchase. The product properties may deteriorate due to ageing of the plastic and/or sunlight, without this being visibly apparent. •...

  • Page 6: Restraint Features

    Restraint Features Headrest Head Pillow Seat Belt Guide Shoulder Pads Buckle Comfort Pad Crotch Pad Harness Adjuster Buckle Rotate Handle Recline adjuster Harness Adjuster Strap Headrest Handle Belt Guide for Rearward Facing ISOFIX Sleeve Bracket Top-Tether Top-Tether Buckle Metal Yoke Vehicle Safety Belt Routing for Group 1 Top-Tether Hook...

  • Page 7: Use Of The Child Restraint In The Vehicle

    Use of the Child Restraint in the Vehicle IMPORTANT: The child seat MUST be installed using a 3-Point Seat Belt. A 2-Point seat belt may not be used. Please observe the regulations applicable to your particular country. The safety belt must be approved to ECE R 16 or a comparable standard . You can use your child car seat as follows: Use in vehicle: Rearward facing child seat...

  • Page 8: Adjusting The Height Of The Headrest / Harness

    Adjusting the Height of the Headrest / Harness Adjust the height of the Headrest by pulling the Headrest Handle then move the headrest up or down to suit your childs’ height. The harness straps move while adjusting the headrest. Adjust the Shoulder Straps to the correct height for your child. Rearward Facing Install: The Shoulder Straps must be inline or just below your childs’...

  • Page 9: Using The Isofix System

    Using the ISOFIX System CLICK ISOFIX Optional: Locate the Press the ISOFIX Connect the ISOFIX ISOFIX Anchorage points Connector’s Release Connectors to the and place the ISOFIX Button and slide the anchorage points. Sleeve Brackets over the connectors outwards Ensure that they two points.

  • Page 10: Using The Top Tether System

    Using the Top Tether System There are 2 loops on the strap with the hook. Choose which loop to use depending on where your Top Tether Achorage Point is located. The Top Tether System is only used when the child seat is used in a Rearward Facing Position.

  • Page 11: Using The Buckle & Harness System

    Using the Buckle & Harness System Press the Red Buckle To loosen the harness Place the harness Button to unlock the straps, press the Harness straps to the side of buckle then seperate Adjuster Buckle then pull the seat then place the two tongues.

  • Page 12: Removing The 5-Point Harness For Use As Group 2/3

    Removing the 5-Point Harness for Use as Group 2/3 Press the Red Buckle Loosen the harness straps At the back of the seat, Button to unlock the by pressing the Harness remove the shoulder buckle then seperate Adjuster Buckle then pull straps from the metal the two tongues.
  • Page 13 Removing the 5-Point Harness for Use as Group 2/3 Reconnect the Place the straps against Place the cover back shoulder straps to the the backrest of the child over the shell. metal yoke. seat. Rotating the Child Seat The child seat can rotate 360 degrees. To rotate the child seat, pull the rotate handle forwards, then swivel the seat around to the...
  • Page 14 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Approximately 4 years METHOD 1 - ISOFIX & TOP TETHER Top Tether Anchorage Points CLICK...
  • Page 15 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Approximately 4 years METHOD 1 - ISOFIX & TOP TETHER Rearward Facing Rotate the child seat to the Rearward Locate the Top Tether anchorage point Facing position (See page 12). in your vehicle and connect the Top Recline the child seat to the most Tether Hook to it (See page 9).
  • Page 16 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Approximately 4 years METHOD 2 - SEAT BELT INSTALL Shoulder belt Lap belt Rotate the child seat to Recline the child seat to Place the child seat in a the Rearward Facing the most reclined rearward facing position position (See page 12).
  • Page 17 Install Rearward Facing - Group 0/1 (Birth to 18kg) - Approximately 4 years METHOD 2 - SEAT BELT INSTALL Pull the vehicle seat belt Thread the diagonal belt Unfasten the harness out as far as possible. through the Belt Guide. buckle and remove the Comfort Pad.
  • Page 18 Install Forward Facing - Group 1 (9 to 18kg) - 1 to approximately 4 years METHOD 1 - ISOFIX & SEAT BELT INSTALL Shoulder belt CLICK Lap belt...
  • Page 19 Install Forward Facing - Group 1 (9 to 18kg) - 1 to approximately 4 years METHOD 1 - ISOFIX & SEAT BELT INSTALL Forward Facing click Install the ISOFIX Thread the vehicle seat Clip the vehicle seat belt System (See page 8). belt through the back of tongue into the buckle.
  • Page 20 Install Forward Facing - Group 1 (9 to 18kg) - 1 to approximately 4 years METHOD 2 - SEAT BELT INSTALL Shoulder belt Lap belt...
  • Page 21 Install Forward Facing - Group 1 (9 to 18kg) - 1 to approximately 4 years METHOD 2 - SEAT BELT INSTALL The Child Seat can be used Forward Facing in Positions 1, 2 & 3 (See Page 7). DO NOT use position 4 for Forward Facing.
  • Page 22 Install Forward Facing - Group 2/3 (15 to 36kg) - 3 to approximately 10 years METHOD 1 - FIX & SEAT BELT INSTALL Shoulder belt Lap belt CLICK...
  • Page 23 Install Forward Facing - Group 2/3 (15 to 36kg) - 3 to approximately 10 years METHOD 1 - FIX & SEAT BELT INSTALL Position 1 ISOFIX ISOFIX Recline the child seat to position 1 Install the ISOFIX system (See page 8). (See page 7).
  • Page 24 Install Forward Facing - Group 2/3 (15 to 36kg) - 3 to approximately 10 years METHOD 2 - SEAT BELT INSTALL Shoulder belt Lap belt...
  • Page 25 Install Forward Facing - Group 2/3 (15 to 36kg) - 3 to approximately 10 years METHOD 2 - SEAT BELT INSTALL Position 1 Recline the child seat to position 1 Place the child seat on the vehicle (See page 7). seat.

  • Page 26: Removing The Cover / Replacing The Cover

    Removing the Cover / Replacing the Cover See page 11 - Removing the 5-Point Harness for Use as Group 2/3 Remove the Head Rest Cover. Remove the Cover. Replace the Cover. Thread the Shoulder Pad Straps through the harness slots. Reconnect the straps to the buckle.

  • Page 27: Washing Instructions / Care For The Harness Buckle

    Washing Instructions The cover and belt pads are easily removable and can be washed by hand at a maximum temperature of 30 C. Do not use a dryer. The child seat may be cleaned with lukewarm water and a gentle soap. Do not use abrasive detergents.

  • Page 28: Notices

    Notices 1. This is a “Universal” child restraint system. It is approved to Regulation No.44,04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “Universal”...

  • Page 29: Warranty

    Warranty • The warranty period starts from the date of purchase and is valid for a period of 12 months. • The warranty applies to material and manufacturing defects only. • The date of purchase can only be determined with an original sales receipt. •...

  • Page 30: Installation Methods

    Installation Methods Group Weight Recline Position Installation Approx. Age Rearward Facing Birth to Birth to 4 Years 0 / 1 Top Tether (ISOFIX & 18kg Anchorage Points Top Tether) Recline Position 4 Forward Facing 1 Year to 9 to 18kg (ISOFIX &...
  • Page 31 Installation Methods Group Weight Recline Position Installation Approx. Age Rearward Birth to Birth to 4 Years 0 / 1 Facing 18kg (Seat Belt) Recline Position 4 Forward 1 Year to 9 to 18kg Facing 4 Years (Seat Belt) Recline Position 1,2 or 3 Forward 3 Years to 15 to 36kg...
