ELECTRICS

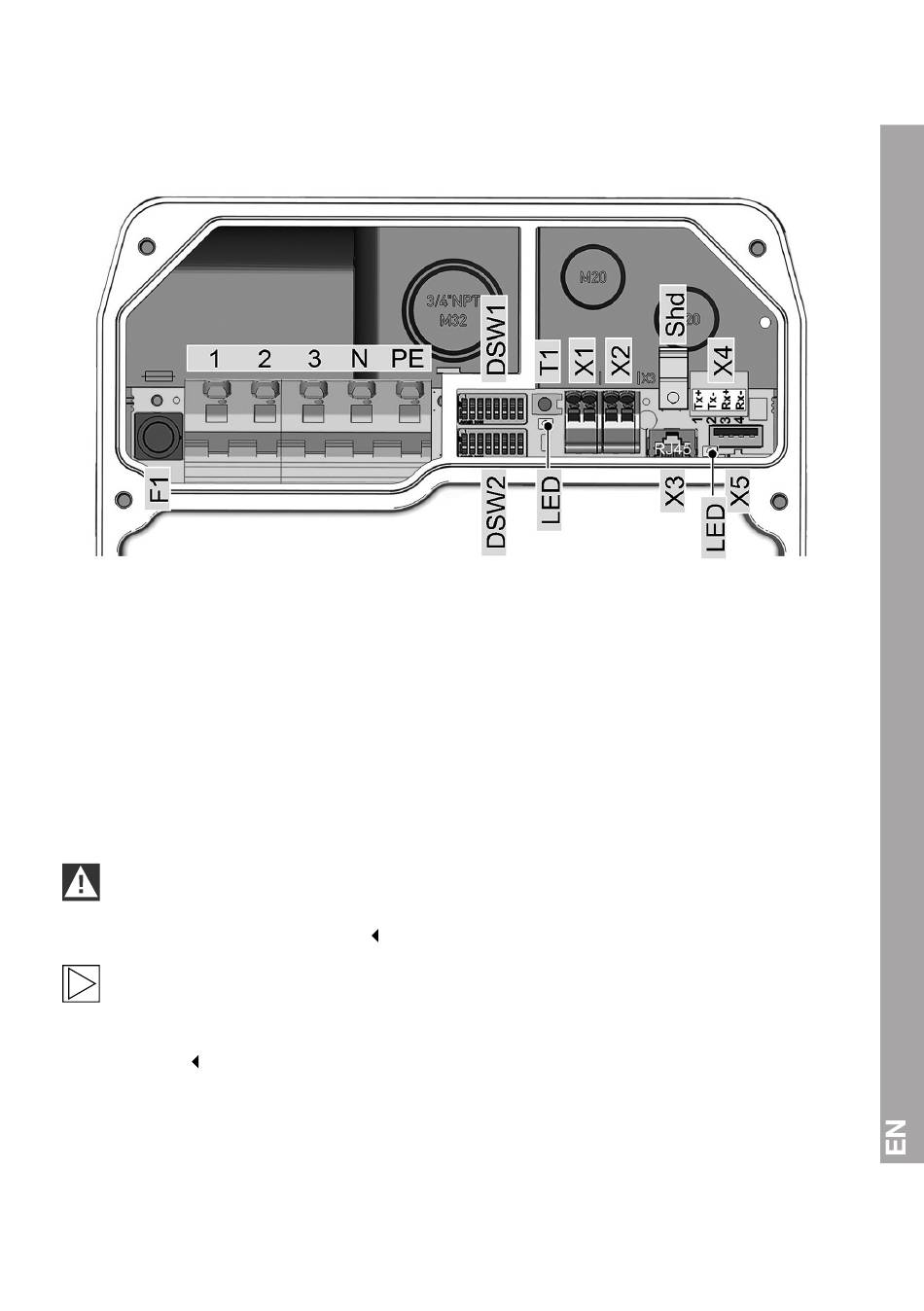

Connection diagram with open termination panel cover

1 Mains connection outer conductor 1
2 Mains connection outer conductor 2
3 Mains connection outer conductor 3
N Mains connection, N conductor
PE mains connection, PE conductor
F1 Fuse holder
DSW1 DIP switch for configuration
DSW2 DIP switch for addressing
IMPORTANT
The X3 diagnostic connection is suitable only for error analysis and must not be used to
connect the device to a network.
Note
The connection overview shows all the options of the device, but the legend only lists the
available options. It is possible that your version of the device will not have all the connections
available.
T1 Service button
LED Status LED, internal
X1 Enable input
X2 RS485 connector
X3 Diagnostic connector, RJ45
X4 Ethernet1 connector, LSA+ terminals
X5 USB connector
Shd Shield connection for Ethernet1
connection terminals
