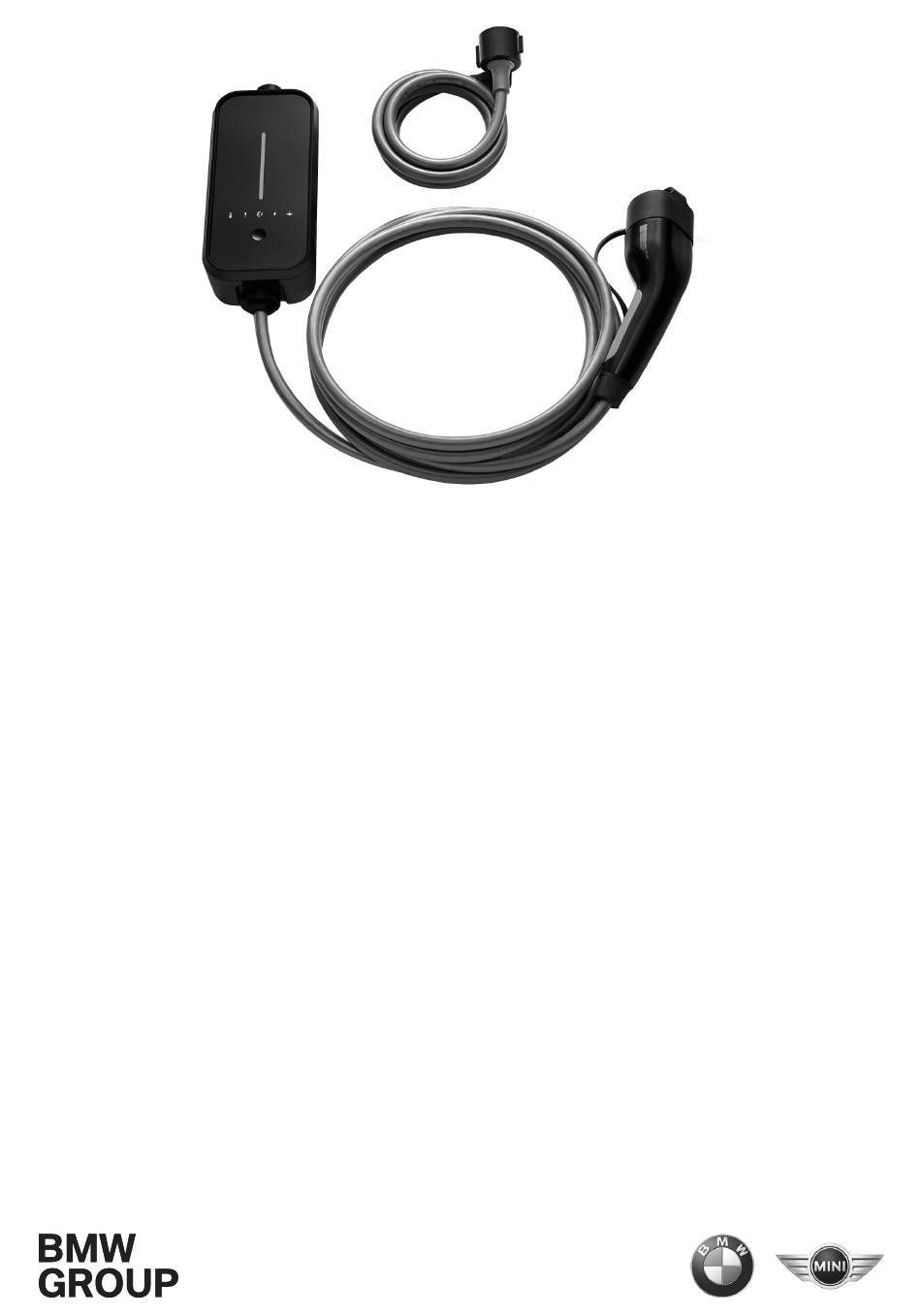

- Page 1 Flexible Fast Charger (Mode 2 Charging Cable) Flexible Fast Charger (Mode 2 Charging Cable)
- Page 3 Flexible Fast Charger (Mode 2 Charging Cable) Instructions for use Contents Information Operating Installation (Optional accessory) Troubleshooting Environmental specifications Disposal Certification/Compliance © 2020 BMW AG, Munich/Deutschland Reprinting, even in part, requires the express written permission of BMW AG, Munich. Subject to printing errors, mistakes and changes.
-
Page 4: Symbols Used In This Document
Read the information carefully and look at the device to familiarise yourself with it before you attempt to install, operate or service it. Use only for charging BMW, MINI or Rolls-Royce vehicles. RISK OF FIRE OR ELECTRIC SHOCK CAUTION: Always ensure that the electrical power connection complies with the national statutory regulations. - Page 5 Safety Guide for safe placement. Must disconnect the mains adapter from domestic outlet while assembling. Never use defective, worn or dirty mains adapter cable or vehicle connector. Pull Flexible Fast Charger out of the domestic outlet by the adapter instead of cable .
-
Page 6: Intended Use
Flexible Fast Charger The illustrations and explanations contained in this manual refer to a typical version of device. Your device version may differ from this. This manual is aimed at the target groups, e.g. End customers (users of Flexible Fast Charger). -
Page 7: Warranty
Warranty Service can provide more information in terms of the warranty. However, the following cases are not covered: Defects or damage caused by installation work not as specified in the installation instructions and the product not being used as specified in the manual. Costs and damage caused by repair work not carried out by a specialist electrician authorized by sales outlet or authorized service workshop. -
Page 8: Led Indicator

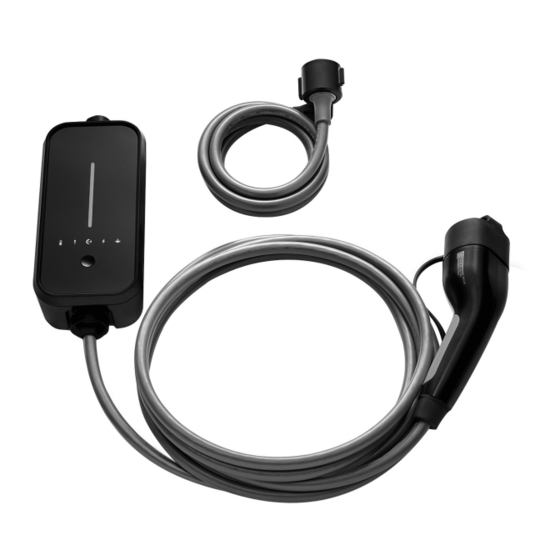

Operating Overview 1. Mains adapter cable 2. Charging status bar 3. Function button 4. Mains adapter 5. Mains interface with adapter cap 6. Function box (ICCB: In-Cable-Control-Box) 7. LED indicator 8. Vehicle connector LED indicator Temperature Internal error Current limitation Mains voltage Ground detection... -
Page 9: Function Button
Function button Flexible Fast Charger is not limited in delivery condition. Please check your electrical house installation ahead of usage and activate the power limitation (6A) via using the push button if needed (LED indicator "Current limitation" is illuminating orange during power limitation). - Page 10 Mains adapter cables for international available plugs Flexible Fast Charger can be used with various kinds of below mains adapters to charge wherever you are and as fast as possible. Please check the additional adapters list available as optional accessory for further information.
- Page 11 Plug Type N Type 166- 2549 (blue, 1 (blue, 1 (red, 3 (red, 3 (red, 3 (red, 3 phase) phase) phase) phase) phase) phase) 16A / 10A / 16A / 16A / 16A / 16A / 16A / 16A / rating / 3.6kW 2.3kW...
- Page 12 Change mains adapter cable Mains adapter cable can be changed to adapt the specific electrical environment. Disassemble the mains adapter cable: 1. Rotate the mains adapter cable cap for loosening the plug. 2. Pull the mains adapter cable away. Assemble the mains adapter cable: 1.
-
Page 13: Status Led Information
Status LED information Symbol LED Indicator Status Description All black Power off Charging status bar Blink orange Charger self-test Charging status bar Blue Charger standby/ready for charging Charging status bar Blink blue Charging Temperature Over temperature protection Internal error Control pilot error, output over current Internal error Blink red Self-test failed, relay fault... -
Page 14: Wall Mounting Installation
3 x wood screw 2 x Hex screw 3 x wood screw Wall mounting installation 1. Mount the bracket on Flexible Fast Charger with Hex screws 2. Mount the wall kit on the wall* with wood screws 3. Mount the cable holder to the wall* with... -
Page 15: Troubleshooting
1. Make sure the mains adapter is connected fully and the power input is within operating range of the unit. 2. Replug and power Flexible Fast Charger again or try another domestic outlet 3. If problem persists, contact your dealer or customer support. -
Page 16: Environmental Specifications
-40 °C to + 80 °C IP Protection class IP67 Disposal Flexible Fast Charger is an electronic device and must be disposed of separately from normal house wastes. Please have it disposed in compliance with the waste disposal and recycle local regulation. Certification/Compliance... - Page 17 01 29 5 A02 C10 10/2020 (V/Z) Draft...
